Vlinx Serial Servers ESP901E - Connection Mode; Serial Timeout; Flow Control

ESP901 and ESP902 Technical Data
Manual Documentation Number: ESP901-902-3704 Chapter 12 69
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Default Server
Settings
Server Name ESP901 or ESP902
Serial Number: xxxxxxxxx (printed on bottom of
unit)
Password: Blank
DHCP: Disable
IP Address: 192.168.0.1
Net Mask: 255.255.255.0
Gateway: 192.168.0.254
MAC Address: Fixed – see bottom label
Version&Date: current firmware version number &
date
Serial server port: 1
Baud Rate: 9600
Data//Stop: 8-1
Parity: None
Flow Control: None
TCP/UDP Protocol: ESP901 serial port: TCP
ESP902 Ports 1 & 2: TCP
Serial timeout: 0 seconds
TCP alive timeout: 0 minutes
Connection Mode: Server
Delimiter HEX 1: 00
Delimiter HEX 2: 00
Force transmit: 0 ms
TCP/UDP port: ESP901 serial port: 4000
ESP902 Port 1: 4000
ESP902 Port 2: 4001
Serial port mode: Console
Max connection: 1
Remote IP Address: 255.255.255.255
ESP901 and ESP902 Technical Data
70 Chapter 12 Manual Documentation Number: ESP901-902-3704
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

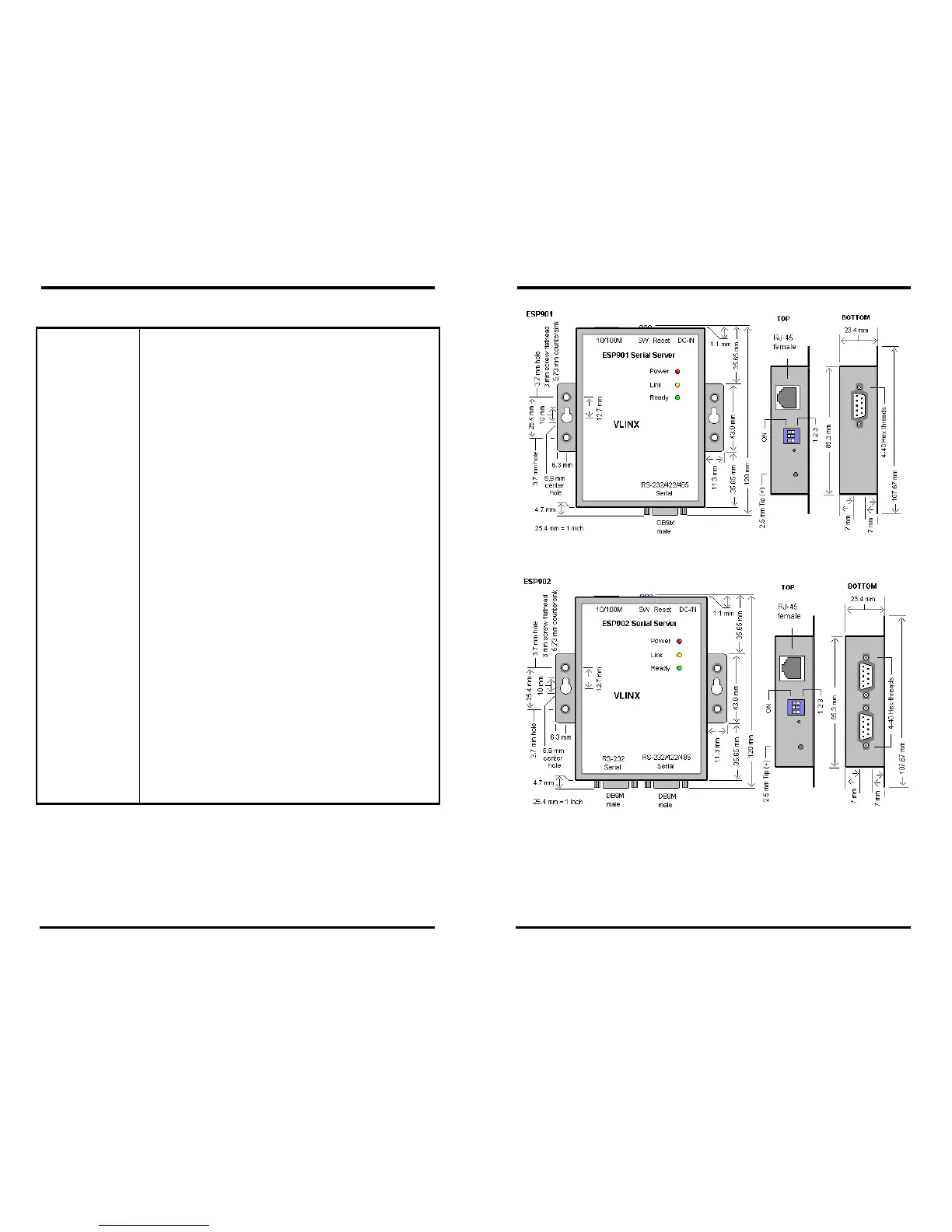

Figure 58. Dimensional Diagram of the ESP901
Figure 59. Dimensional Diagram of the ESP902
