VoiceAlert User Manual

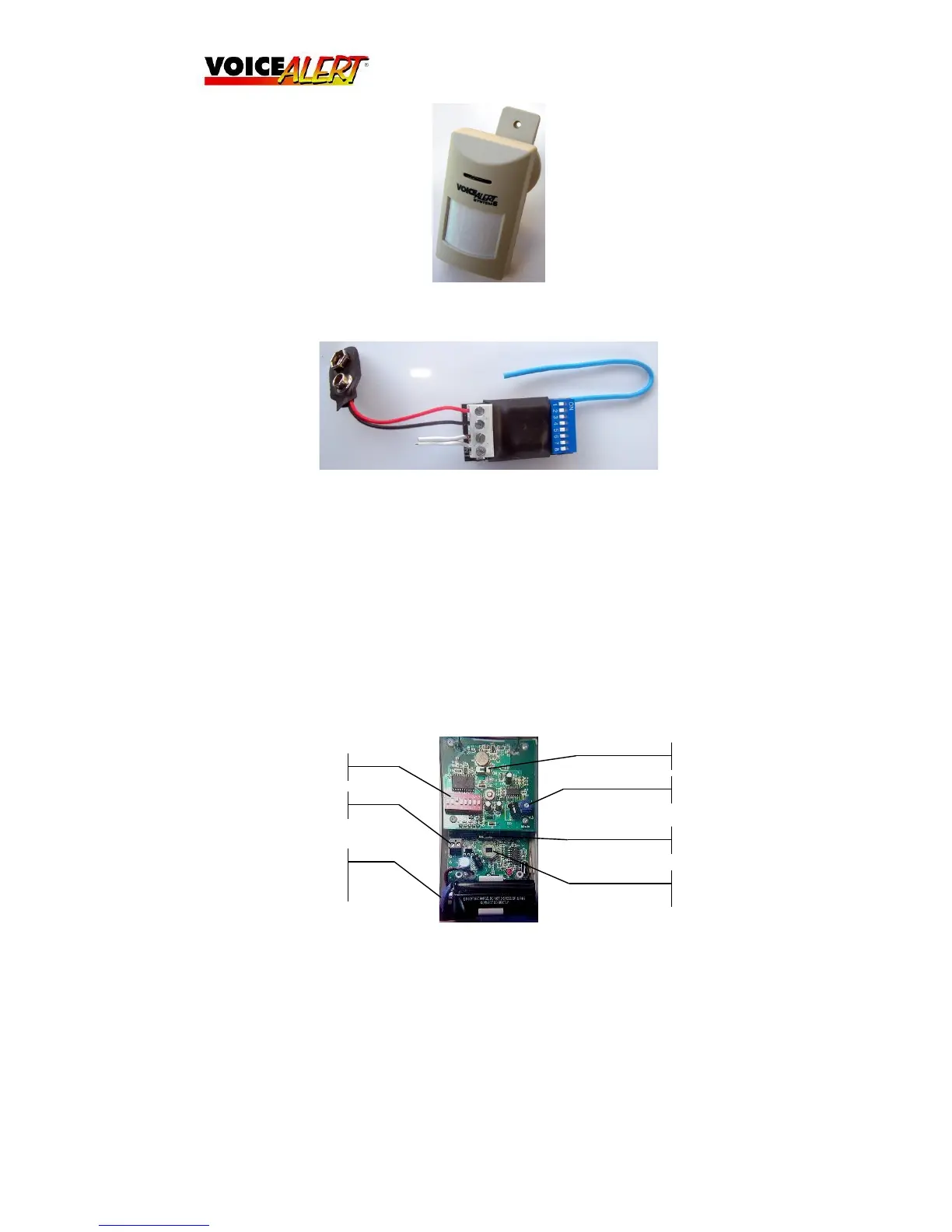

Figure 2: VA6000T wireless outdoor PIR sensor (VA-tx)
Figure 3: Mini Transmitter (m-TX)
2 Configuration of Base Receiver and Sensors
Please read the VoiceAlert System 6 Operating Instructions pamphlet
before continuing.
Follow the instructions below carefully to ensure optimal configuration of
your Sensors and Base Receiver.
2.1 Programming One Sensor per Zone
Figure 4: VA-tx Sensor internal layout
Make sure the Base Receiver is turned off using the on/off switch.
Remove the VA-tx Sensor cover and connect battery to the connector
(Figure 4). Make sure that the terminals of connector snap firmly onto
the battery’s terminals. Loose battery connectors can lead to low battery
messages and other looping issues (See Troubleshooting Chapter).
Set a unique code on the DIP switch (Figure 4). Make sure to record all
DIP codes for all Sensors as this will ensure proper management of Zones
