Volcano 20-200 - Parts, Accessories, and Warranty; Replacement Parts Identification

12
Replacement Parts - Volcano Collapsible Stove
7
8
9
11
12
16
13
14
15

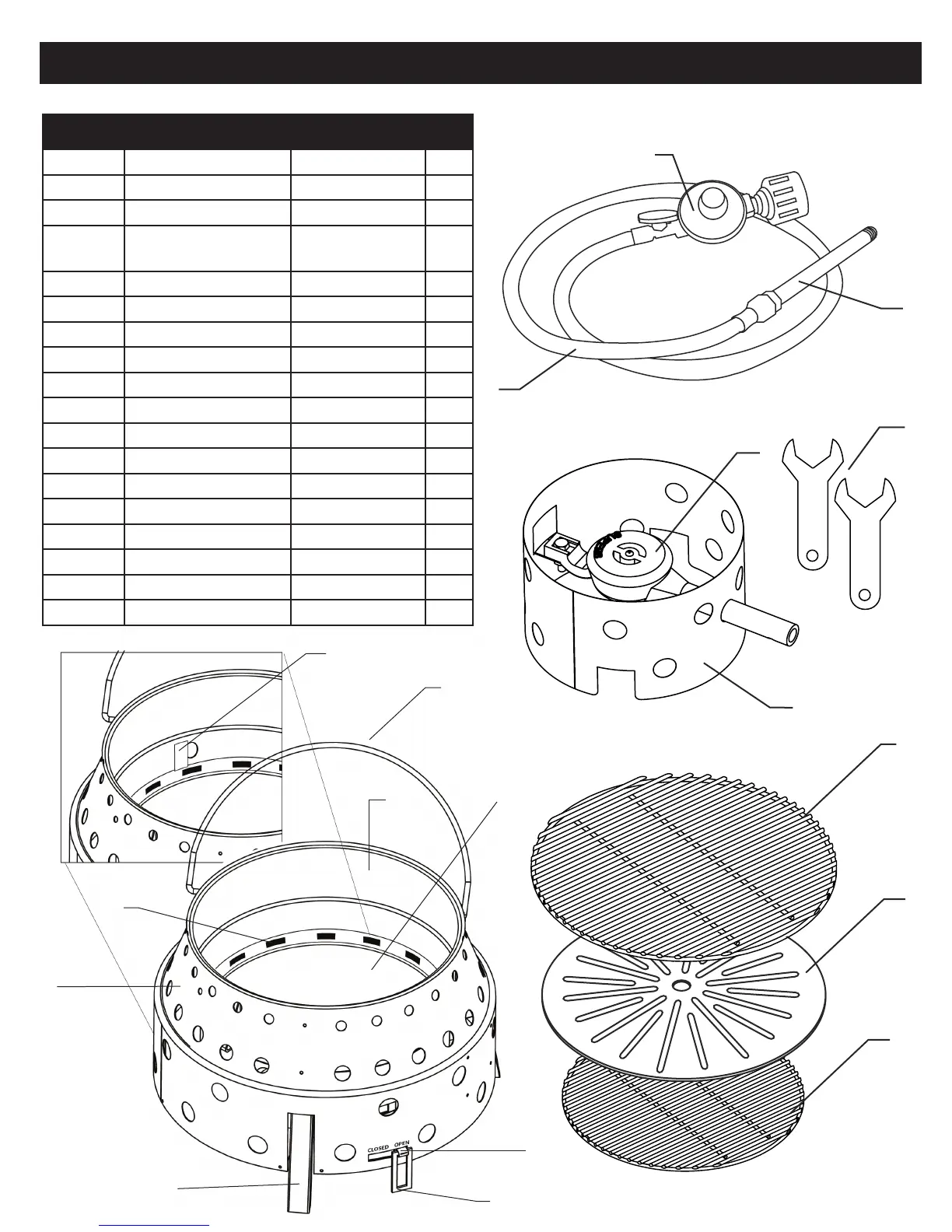

Parts List
ITEM NO. DESCRIPTION NOTE QTY
1 Inner Body 1
20 Outer Body 1
3 Leg 3
4 Vent Adjusting Bar Must be open for
propane use
1
5 Vent Adjusting Ring 1
6 Bail Handle 1
7 Top Grill 1
8 Heat Deector Plate 1
9 Bottom Grate 1
10 Bottom Pan 1
11 Burner Cradle 1
12 Propane Burner 1
13 Regulator 1
14 Hose 1
15 Orice Tube 1
16 Wrenches 2
17 Propane Safety Tab 1
18 Air Vent Holes 1
1 10
6
17
18
2
3
4
5
