4.28 Haldex Clutch, Changing Oil
Note
♦
On vehicles equipped with a Haldex clutch, the drain and seal‐
ing screws of both systems get interchanged due to the inte‐
grated housing. This results in avoidable mistakes in mainte‐
nance and servicing, which can result in the Haldex clutch or
the axle drive failing.
♦

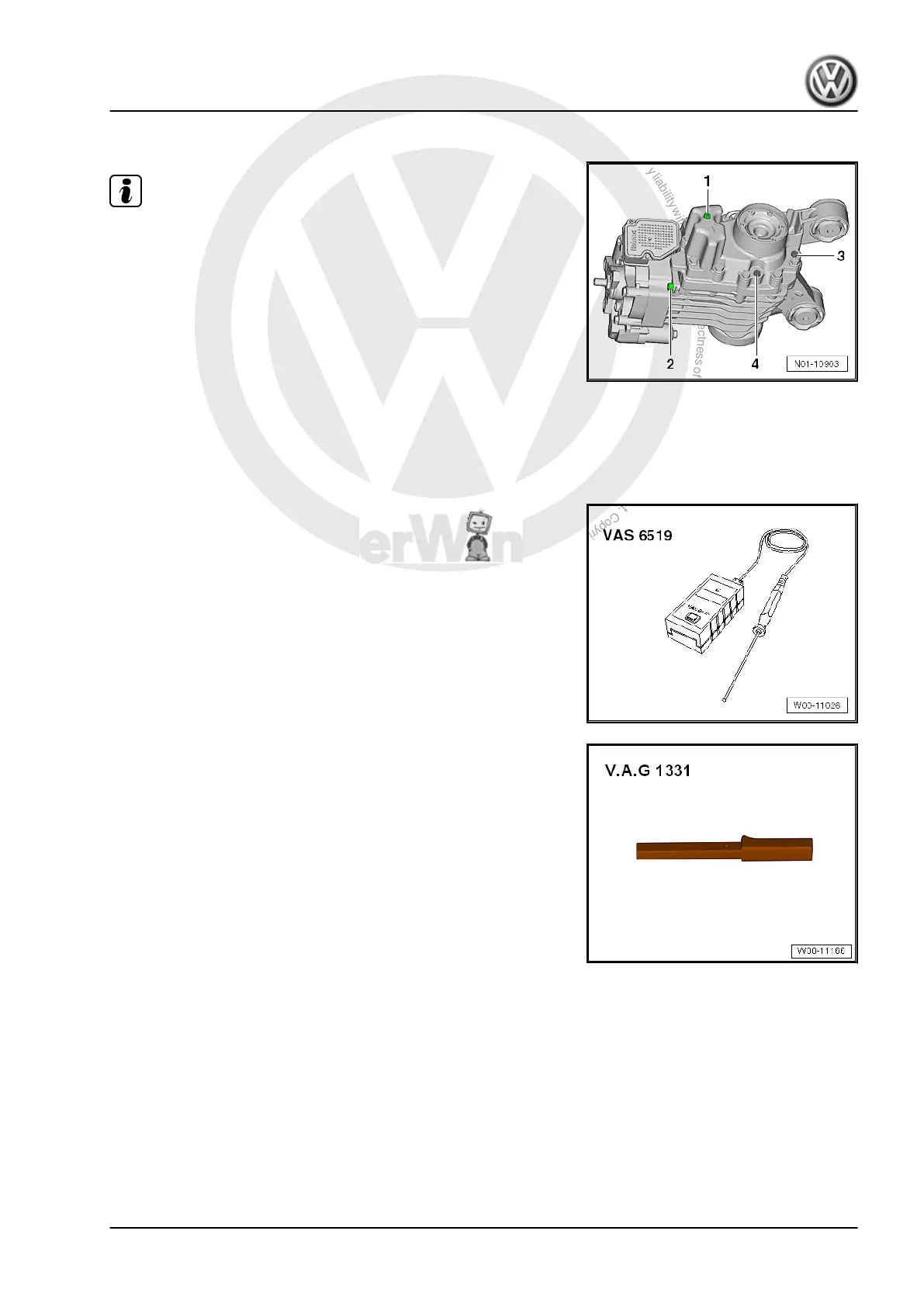

The Haldex clutch and axle drive are a single unit with sepa‐
rate oil housings.
♦
-1- Plug for filler hole for the Haldex oil.
♦
-2- Drain plug for the Haldex oil.
♦
-3- Plug for the gear oil filler hole.
♦
-4- Gear oil drain plug.
Special tools and workshop equipment required
♦ Digital Thermometer - VAS6519-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 99
