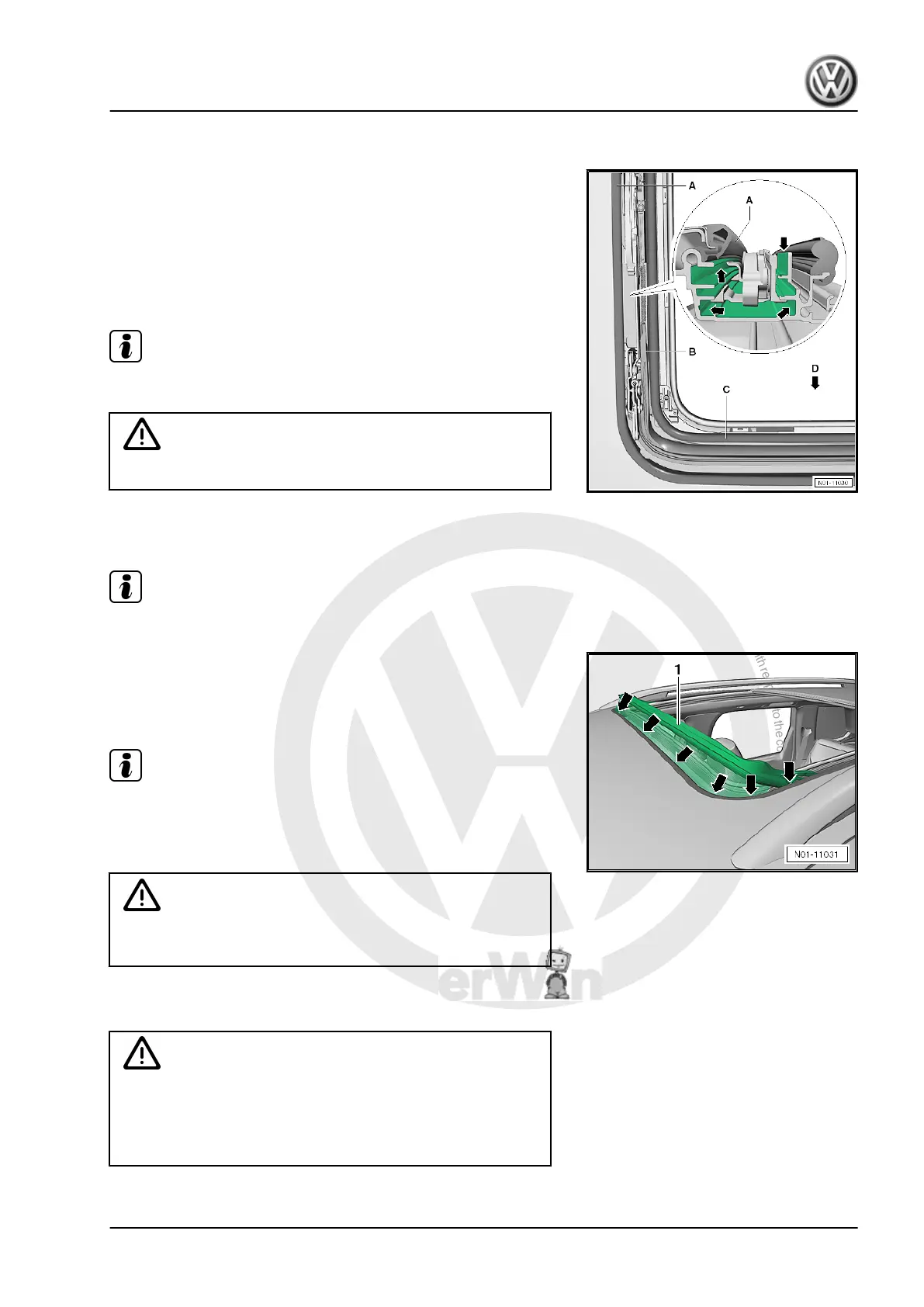

– Thinly coat grease in the sliding area of the entire guide rail
-arrows- with a brush.
– After lubricating the Panorama sliding sunroof open and close
it and then remove the excess lubricant.
-A- outer seal
-B- wind deflector
-C- inner seal
-D- The arrow points in the drive direction.
Note
Make sure no other components are contaminated.
Caution
Correct any malfunctions (repair procedure).
4.49.2 Wind Deflector, Cleaning
Note
Only required for a wind deflector with a net.
– Check the wind deflector -1- for dirt. Pay special attention to
dirt build-up at the bottom of the wind deflector -arrows-.
– Remove any dirt deposits using, for example, the Wet And Dry
Vacuum - VAS5128- .
Note
♦
To remove stuck insects and particles from the net and from
the air deflector frame, use a sponge and soapy water.
♦
Mixture ratio: 3 drops of soap to 1 liter of water
Caution
No use any standard insect remover or other solvent as these
products were not tested and approved.
– Then remove loosen insects and particles with a vacuum and
a suitable vacuum tip.
Caution
Use a nozzle that is made for the wind deflector so that the net
does not get damaged.
Be careful not to let any dirt fall into the vehicle interior while
performing this work.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
4. Procedure Descriptions 145
