Volkswagen Passat 1996 User Manual

45-21
19 - ABS Hydraulic unit
Connections (arrow)
show pipe work from
tandem master
cylinder to ABS
hydraulic unit
Removing and
installing Page 45-
23
20 - ABS/EDL Hydraulic
unit
Removing and
installing Page 45-
23
21 - Brake line connection
Hydraulic unit to front
right brake caliper
Thread connection:
M10 x 1, 15 Nm (11 ft
lb)
22 - Torx bolts (T 25)
23 - Brake line connection
Hydraulic unit to rear
left wheel cylinder
Thread connection:
M10 x 1, 15Nm (11 ft
lb)
Page
4
of
10

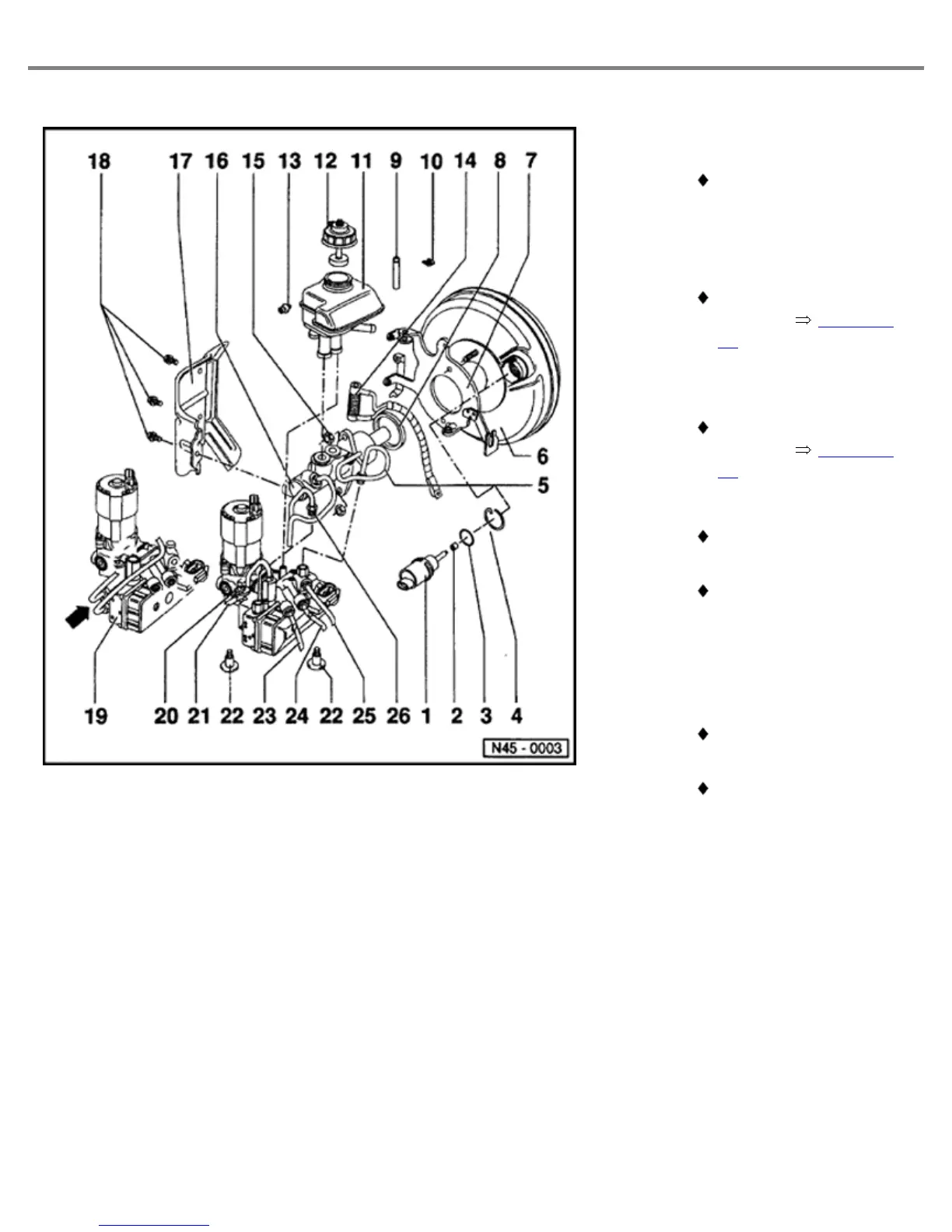

Assembly overview
-
hydraulic unit, brake servo/brake master cylinder
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.45.4
