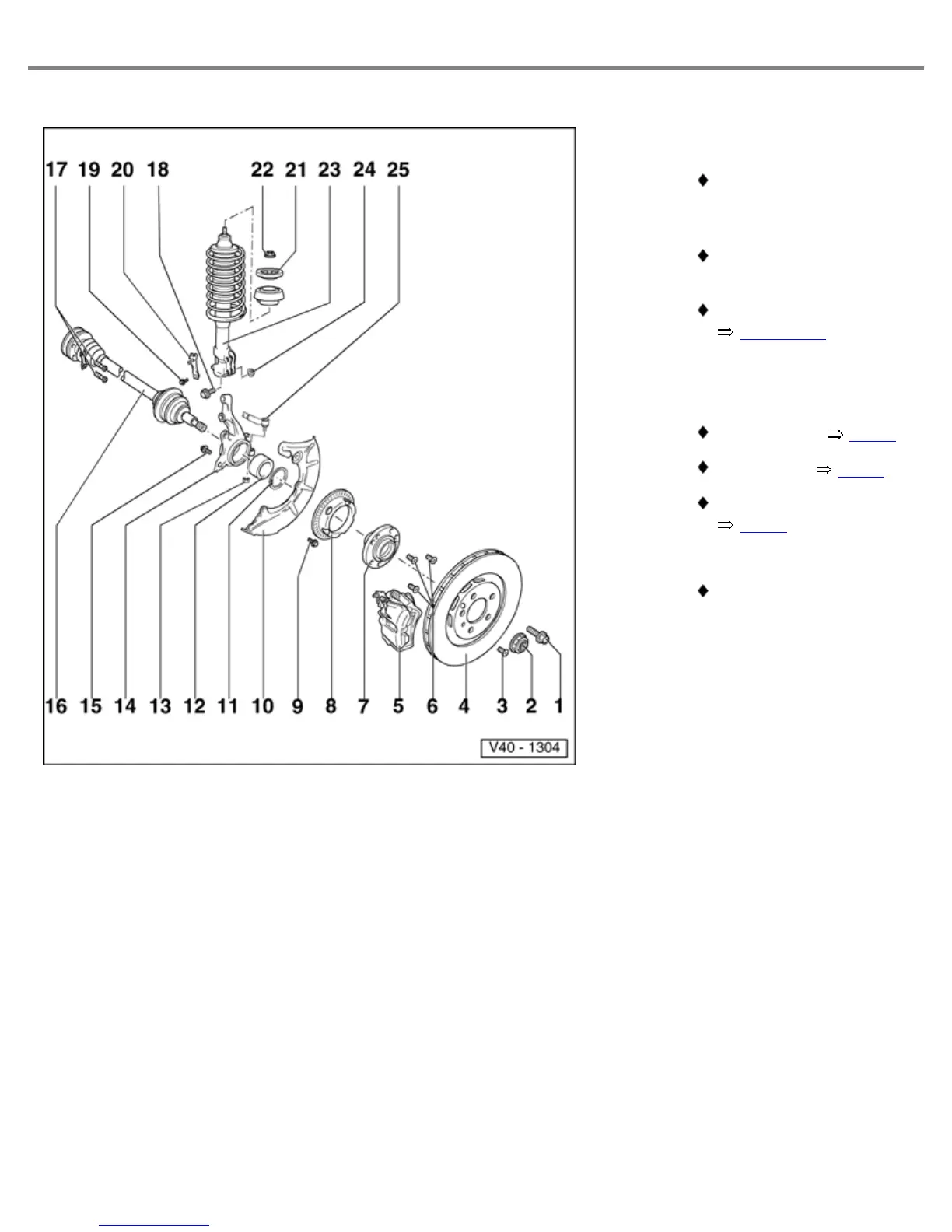

5 - Brake caliper
Do not loosen brake
hose when working on
front suspension
Hang up with wire or
similar
Replacing brake pads
Page 46-6
6 - Countersunk screw
7 - Hub
Pressing out Fig. 2
Pressing in Fig. 6
Pulling off inner race
Fig. 3
8 - Speed sensor rotor
Only for vehicles with
ABS
9 - Hex bolt, 10 Nm (7 ft lb)
10 - Splash plate
Page
37
of
82
Front Wheel Suspension, Shafts and Axle
