Power steering gear, disassembling
Note:
Use jaw covers, check jaw covers for contamination;
e.g. metal chips or the like
- Tie rods, removing - see tie rod, removing and
installing (TRW and ZF power steering), Page
48-34
- Close hose connections on power steering gear if
not already done

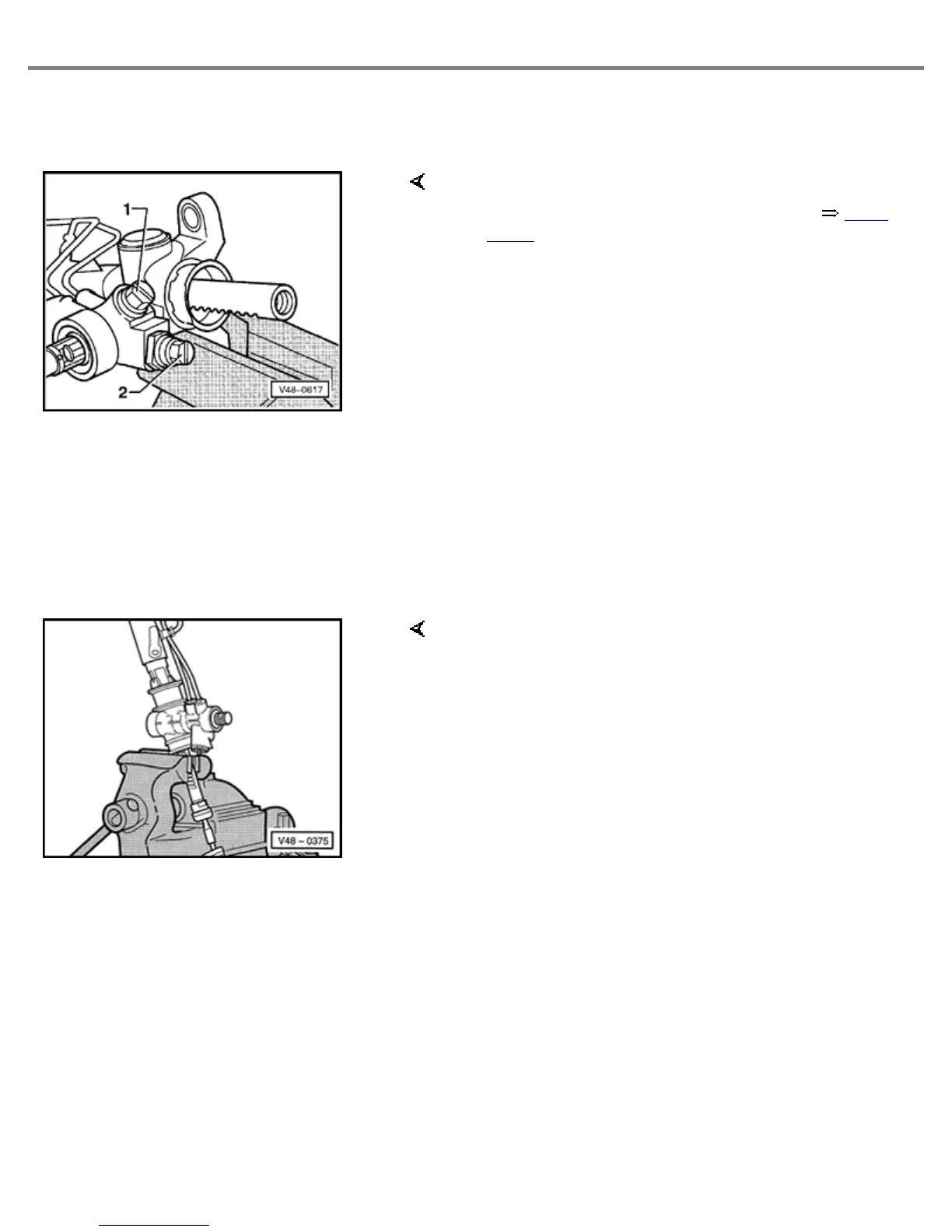

1 - Plastic locking screw
2 - Plastic locking screw
- Clean outside of power steering gear
- Open hose clamp and push back boot
- Clamp steering gear with toothed rod in vise and
remove tie rod
- Remove tie rod
- Take steering gear out of vise, screw on bracket
3315/1 and tighten bracket in vise
- Remove cover
