4.30 Engine
cover panel “top”: removing and
installing
Engine cover panel, 2.0 l TSI engines: removing and installing
⇒ page 78
Engine cover panel, common rail diesel engines: removing and
installing ⇒ page 78

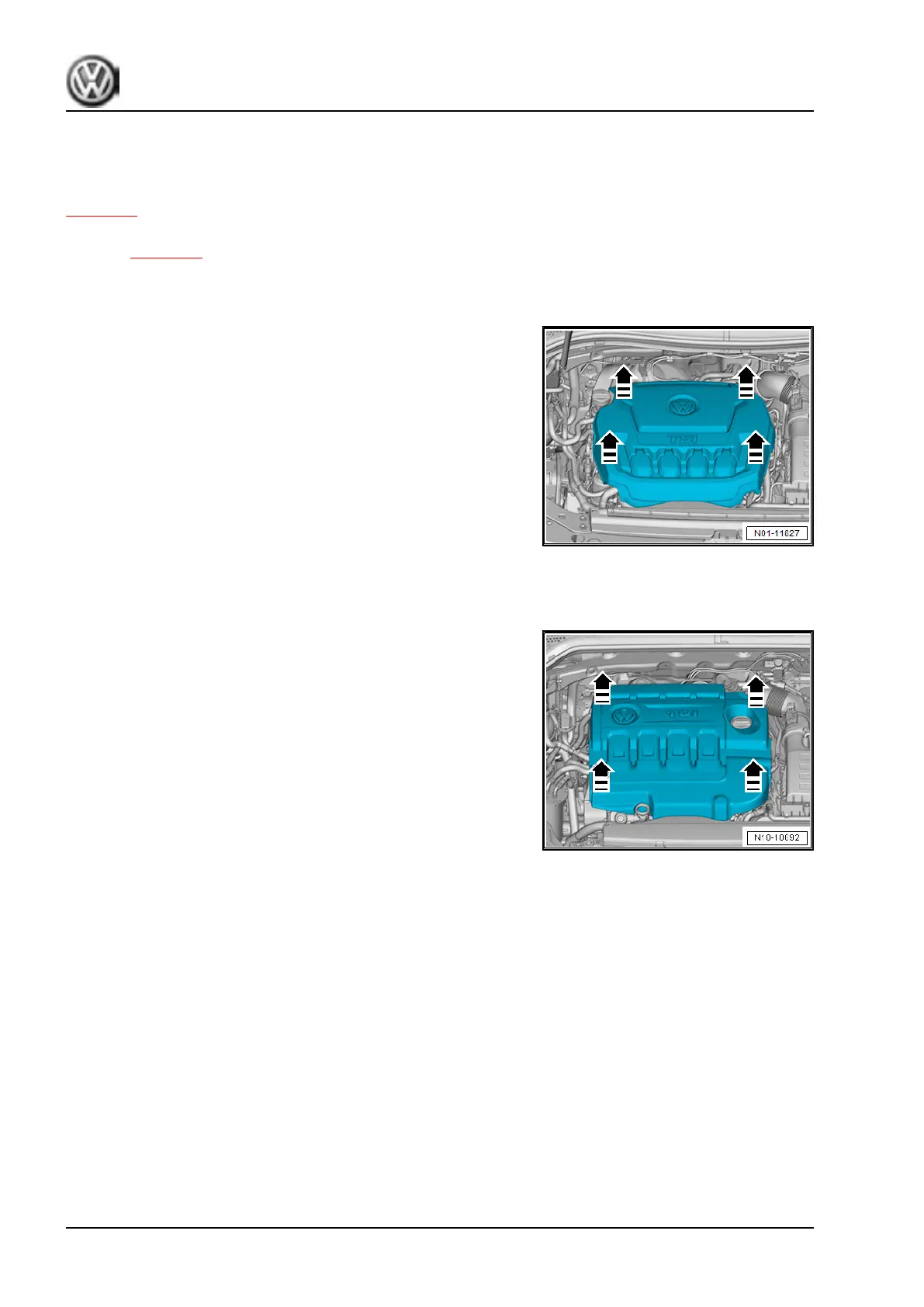

4.30.1 Engine cover panel, 2.0 l TSI engines:
removing and installing
Removing
– Carefully pull engine cover panel off retaining pins one after
the other -arrows-. Do not pull off motor cover panel abruptly
or only on one side.
Installing
– To
prevent damage, do not strike engine cover panel with the
fist or a tool.
– Position engine cover panel, paying attention to oil filler neck
and dipstick.
– Press engine cover panel into rubber grommets first on left
side and then on right side.
4.30.2 Engine cover panel, common rail diesel
engines: removing and installing
Removing
– Carefully pull engine cover panel off retaining pins one after
the other -arrows-. Do not pull off motor cover panel abruptly
or only on one side.
Installing
– To
prevent damage, do not strike engine cover panel with the
fist or a tool.
– Position engine cover panel, paying attention to oil filler neck
and dipstick.
– Press engine cover panel into rubber grommets first on left
side and then on right side.
4.31 Engine compartment cover (noise insu‐
lation)
“bottom”: removing and installing
Procedure
The procedure of removing the engine cover panel -bottom-
(noise insulation) can be found in Workshop Manual under:
⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation;
Assembly overview - noise insulation
4.32 Engine oil level: checking
Note the following:
– After
shutting off engine, wait at least 3 minutes so that the oil
can flow back into the sump.
– Pull out dipstick, wipe with a clean cloth and push dipstick in
again to limit stop.
– Pull dipstick out again and read oil level.
Tiguan 2016 ➤ , Tiguan RUS 2017 ➤
Maintenance - Edition 08.2017
78 4. Descriptions of work:
