3.1.2 Lifting
points for lifting platform and trol‐
ley jack
Caution
♦ If the support plates or lifting arms of the lifting platform
are improperly seated the surrounding parts of the vehicle
may be damaged.
♦ Screw support plates of the lifting platform out far enough
to
ensure sufficient clearance between lifting arm and side
member. Use only the side member reinforcement as a
support point for the support plates of the lifting platform.

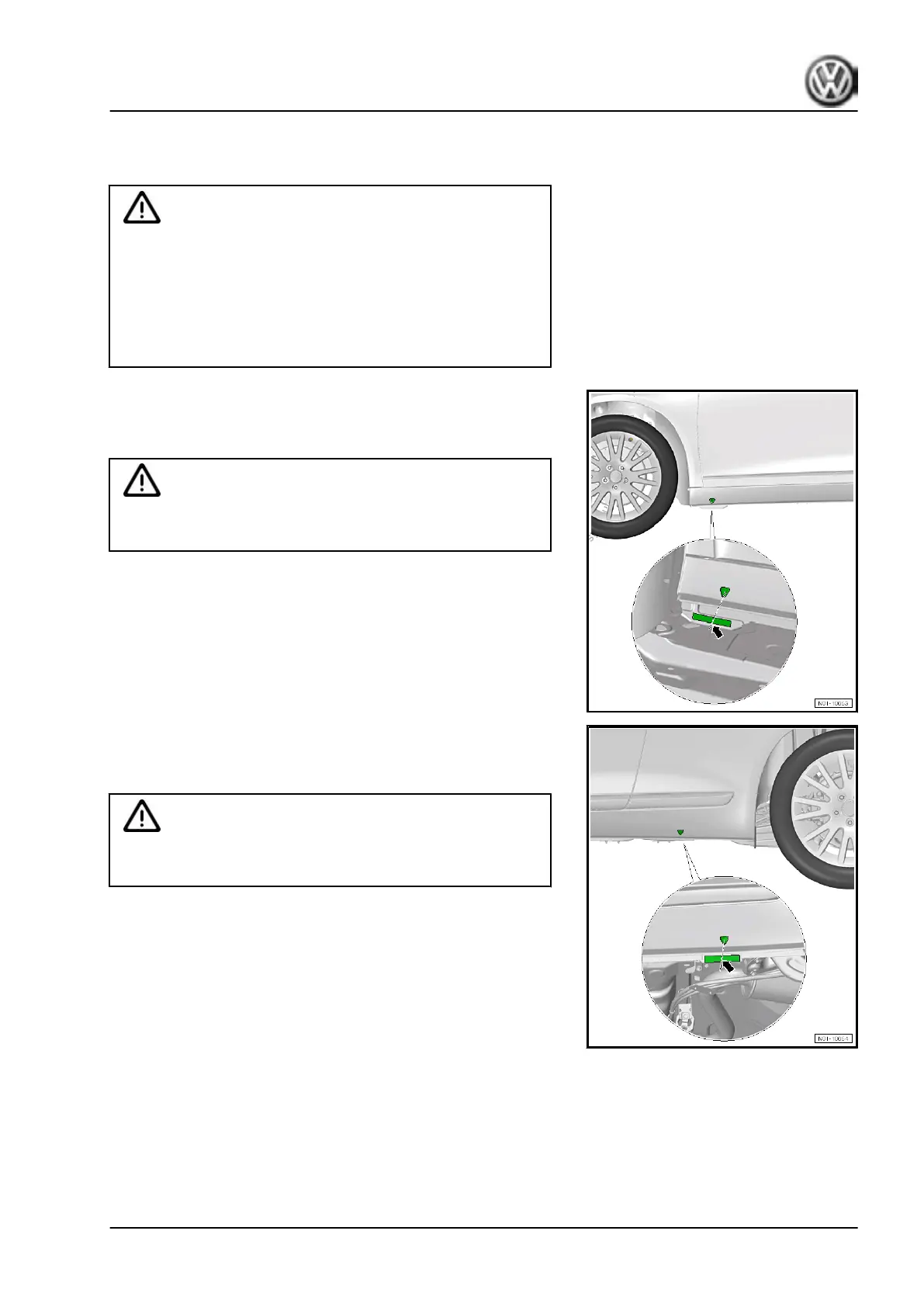

Front lifting point
– Position
support plate in area of side member marking (at ver‐
tical reinforcement of floor pan -arrow-).
WARNING
Ensure that side member reinforcement seats centrally on
support plate of hoist mounting.
Rear lifting point
– Position
support plate in area of side member marking at ver‐
tical reinforcement of floor pan -arrow-.
WARNING
Ensure that side member reinforcement seats centrally on
support plate of hoist mounting.
3.2 Entries in service schedule
If a component is changed which has a change interval prescribed
by
the manufacturer, e.g. the toothed belt, the new change inter‐
val begins at the time the component is changed.
• Therefore it is very important, every time a component is
changed, to document this in the service schedule.
