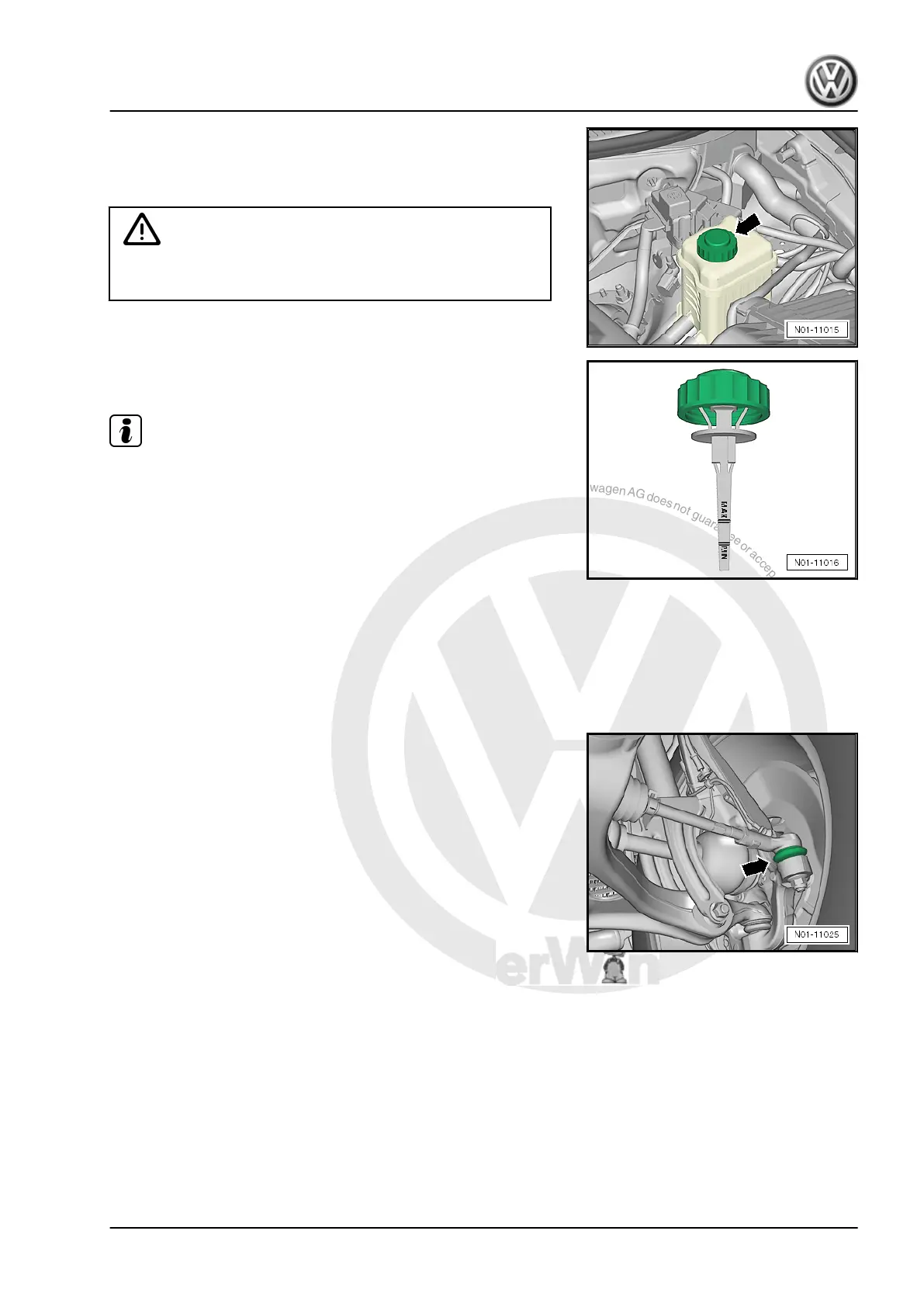

– Remove reservoir cap with built-in dipstick -arrow-.
– Wipe off dipstick using a clean cloth.
– Screw cap on hand tight and unscrew again.
Caution
The cap must be fully screwed on in order to obtain an accurate
oil level.
– Check fluid level: The fluid level must be between MIN. and
MAX. marking.
Note
♦
If fluid level is above MAX. marking, fluid must be extracted.
♦
If fluid level is below MIN. marking, then hydraulic system must
be checked for leaks (repair measure). It is not sufficient mere‐
ly to top up with oil. If the hydraulic system is not leaking,
replenish oil „G 002 000“.
– Screw cap on hand tight.
4.44 Track rod ends: Check clearance, se‐
curity and boots
Carry out the following procedure:
– With vehicle raised (wheels hanging free), check clearance by
moving track rods and wheels.
– Check mountings.
– Check that boots -arrow- are not damaged and are seated
correctly.
4.45 Dust and pollen filter: Clean housing and
renew filter element
Procedure
»Heating, ventilation, air conditioning system« ⇒ Heating, venti‐
lation, air conditioning system; Rep. gr. 80 ; Removing and
installing dust and pollen filter with activated charcoal filter insert
»Removing and installing dust and pollen filter with activated
charcoal filter insert«
Touareg 2010 ➤
Maintenance - Edition 11.2011
4. Descriptions of work 113
