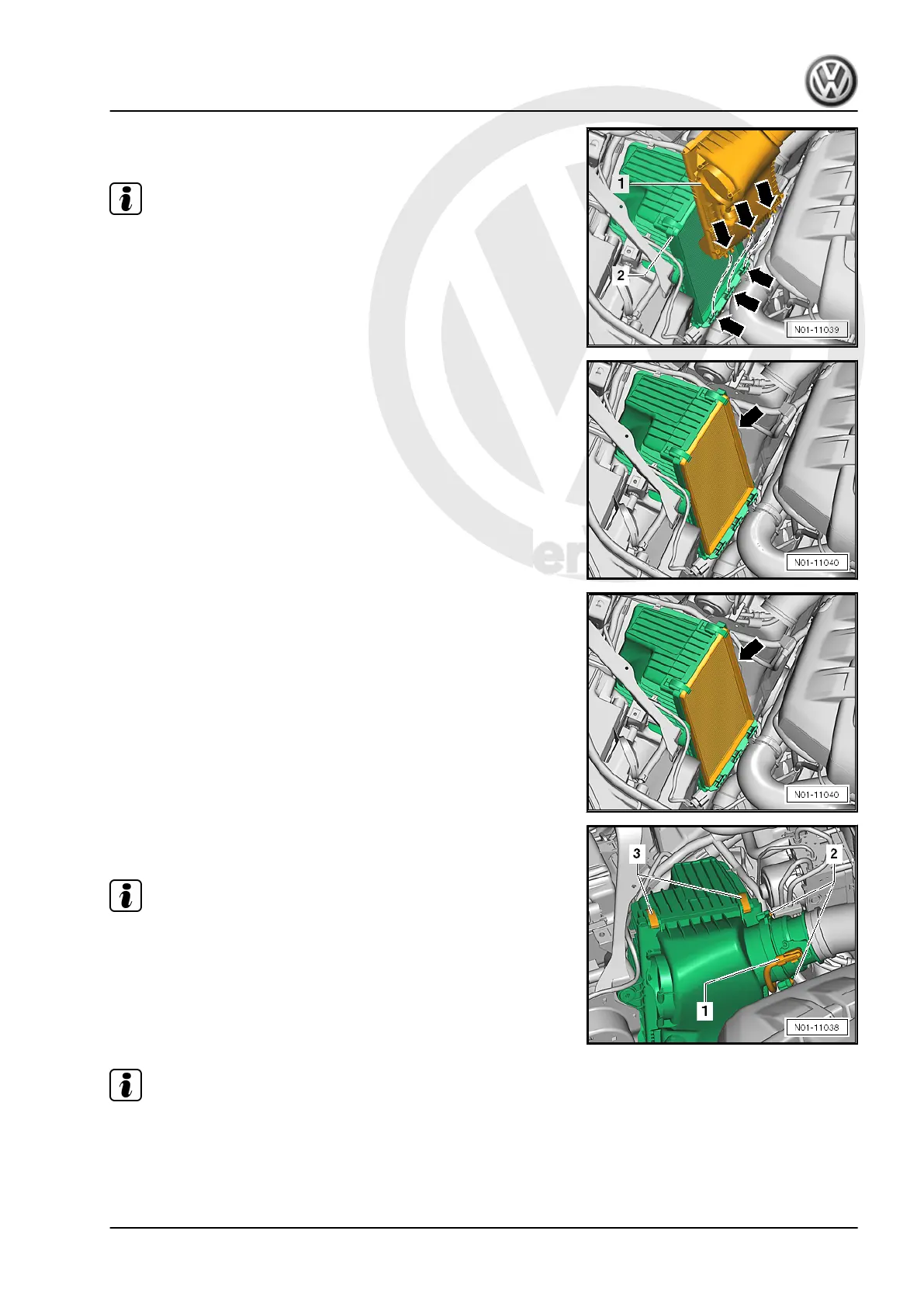

– Press air filter upper part -1- off lower part -2- and pull upwards
out of openings for retaining lugs -arrows-.
Note
Observe installation position of air filter element from air filter!
– Remove air filter element -arrow-.
– If necessary, blow out air filter housing with compressed air
and install new air filter element.
Installing
Perform the following procedure:
– Insert air filter element -arrow-.
– Insert air filter upper part into openings for retaining lugs and
secure again with spring retainers -3-.
Note
♦
Ensure that sealing surfaces of air filter housing are seated
properly.
♦
Do not pinch cables or lines.
– Insert bolts of air mass meter -2- and tighten to 3 Nm.
– Fit connector -1- back on air mass meter.
Note
Ensure wiring connector is securely seated.
– Secure coolant line on air filter housing and on connecting
pipe.
Touareg 2010 ➤
Maintenance - Edition 11.2011
4. Descriptions of work 55
