Brake system
For the braking system of the Transporter 2004,
the MK 25 design from Conti Teves was installed.
The system features anti-lock braking system
(ABS), electronic differential lock (EDL), traction
control (TCS) and electronic brake force distribu-
tion (EBD) as standard.
Vehicles designed as people carriers can also be
equipped optionally with the electronic stabilisa-
tion programme (ESP).
Integrated in the ESP is an active brake servo
and a pneumatic brake assist system (travel sen-
sor in vacuum chamber).
Brake servo
The brake servo is of the tandem type in 9“ or 10“
versions. Conti Teves is the manufacturer of this
equipment.

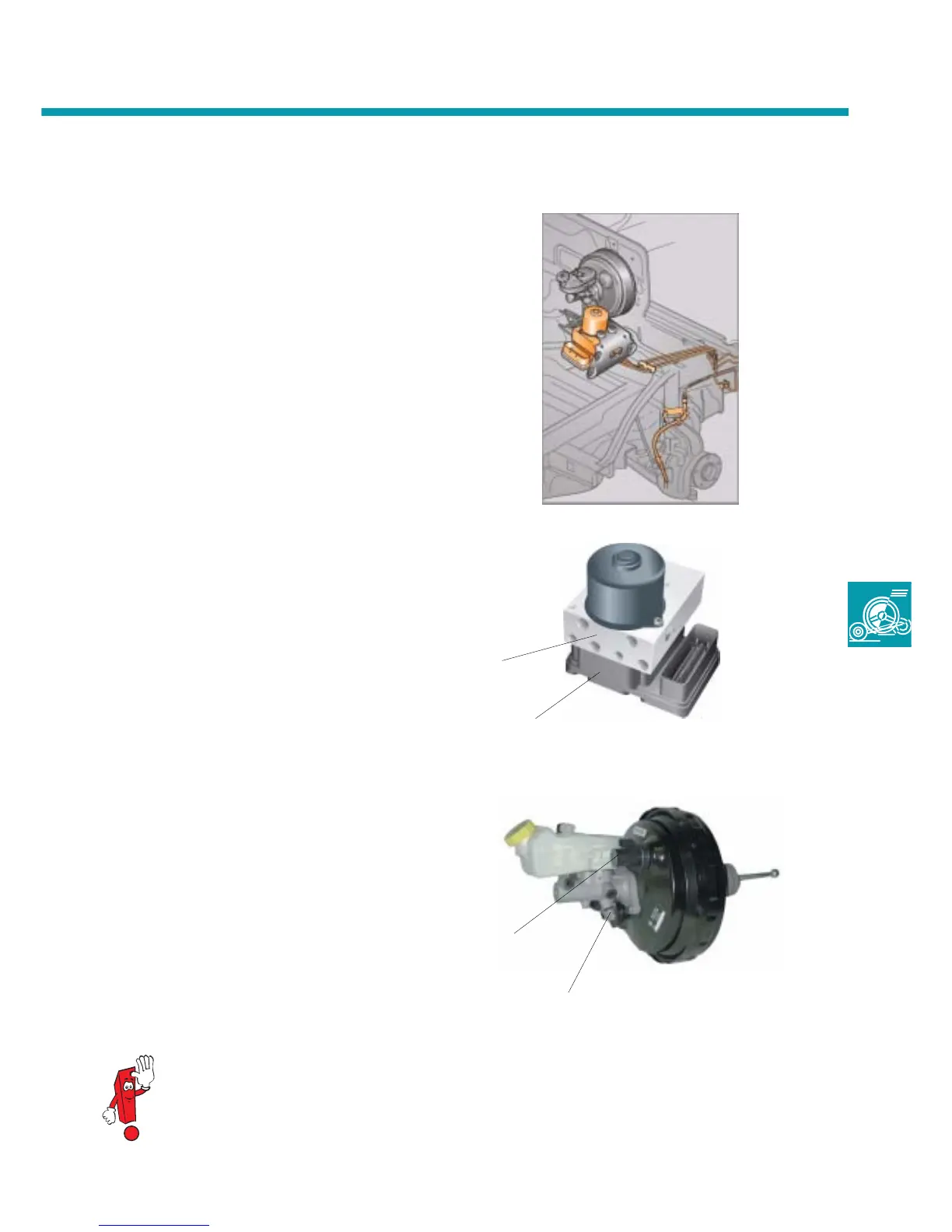

310_068
To understand the basics of the design and function of the brake servo, refer to self-study
programme 276 "The Phaeton - Automatic proximity control".
310_073
Travel sensor
Pressure sensor
310_138
Control unit
Hydraulic unit
