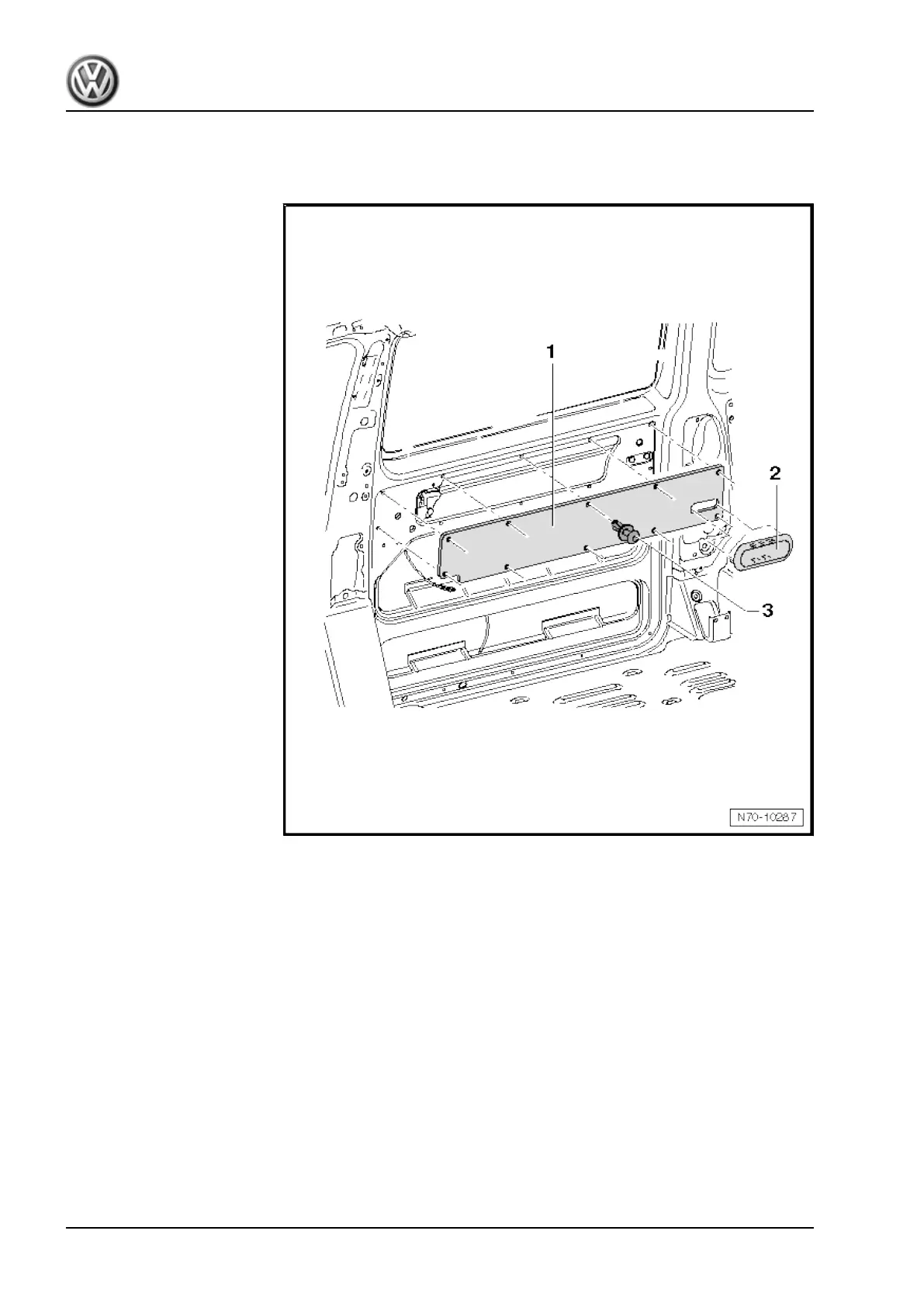

2.3.5 Removing and installing rear door trim, sliding door, Transporter, bottom of

sliding door, sliding door with short hardboard-type trim

Removing

– Use a hexagon socket to unscrew clamping pin from spreader

rivets -3-.

– Unclip spreader rivets -3-.

– Remove trim -1-.

Installing

Installation is carried out in reverse order.

Transporter 2016 ➤

General body repairs, interior - Edition 03.2020

194 Rep. gr.70 - Trim, insulation
