4.10 Removing and installing upper trim of rear bench seat

Removing

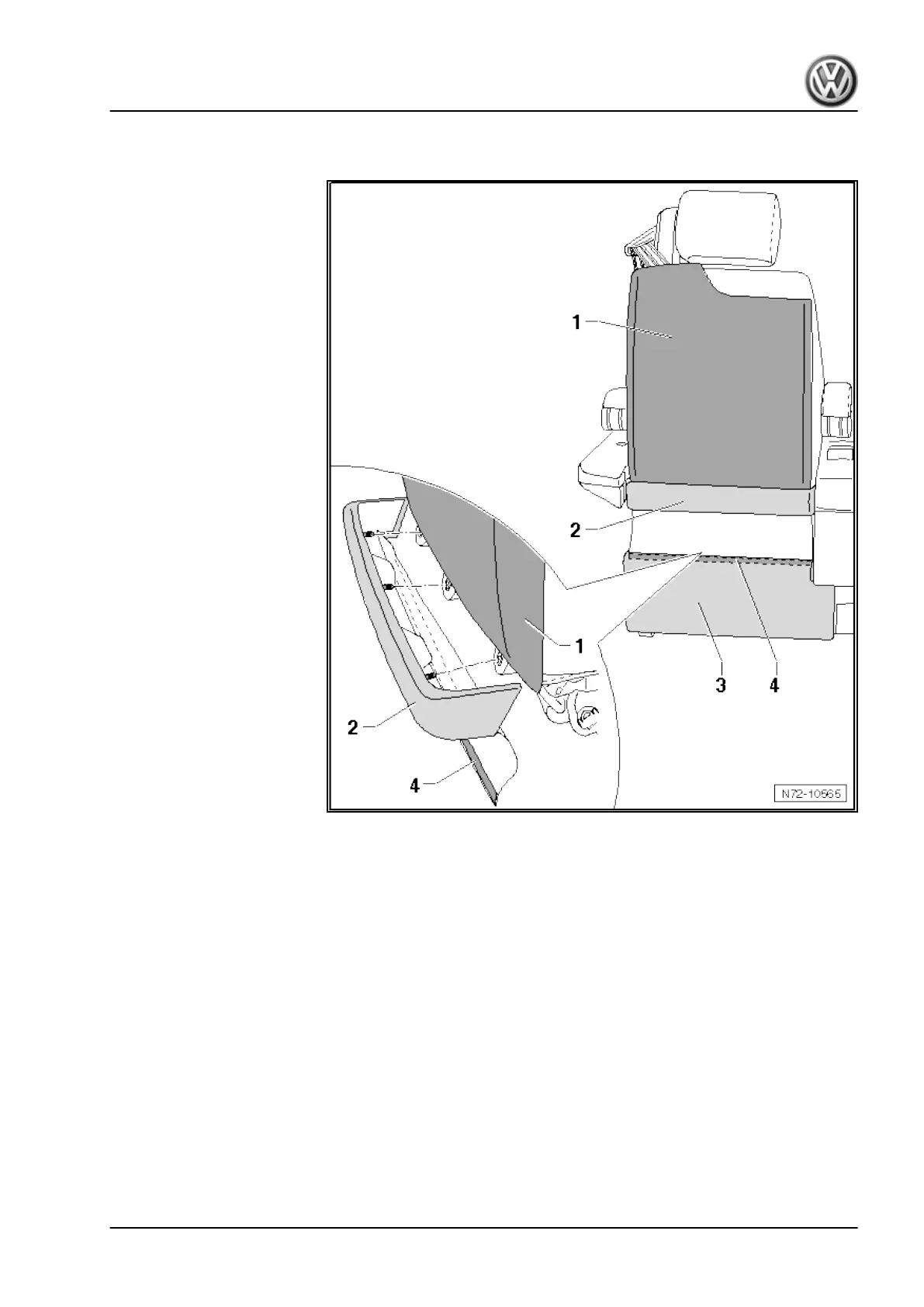

– Remove Velcro tape -4- from lower trim of rear bench seat

-3-.

– Release clips from catches on seat -1- using removal wedge

- 3409- .

– Remove upper trim of rear bench seat -2- from seat -1-.

Installing

Install in reverse order of removal, observing the following:

– Before installing, check all fasteners for damage and renew as

necessary.

Transporter 2016 ➤

General body repairs, interior - Edition 03.2020

4. Rear seats, Business 415
