Removing
Note
Removal and installation is described for the front passenger side. Follow same instructions for the driver side
as appropriate.
– If fitted, remove coat hook.
– Remove grab handle on B-pillar.
– Remove belt end fitting and belt guide fitting from front seat
belt.

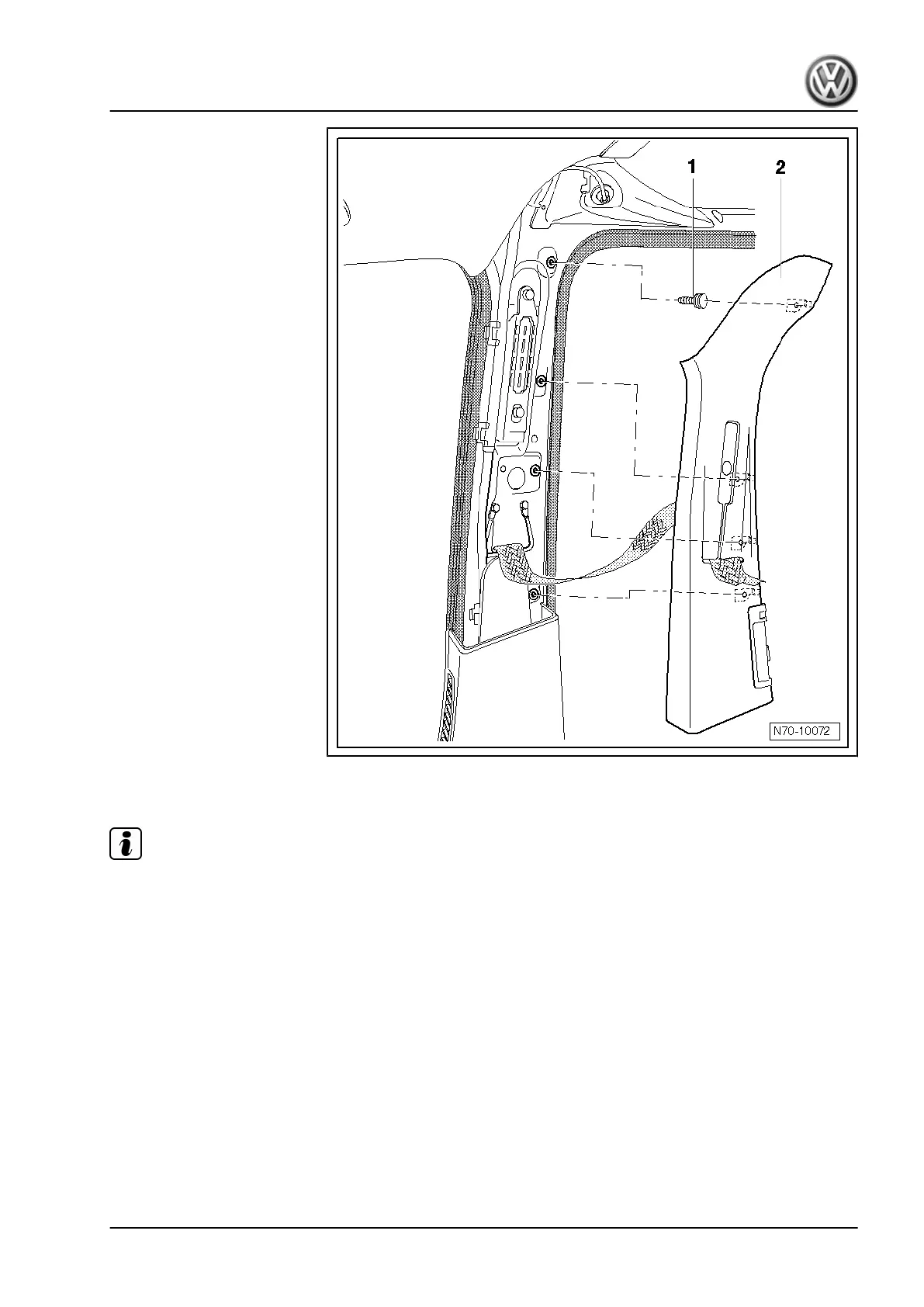

– Using wedge - T10039/1- , lever B-pillar trim -2- out of mount‐
ing in body, and pull out door seal beading.
– Pull seat belt through opening in B-pillar trim -2-.
Installing
Install in reverse order of removal, observing the following:
– Before installing, check all fasteners for damage and renew if
necessary.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
5. Interior trims 235
