– Switch off ignition and all electrical consumers.
– Withdraw ignition key.

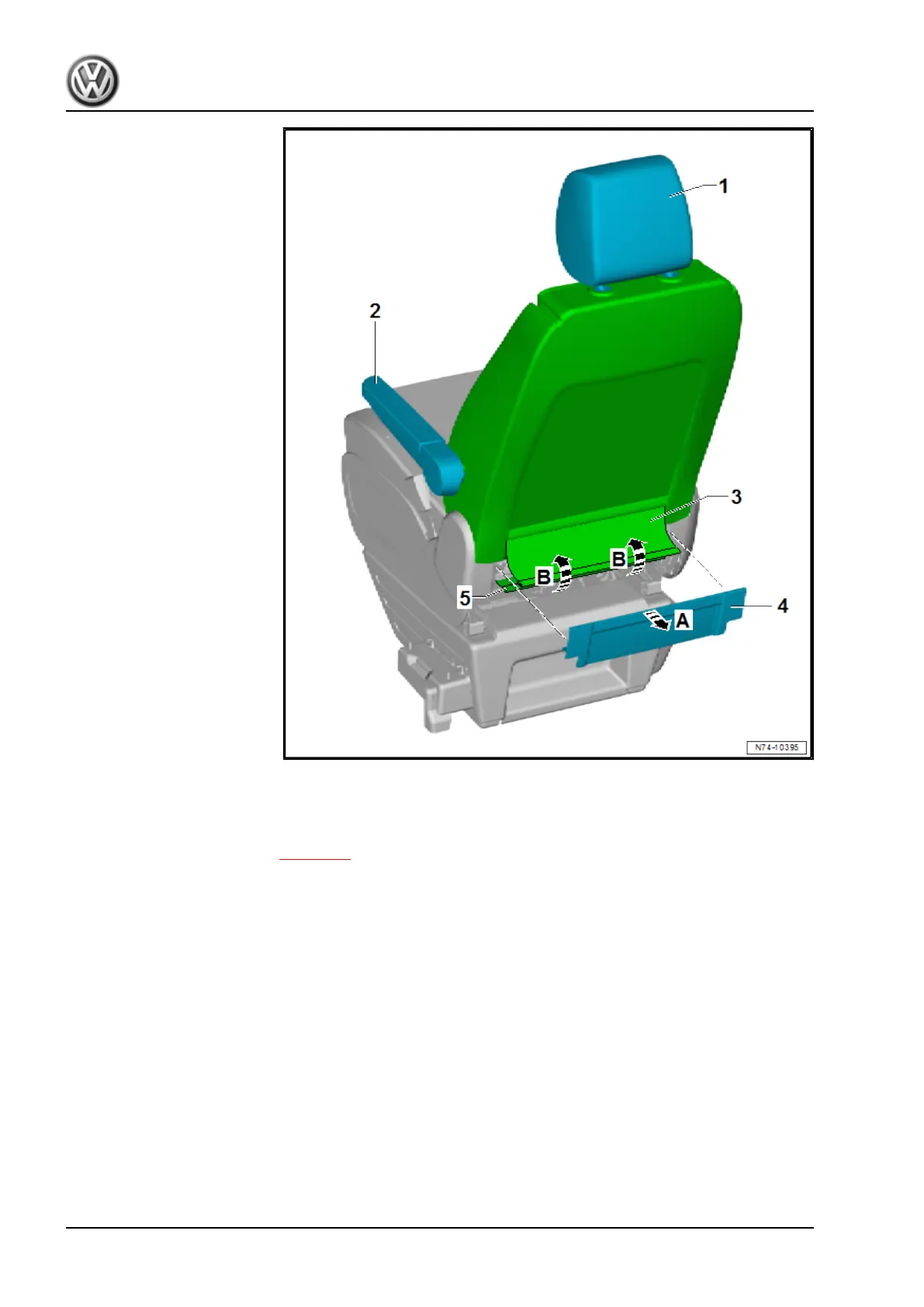

– If fitted, remove armrest -2- ⇒ page 66 .
– Remove head restraint -1-.
– If present, remove screws on left and right from cover -4-.
– Unclip cover -4- in -direction of arrow A-.
– If fitted, disconnect connector.
– Open clamping strip on backrest cover -3- from mounting -5-
in direction of -arrow B- using front end hook - 3370- .
– Unhook tensioning wires from backrest frame.
– Roll backrest cover -3- upwards at front and rear.
– Guide cover together with padding -3- over head restraint
locking mechanism.
– Remove cover together with padding -3- upwards from back‐
rest frame.
Installing
Install in reverse order of removal, observing the following:
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
446 Rep. gr.74 - Seat - padding, covers
