Removing
Note

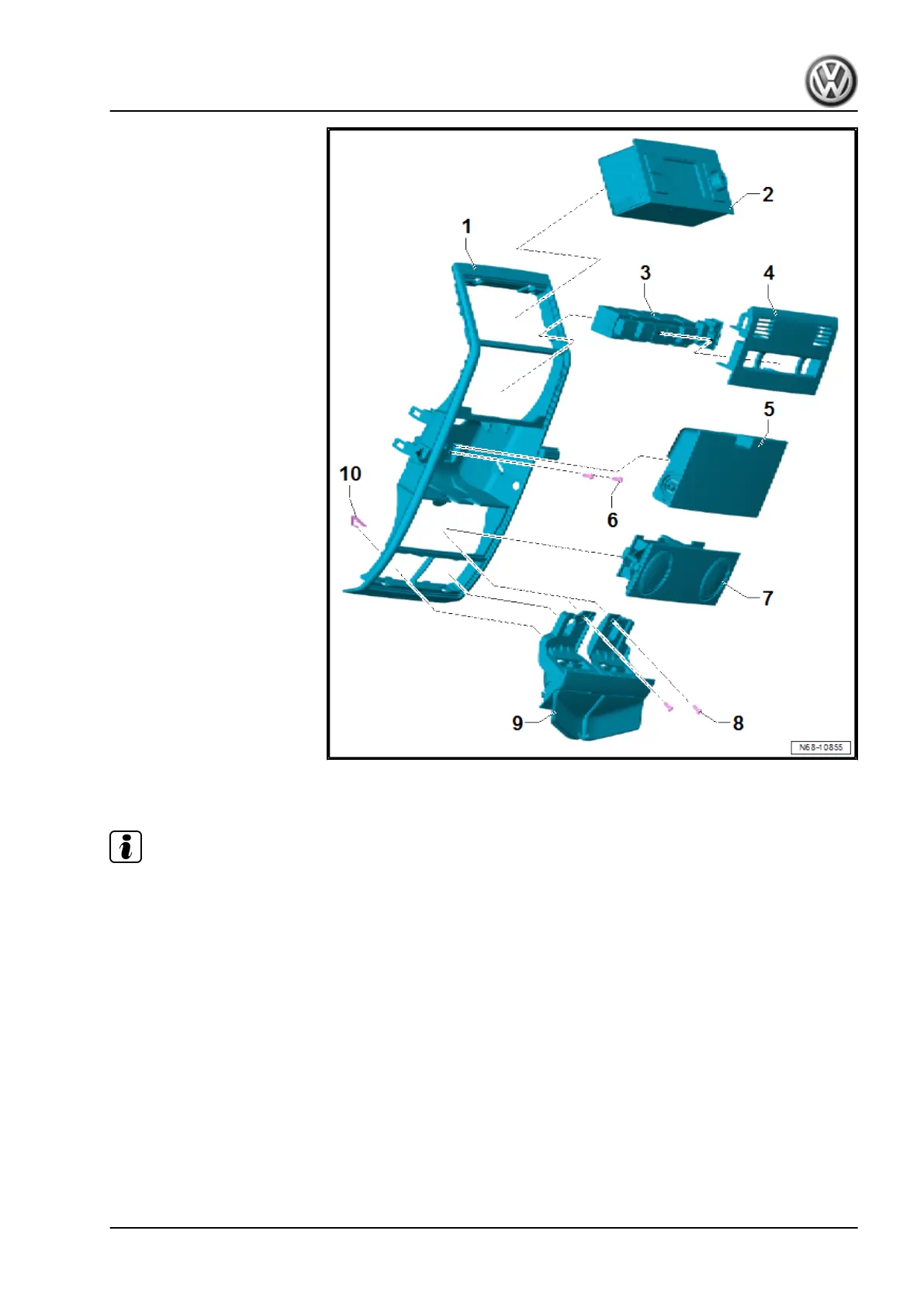

Depending on equipment, the illustration may differ from the actual scenario.
– Switch off ignition.
– Unclip storage compartment -5-.
– Remove front interior light - WX1- -7- ⇒ Electrical system;
Rep. gr. 96 ; Lights; Overview of fitting locations - lights in roof
trim .
– Unscrew bolts -6-.
– Unscrew bolts -8-.
– Starting at front, pull roof console -1- downwards out of moul‐
ded headliner.
– Disconnect any connectors.
Now, the following components can be unclipped from the frame
as necessary:
♦ Switch for front interior light/reading light -3-
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
1. Compartments/covers 39
