INSTALLATION INSTRUCTIONS
www.voltlighting.com
VOLT
®
Commercial PAR 36 Well Light
520 Series

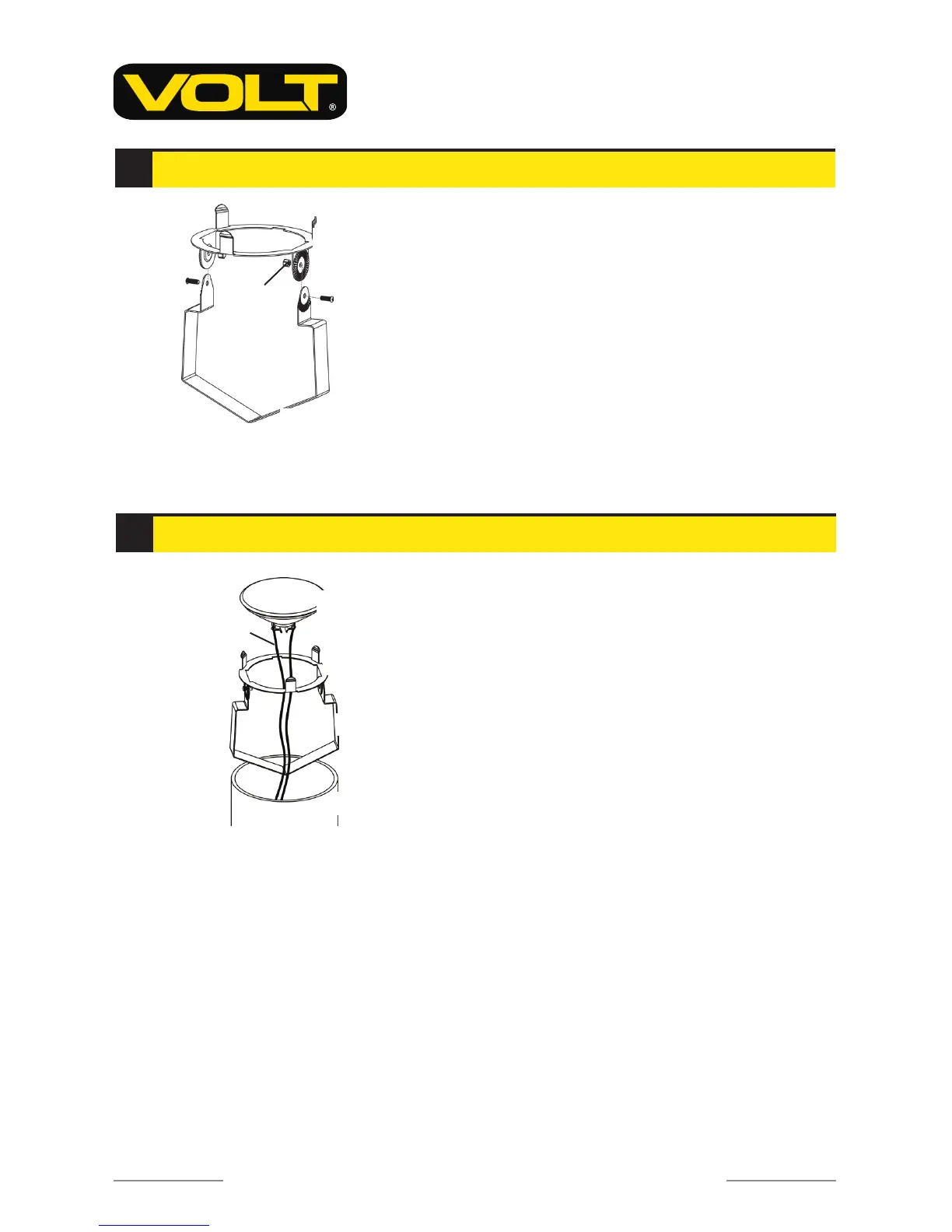

Attach lamp holder onto “U” Brack-
et and line up holes on them. Pass
screws through holes and secure with
nuts.
Install Lamp Holder
2
“U” Bracket
Lamp Holder
Screw
Nut
Use PAR36 lamp with correct wattage
and type marked on xture label.
Pass supply wires through the center
of the lamp holder. Connect supply
wires to the bottom of lamp. Snap
lamp onto lamp holder and then push
“U” bracket with lamp into tube.
CAUTION: Do not exceed maximum
wattage marked on luminaire label.
NOTE: DO NOT touch lamp with
bare hands. Use soft cloth to handle
lamp.
Install Lamp
3
Tube
Supply Wire
Lamp
“U” Bracket
Lamp Holder
To Next Page
