Strip two leads from luminaire
pigtail. Using two wire connectors,
sold separately, connect leads from
luminaire to main low voltage supply
cable leads.
Wire Connection
5
Pigtail
Wire
Connector
Main Low Voltage
Supply Cable

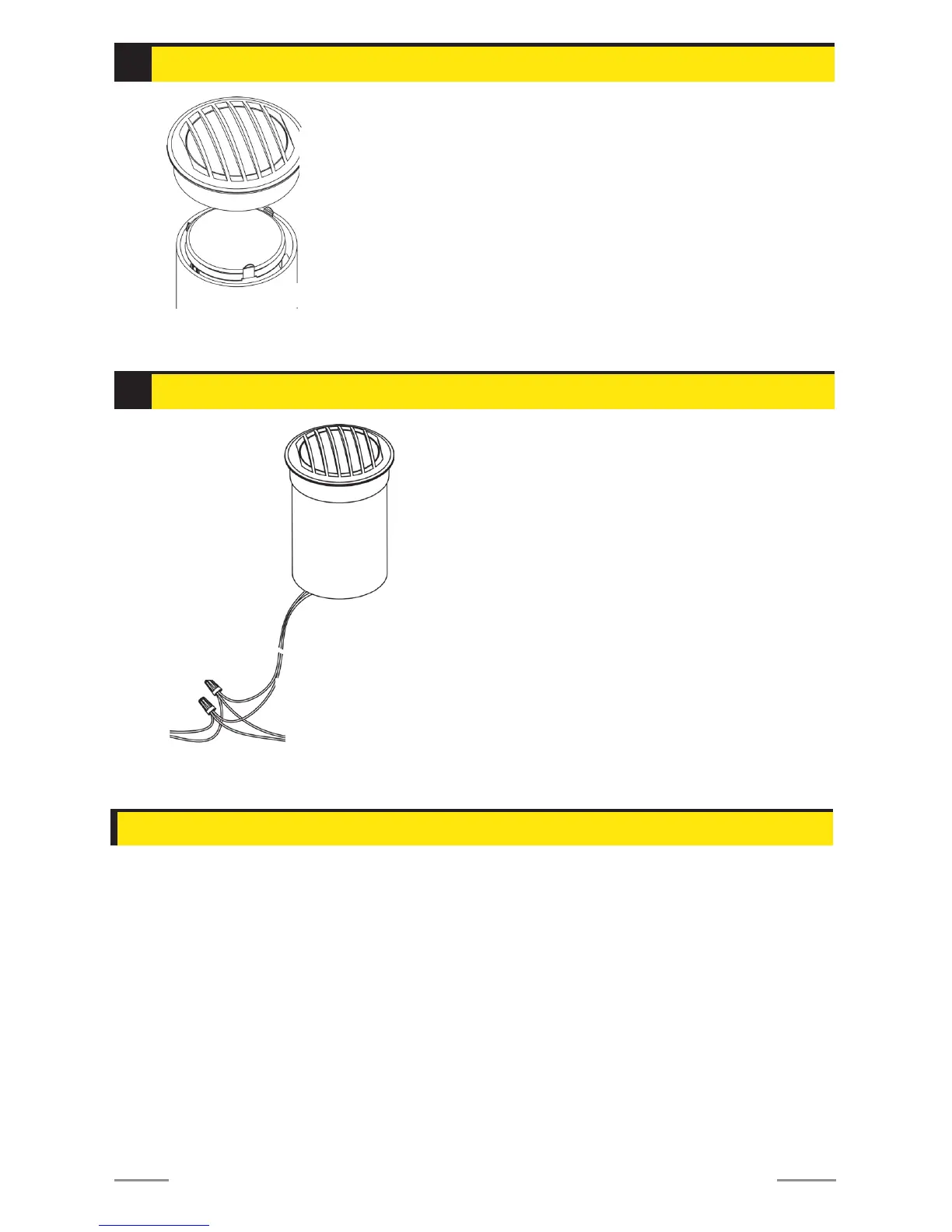

Ax brass grate with lens onto top
end of tube.
Install Brass Grate with Lens
4
Brass Grate
with Lens
Tube
Install/Replace Lamp
Please reverse Step 3 - Step 4 to expose the lamp and replace it with
correct wattage and type marked on xture label. Reinstall brass grate with
lens.
IMPORTANT: Halogen lamps must be protected from moisture and dust at all
times. Always re-install xture cover when moved.
