Voltacon 4KVA - System Commissioning and Troubleshooting; Single-Phase Commissioning; Three-Phase Commissioning

10

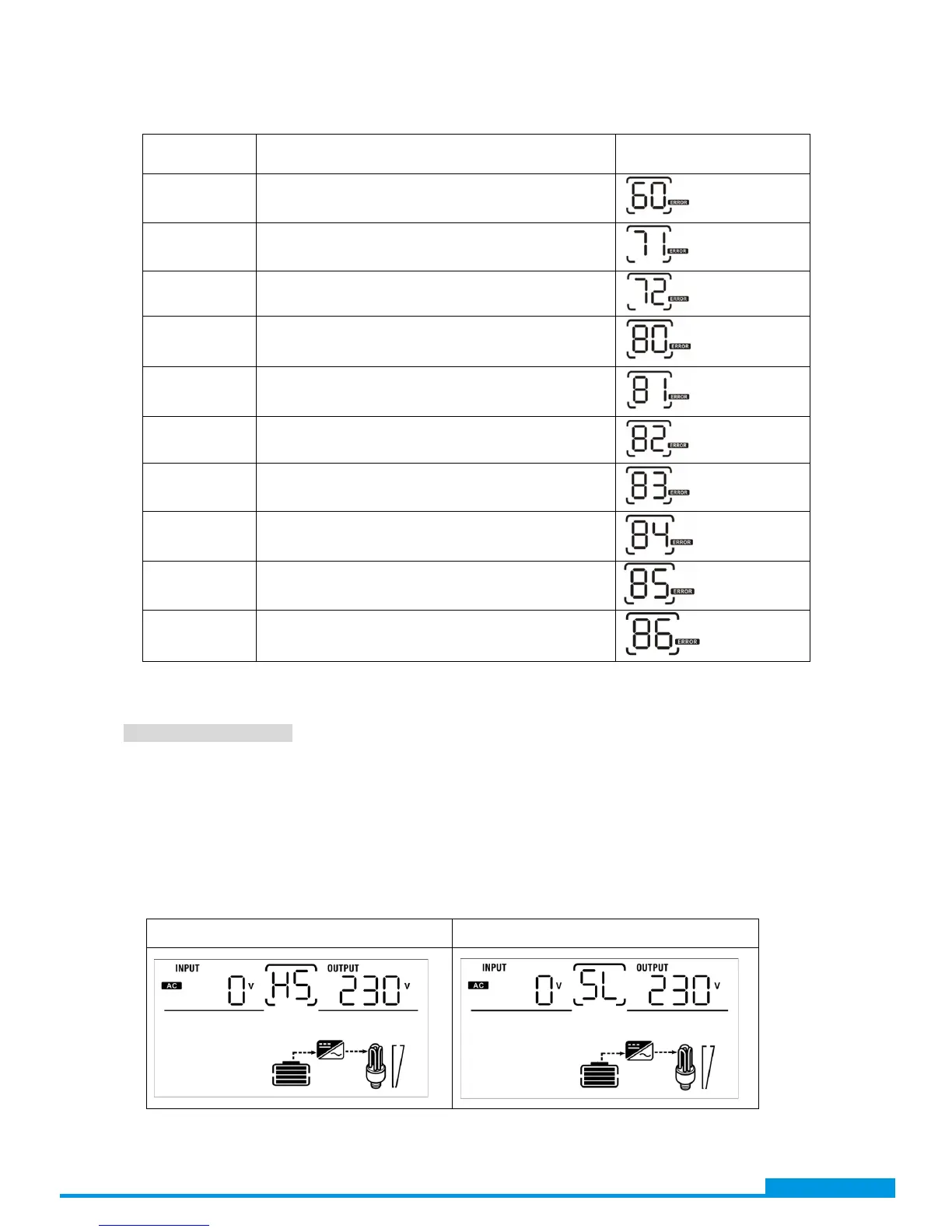

Fault code display:
Fault Code Fault Event Icon on
60 Power feedback protection
71 Firmware version inconsistent
72 Current sharing fault
80 CAN fault
81 Host loss
82 Synchronization loss
83 Battery voltage detected different
84 AC input voltage and frequency detected different
85 AC output current unbalance
86 AC output mode setting is different
11. Commissioning
Parallel in single phase
Step 1: Check the following requirements before commissioning:
 Correct wire connection
 Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected
together.
Step 2: Switch on DC breakers of each unit.
Step 3: Turn on each unit.
LCD display in Master unit LCD display in Slave unit
