Recommended battery capacity
Inverter parallel numbers 2 3 4
Battery Capacity 400AH 600AH 800AH

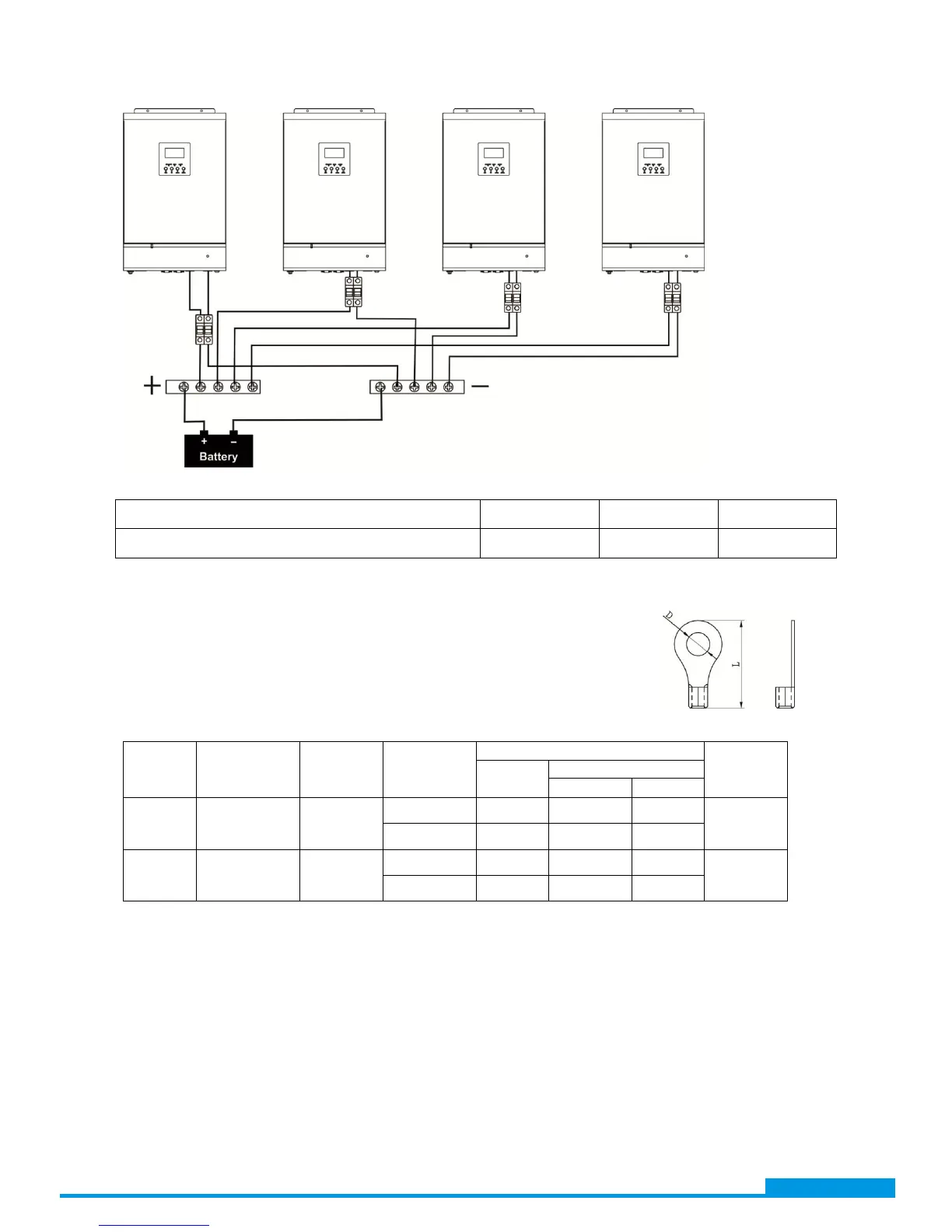

NOTE: Recommended spec of cable from inverter to BUS bar and breaker is
listed as below. The cable used from BUS bar to battery should be X pcs of
cable from inverter to BUS bar and breaker. X indicates the number of
inverters connected in parallel.
Recommended battery cable and terminal size:
Model
Typical
Amperage
Battery
capacity
Wire Size
Ring Terminal
Torque
value
Cable
mm
2
Dimensions
D (mm) L (mm)
4KVA 67A 200AH
1*4AWG 22 6.4 33.2
2~ 3 Nm
2*8AWG 14 6.4 29.2
5KVA 84A 200AH
1*4AWG 22 6.4 33.2
2~ 3 Nm
2*8AWG 14 6.4 29.2
Breaker
BUS Bar BUS Bar
Ring terminal:
