Wiring Diagram AQ131, AQ151, 230, 250

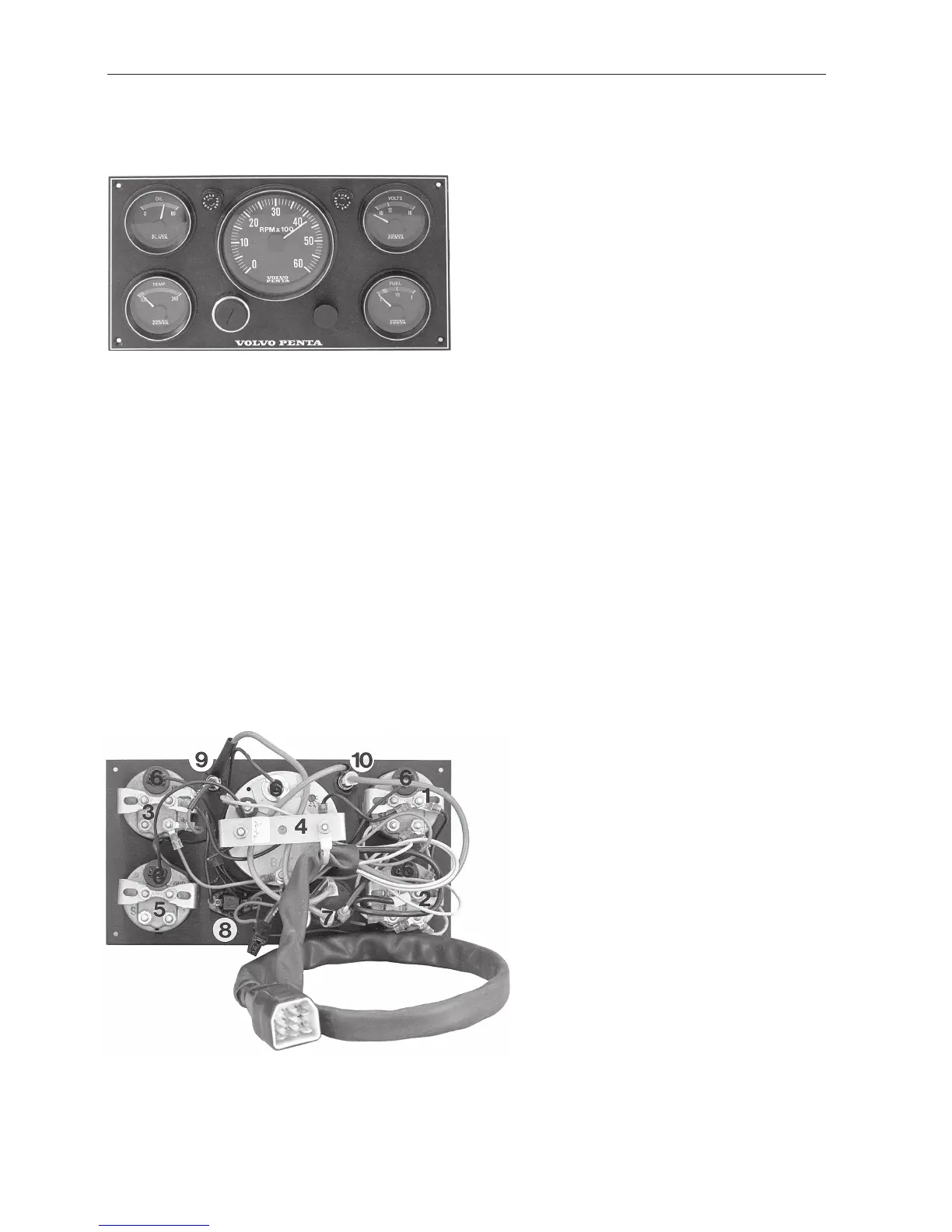

With Instrument panel alternative 1
1. Oil pressure gauge
2. Temperature gauge, coolant
3. Voltmeter
4. Tachometer
5. Fuel gauge (alternative)
6. Instrument lighting
7. Key switch (B=30, S=50, I=15)
8. Switch, instrument lighting
9. Fuse 8 A
10. Fuse 8 A
11. Generator
12. Starter motor
13. Connector engine–instrumentation
14. Automatic fuse 40A
15. Main switch (option)
16. Battery
17. Temperature sensor
18. Oil pressure sensor
19. Distributor
20. Ignition coil
21. Relay
22. Resistor
Cable cross sections
AWG mm
2
16 1.5
13 2.5
10 6.0
8 10.0
Cable colour code
SB = Black
PU = Purple
LBN = Light brown
R = Red
GR = Grey
LBL = Light blue
R/Y = Red/Yellow
BN = Brown
W = White
Y = Yellow
