Volvo Penta AQ211 User Manual

19

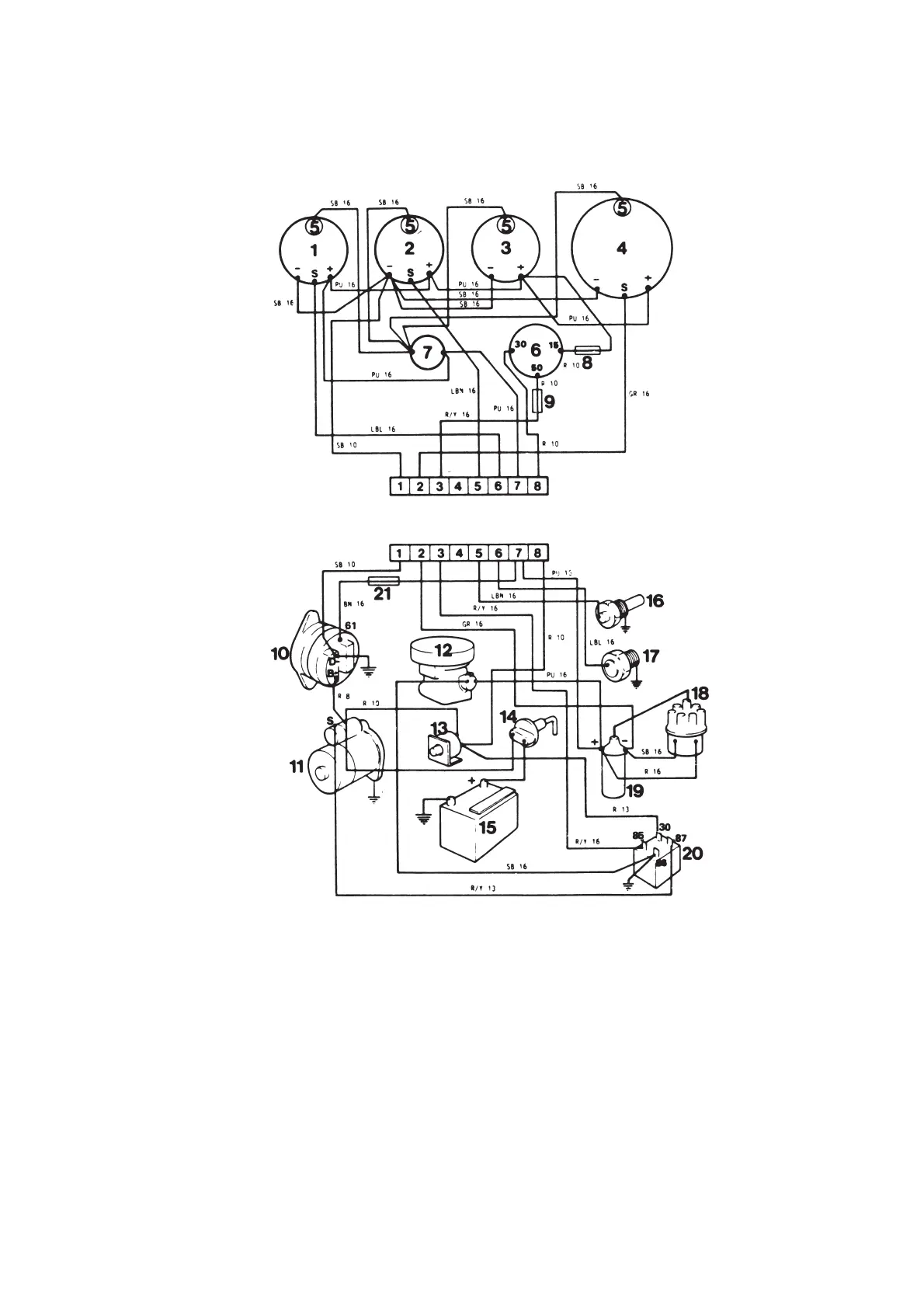

WIRING DIAGRAM
(AQ205A)
1. Oil pressure gauge
2. Temp gauge
3. Voltmeter
4. Tachometer
5. Instrument lights
6. Key switch
7. Switch, instrument lights
8. Fuse 8 Amp
9. Fuse 8 Amp
10. Alternator
11. Starter motor
12. Automatic choke
13. Automatic fuse 40 Amp
14. Main switch (optional)
15. Battery (optional)
16. Temp sender
17. Oil pressure sender
18. Distributor
19. Ignition coil
20. Relay
21. Resistor
Color
SB = black
PU = purple
LBN = light brown
R = red
GR = grey
LBL = light blue
R/Y = red/yellow
BN = brown
W = white
AWG mm
2
16 1.5
13 2.5
10 6.0
8 10.0

Volvo Penta AQ211 Specifications

General

Fuel Type	Gasoline
Compression Ratio	8.5:1
Fuel System	Carbureted
Displacement	5.0 L
Power Output	211 hp (157 kW)
Stroke	88.4 mm
