Gauge Range, setting instrument maximum display
range.
Boat Speed, 10 – 100 knots, in steps of 10 knots.
Engine Speed, 2500/3000/4000/5000/6000 rpm.
Propeller Speed, 1000/2000/3000 rpm.
EVC Information, this information cannot be changed.
Features, installed functions are marked blue.
Components, press
to see installed compo-
nents.
Software, information regarding the software ID
number.
Calibrations, displays the options, installed for this
system, that may be calibrated. Options include, but
are not limited to: Power Trim, Docking, Lever, Trol-
ling, Idle Speed, and Fuel Level Sensor.
The following is only displayed if the function is instal-
led.
Speed Correction, setting the speed factor.
Depth, setting the echo sounder depth alarm. Fol-
low the instructions on the screen.
Fuel Tank, fuel tank calibration. Follow the instruc-
tions on the screen.
ACP Info, setting the ACP protection position.
PTA, PTA calibration. Follow the instructions on the
screen.
Warning Manager
If the system discovers a fault, the operator is informed
by a message on the screen. The fault message must
be confirmed by pressing
.
All faults are stored in the Warning Manager.
The fault message indicates the drivetrain affected,
describes the fault and suggests suitable actions.
For further information on fault messages, refer to the
chapter entitled Fault Code Register.

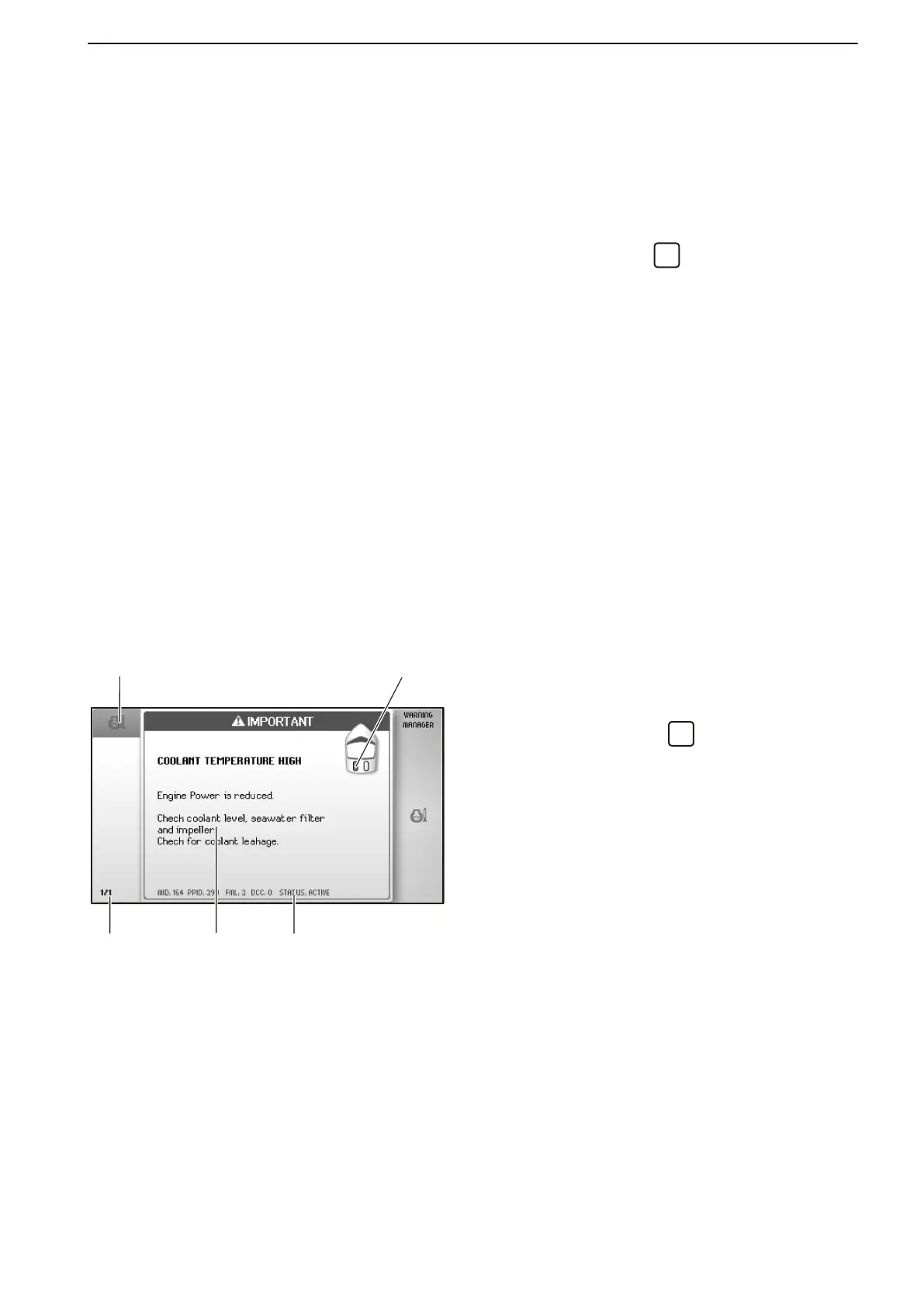

1 Symbol
2 Shows on which drive line the fault is detected.
3 List of registered faults; turn the knob to browse.
4 Fault message with description and suggestion for action.
5 Service information.
