Power Trim Buttons
51810
51811
TRIM SB
TRIM PT
CRUISE
+
-
1
2
P0013214

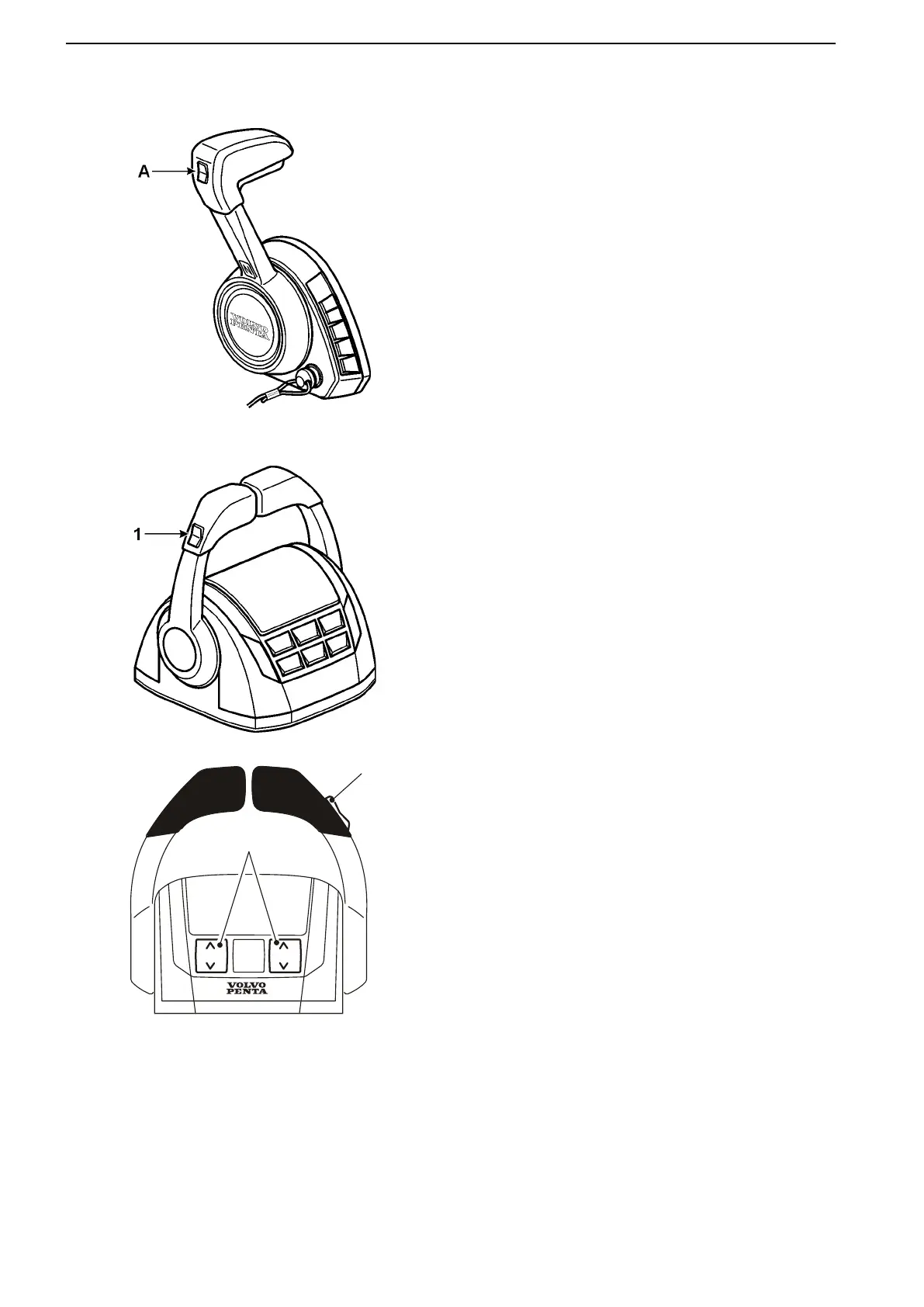

The buttons on the power trim control panel are used
for both single and twin engine installations.
By trimming out the drive away from the transom, the
height of the bow will be “raised” in relation to the hor-
izontal axis, while trimming in the drive will “lower” the
bow of the boat.
In single engine installations, the drive can be trimmed
by pressing button A.
For twin engine installations, the power trim buttons
can be used to trim the drives individually or simulta-
neously.
In twin engine installations, both drives can be trimmed
simultaneously by pressing button 1. Alternatively, you
may trim drives individually by pressing starboard or
port button 2.
Trimming out the Drive
Press the upper portion of button 1 or A on the control
lever to raise the bow of the boat (drive trimmed up or
out).
The drives on a twin installation can be individually
trimmed up or out by pressing the lower portion of
starboard or port button 2 on the front of the control.
Trimming in the Drive
Press the lower portion of button 1 or A on the control
lever to lower the bow of the boat (drive trimmed down
or in).
The drives on a twin installation can be individually
trimmed down or in by pressing the upper portion of
starboard or port button 2 on the front of the control.
Instruments and Controls
48 47701898 12-2010
