34
8

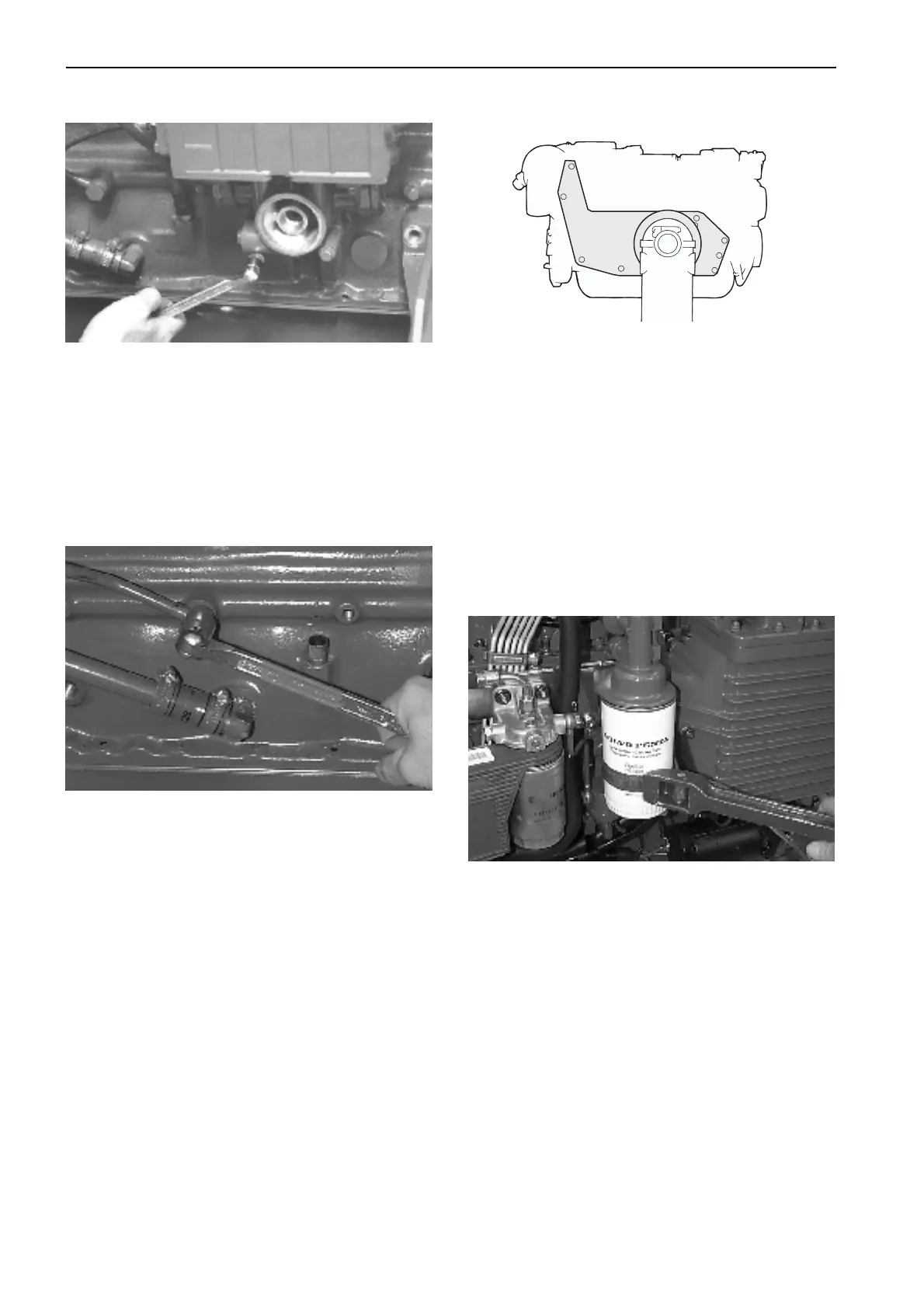

Remove the oil cooler with the oil distribution housing
Wrench 12 mm.
Remove the dipstick pipe. Wrench 10 mm.
9
Remove the oil pipes turbocharger (TC) – cylinder
block. Wrench 12 mm and 19 mm and flexible screw-
driver.
Remove the oil plugs from the oilways in the engine
block, partly to attach the engine fixture, partly to al-
low the oilways to be flushed.
10
Lift the engine with the appropriate lifting gear. Re-
move the engine pads. Wrench 17 mm.
Install engine fixture 999 9946.
NOTE! If the dipstick pipe cannot be removed the fix-
ture must be modified so that the dipstick pipe is not
crimped.
Install engine in the unit stand 998 6485.
11
Remove connectors for oil pressure sensor and oil
pressure switch. Remove oil filter with 999 9179 and
oil filter adapter. Wrench 12 mm (KA(M)D42/43/44/
300).
Repair Instructions
