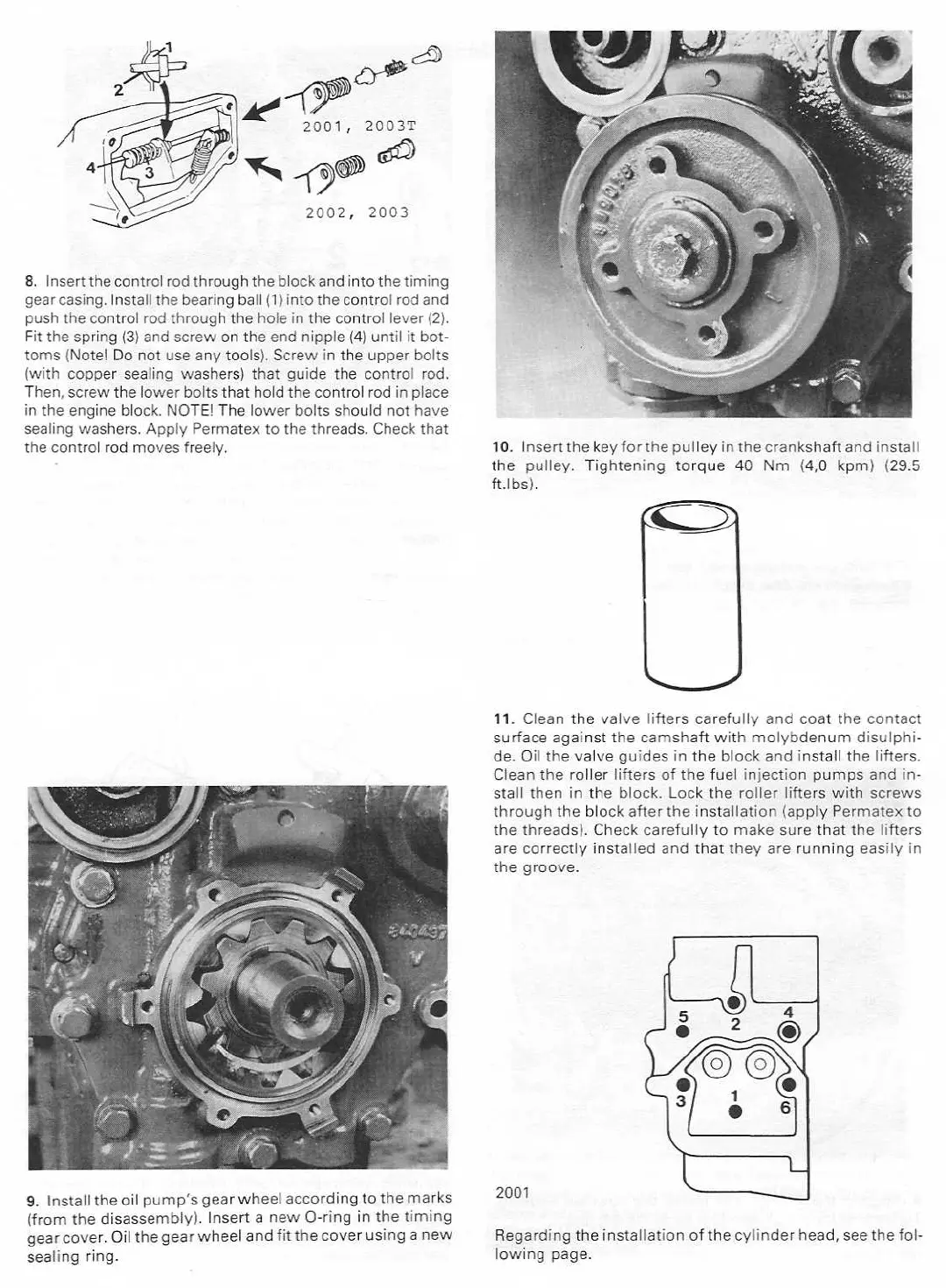

8 .

Insert the control rod through the black and into the timing
gear casing . Install the bearing ball
(1)
into the control rod and
push the control rod through the hole in the control lever (2) .
Fit the spring (3) and screw on the end nipple (4) until it
bottoms
(Note! Do not use any tools) . Screw in the upper bolts
(with copper sealing washers) that guide the control rod .
Then,
screw the lower bolts that hold the control rod in place
in the engine block . NOTE!The lower bolts should not have
sealing
washers .
Apply
Permatex to the threads . Check that
the control rod moves freely .
9 .
Install the oil
pump's gearwheel according to the
marks
(from the
disassembly) . Insert a
new O-ring in the timing
gear
cover . Oil the gear
wheeland fit The cover
using a new
sealing
ring .
2001
10 .

Insert thekey for the pulley in the crankshaft and install
the pulley . Tighteningtorque 40 Nm (4,0 kpm) (29 .5
ft . Ibs)
.
11 . Clean the valve lifters carefully and coa t the contact
surf ace against the camshaft with molybdenum disulphide
.
Oil the valve guides in the block and install the lifters .
Clean the roller lifters of the fuel injection pumps and
install then in the block . Lock the roller lifters with screws
through the block after the installation (apply Permatex to
the threads) . Check carefully to make sure that the lifters
are correctly installed and that they are running easily in
the groove
.
Regarding the installation of the cylinder head, seethe
following page .
