Volvo 2001 - Electrical System

INSTRUMENTPANEL
1 .

Printed circuit card
2 .

Rev counter (accessory)
3 .

Start
button
4 .

Switch for instrument panel
5 .

Alarm test button
6 . Alarm
Max output
from
the panel = 5 A
Cable colour
R

= Red
PU

-- Purple
BN

= Brown
OR

= Orange
GR

= Grey
SB

= Black
W

= White
Y

= Yellow
GN

= Green
BL

=
Blue
ENGINE
1 . Relay
2
. Fuse
3 .

Temp .
alarm sender
4 .

Oil
pressure alarm sender
Wire areas in mm 2
Wire area
mm 2
1,0

16
1,5

14
2,5

12
10

6
26
AWG

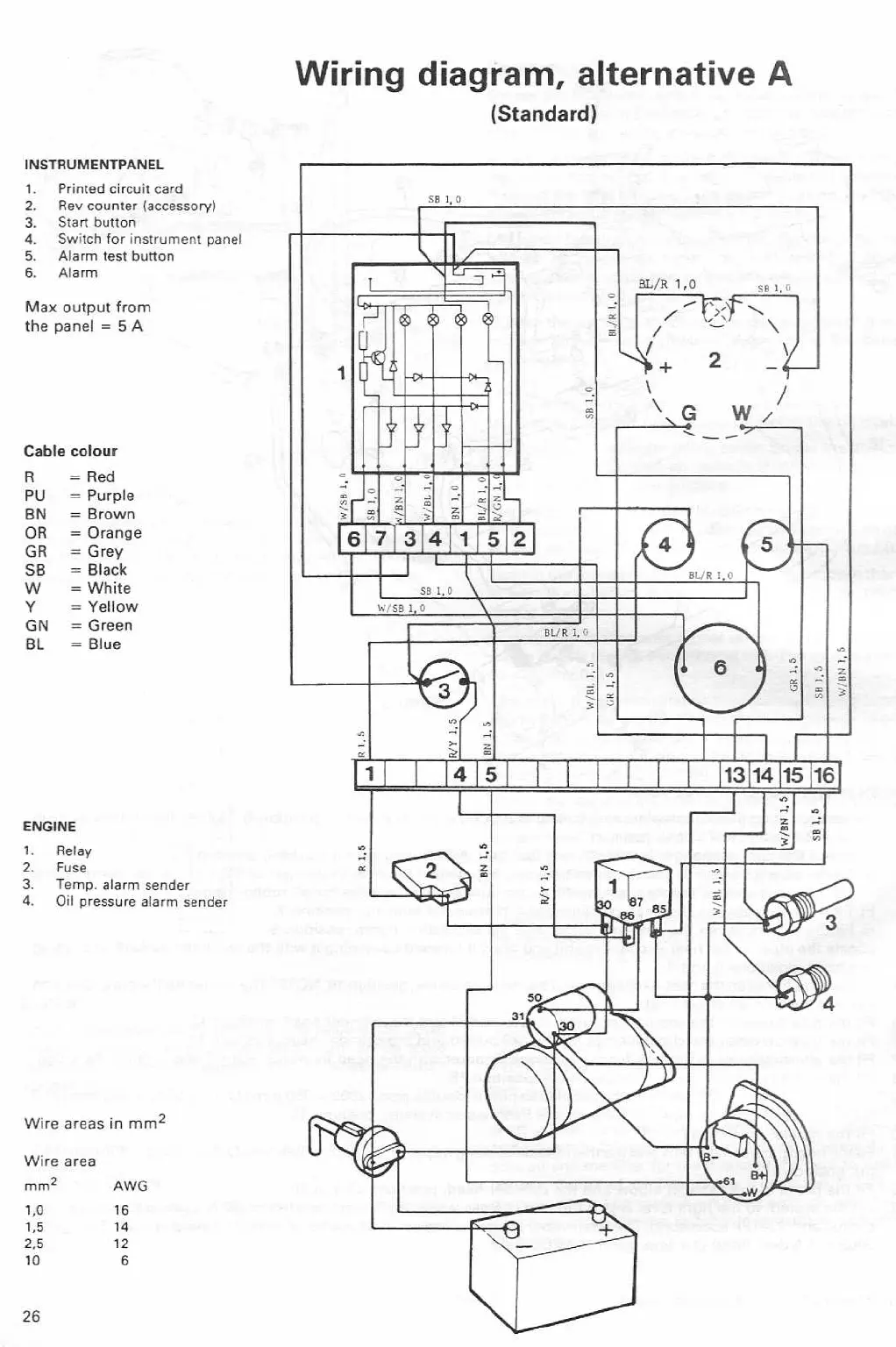

Wiring diagram, alternative A
(Standard)
Z
