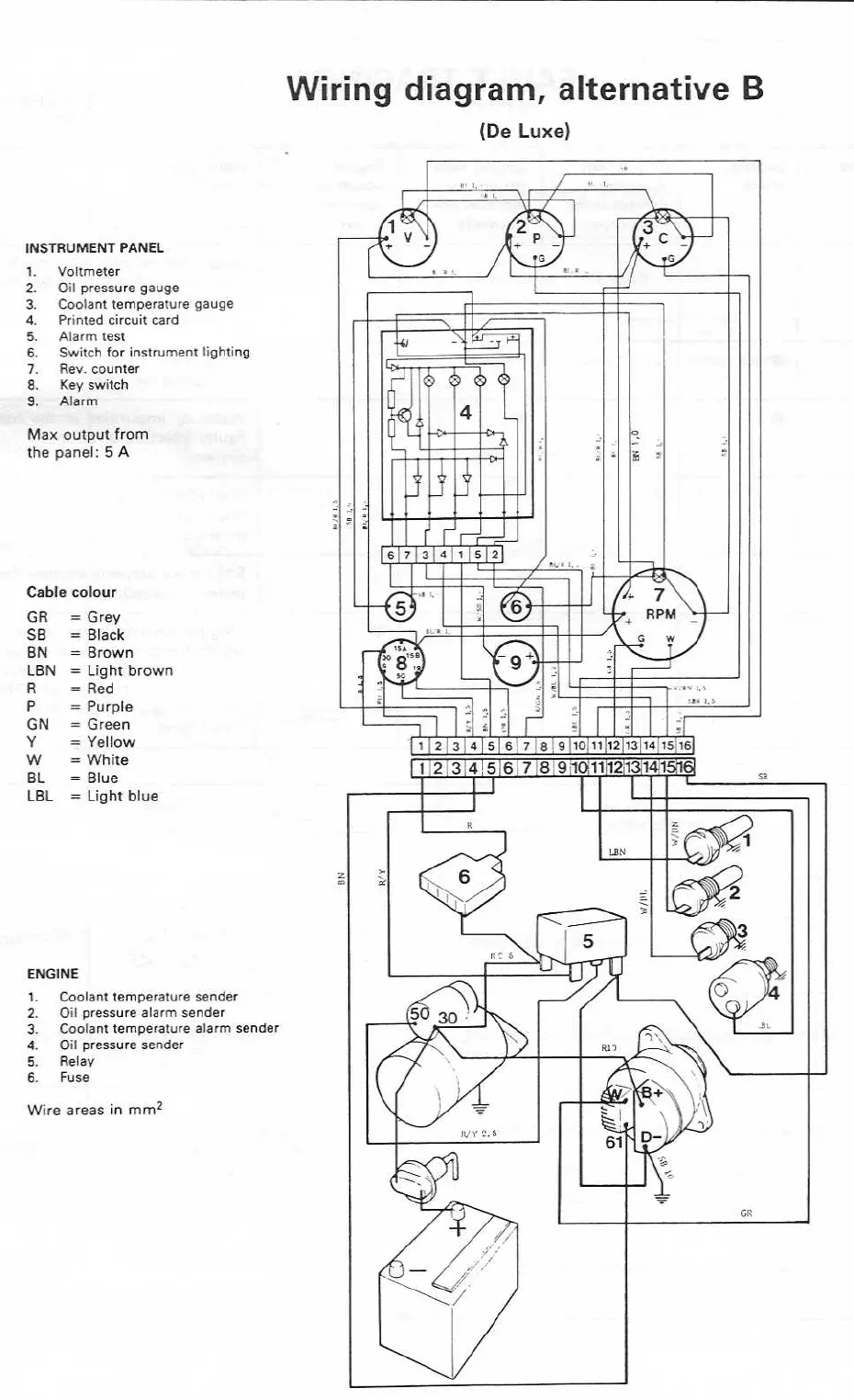

Wiring
diagram,
alternative
B
(De Luxe)
INSTRUMENT
PANEL
1
.
Voltmeter
2
.
Oil
pressure
gauge
3
.
Coolant
temperature
gauge
4
.
Printed
circuit
card
5
.
Alarm
test
6
.
Switch
for
instrument
lighting
7
.
Rev
.
counter
8
.
Key
switch
9
.
Alarm
Max
output
from
the
panel
:
5
A
Cable
colour
GR
=
Grey
SB
=
Black
BN
=
Brown
LBN
=
Light
brown
R
=
Red
P
=
Purple
GN
=
Green
Y
=
Yellow
W
=
White
BL
=
Blue
LBL
=
Light
blue
ENGINE
1
.
Coolant
temperature
sender
2
.
Oil
pressure
alarm
sender
3
.
Coolant
temperature
alarm
sender
4
.
pit
pressure
sender
5
.
Relay
6
.
Fuse
Wire
areas
in
mm
2
