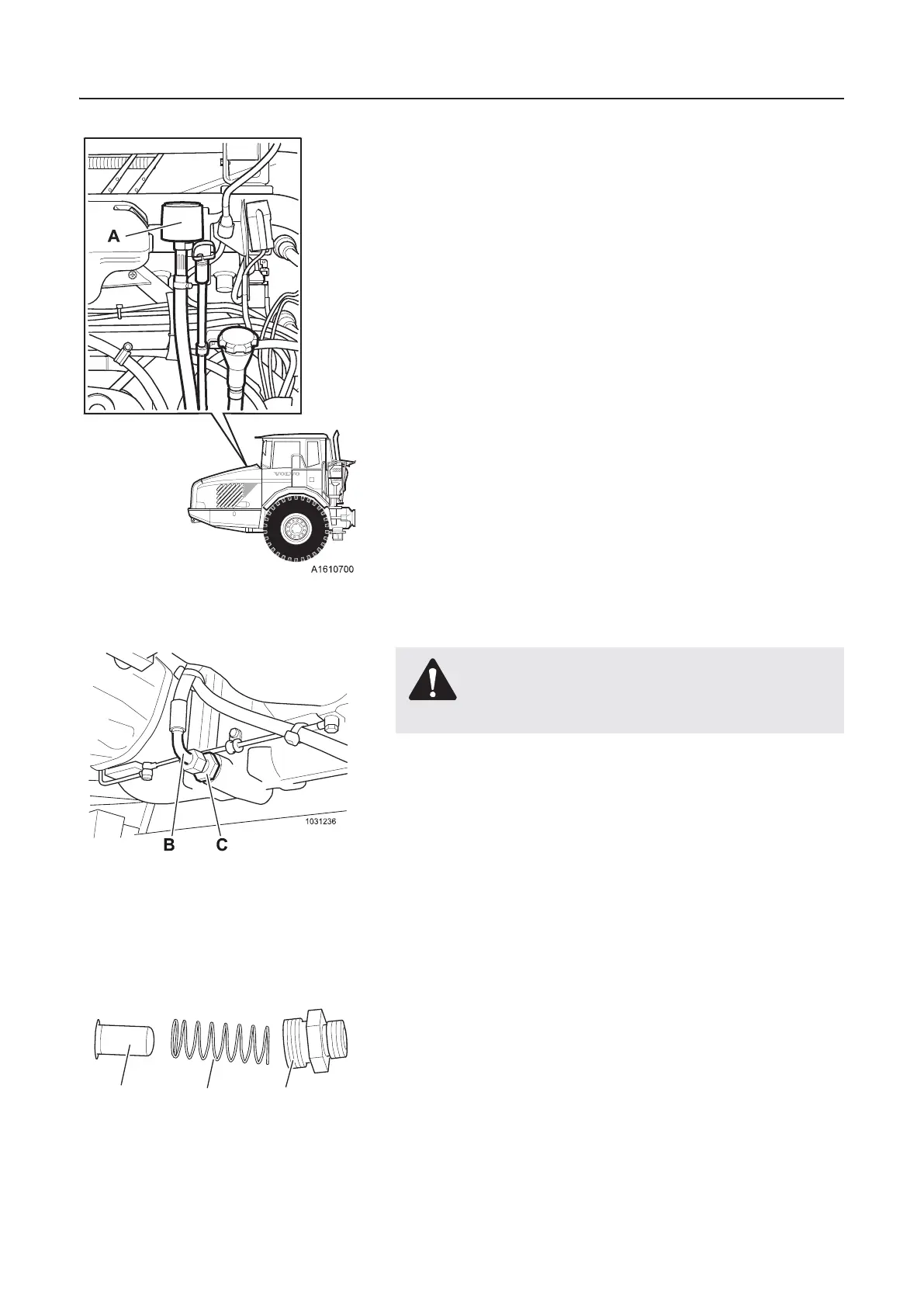

Transmission, replacing breather filter
Replace the breather filter every 2000 hours.
The filter is of the disposable type, i.e. it cannot be cleaned,
but must be replaced.
1 Undo the clamp and remove filter (A).
2 Move the clamp over to the new filter and install it.
Suction strainer in power take-off, cleaning
The suction strainer shall be cleaned every 2000 hours.
Suction strainer (B) is located at the front on the power take-off on
the flywheel housing.
1 Lower the guard plate and leave it suspended by the chain.
2 Unscrew pipe (B).
3 Unscrew adapter (C).
NOTE! Approx. 2 dl (8 fl oz) of oil will run out.
4 Take out the strainer and clean it.
5 Reinstall the strainer, adapter and pipe.
6 Raise the guard plate.
WARNING!
Hot oil can cause severe burns on unprotected skin.
A Breather filter
BPipe
C Adapter
1034067
D E F
D Suction strainer
ESpring
F Adapter
