Volvo A40E - Page 166

Service and maintenance
164 Central lubrication

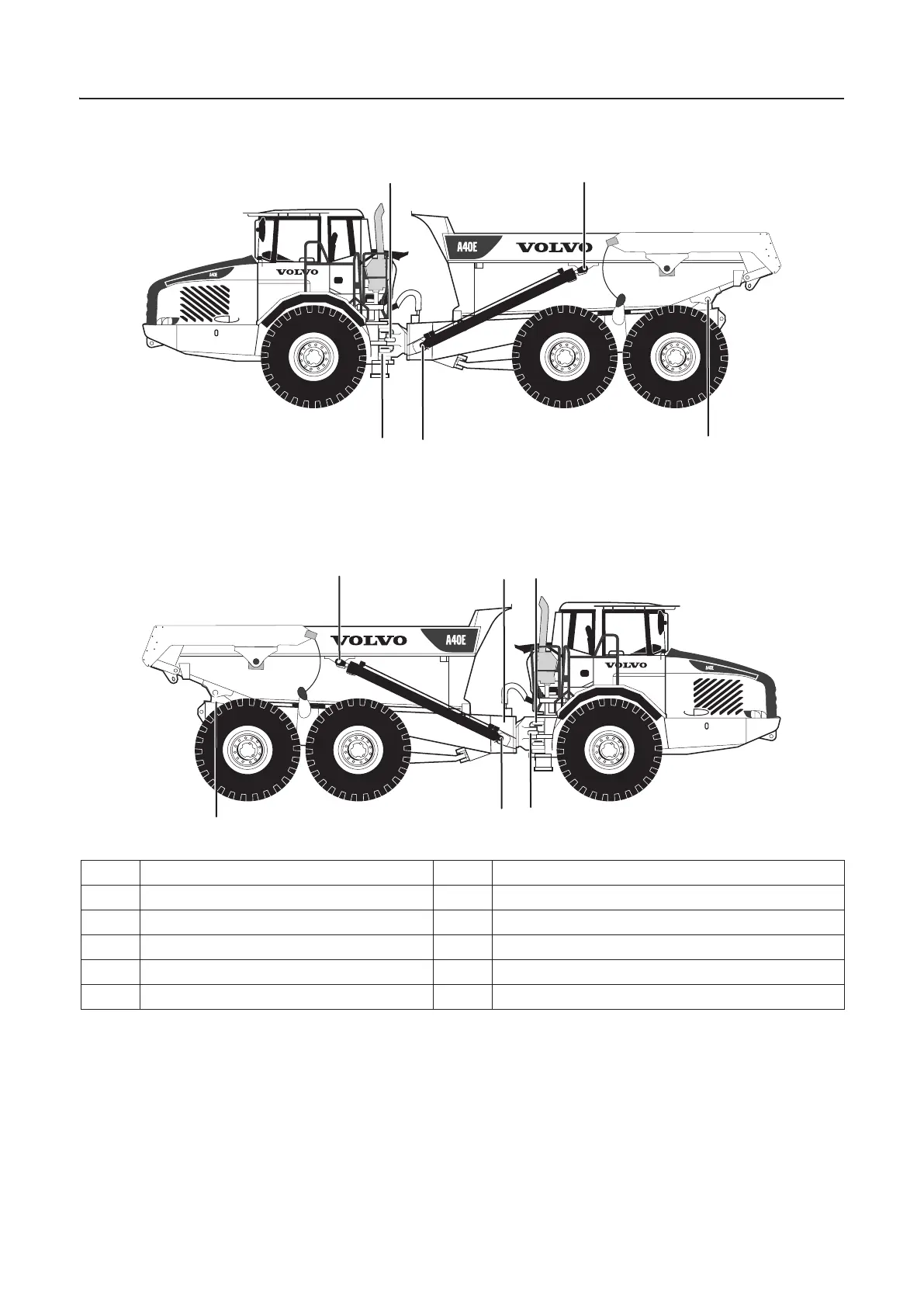

Grease points
1 Steering cylinder 7-10 Frame joint bearing (between hitch and trailer unit)
2 Upper hoist cylinder 11 Steering joint
3 Dump joint 12 Steering cylinder
4 Lower hoist cylinder 13 Lower hoist cylinder
5 Steering joint 14 Dump joint
6 Upper hoist cylinder
5 4
3
2
1
1044701
6
8
12
11
13
10
9
7
14
1044702
