Specifications

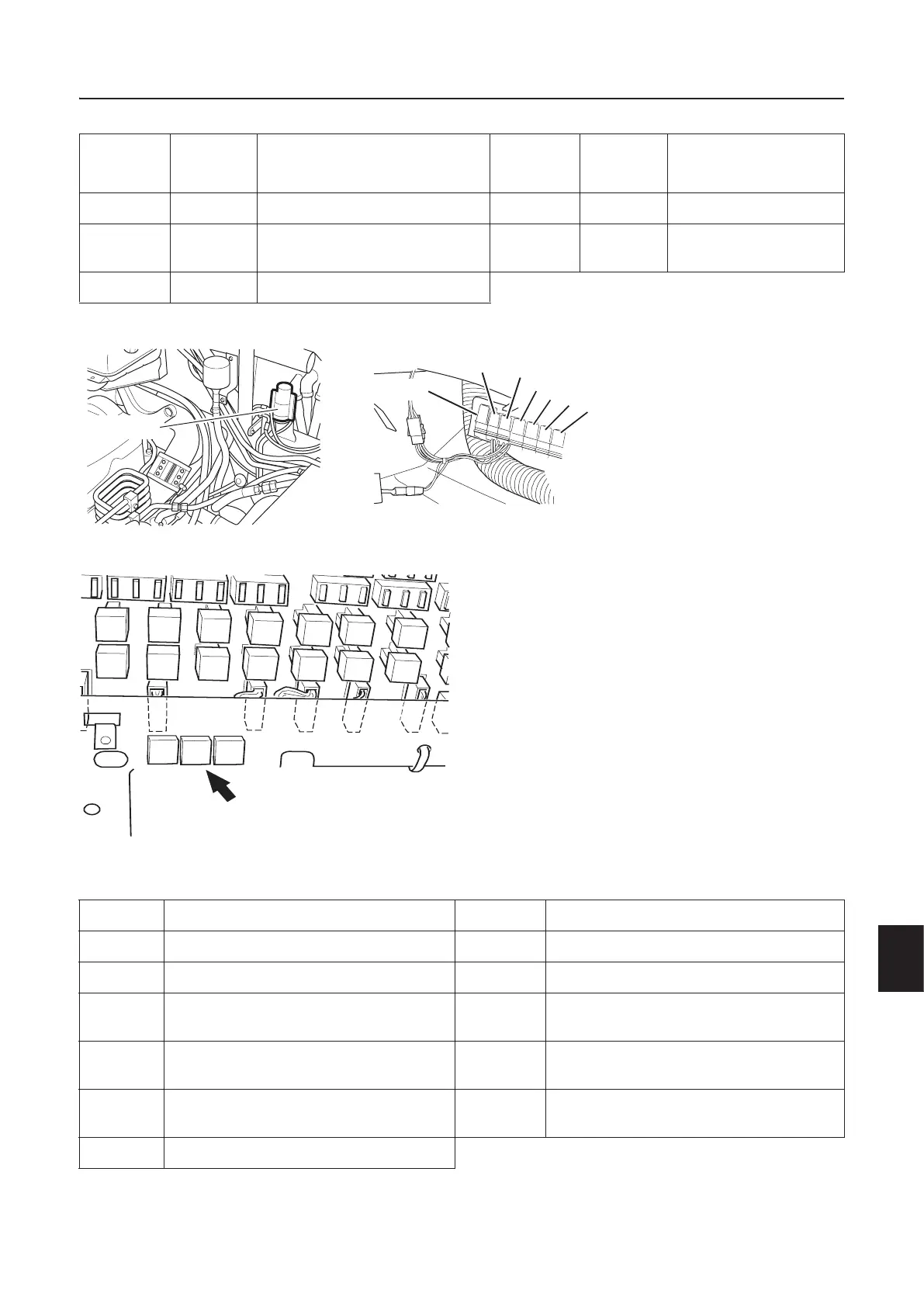

Electrical system, specifications 181
Other relays
8 RE Unassigned 18 RE5201 Stop lights
9 RE4201 Reversing light, reversing
alarm and reversing camera
RFX RF3601 Direction indicators
10 RE3703 Feed 28 VDC T-ECU
Marking Description Marking Description
RE2501 Preheating induction air RE5902 Load and dump brake
RT8701 Time relay for AC-engagement at start RE5903 Load and dump brake
RE8702 Climate control system (AC) RE3301 Starter motor (down low in electrical
distribution box)
RE8703 Climate control system (AC) RE3704 Delayed stop (down low in electrical
distribution box)
RE5502 Parking brake RE8704 Climate control system (AC) (down low in
electrical distribution box)
RE5901 Load and dump brake
Marking
Desig-
nation
Description Marking
Desig-
nation
Description
1014948
RE2501
1048501
RT8701
RE8702
RE8703
RE5502
RE5901
RE5902
RE5903
1048503
Left side of bow
Down low in electrical distribution box on left side
Under right control panel
