Instrument panels

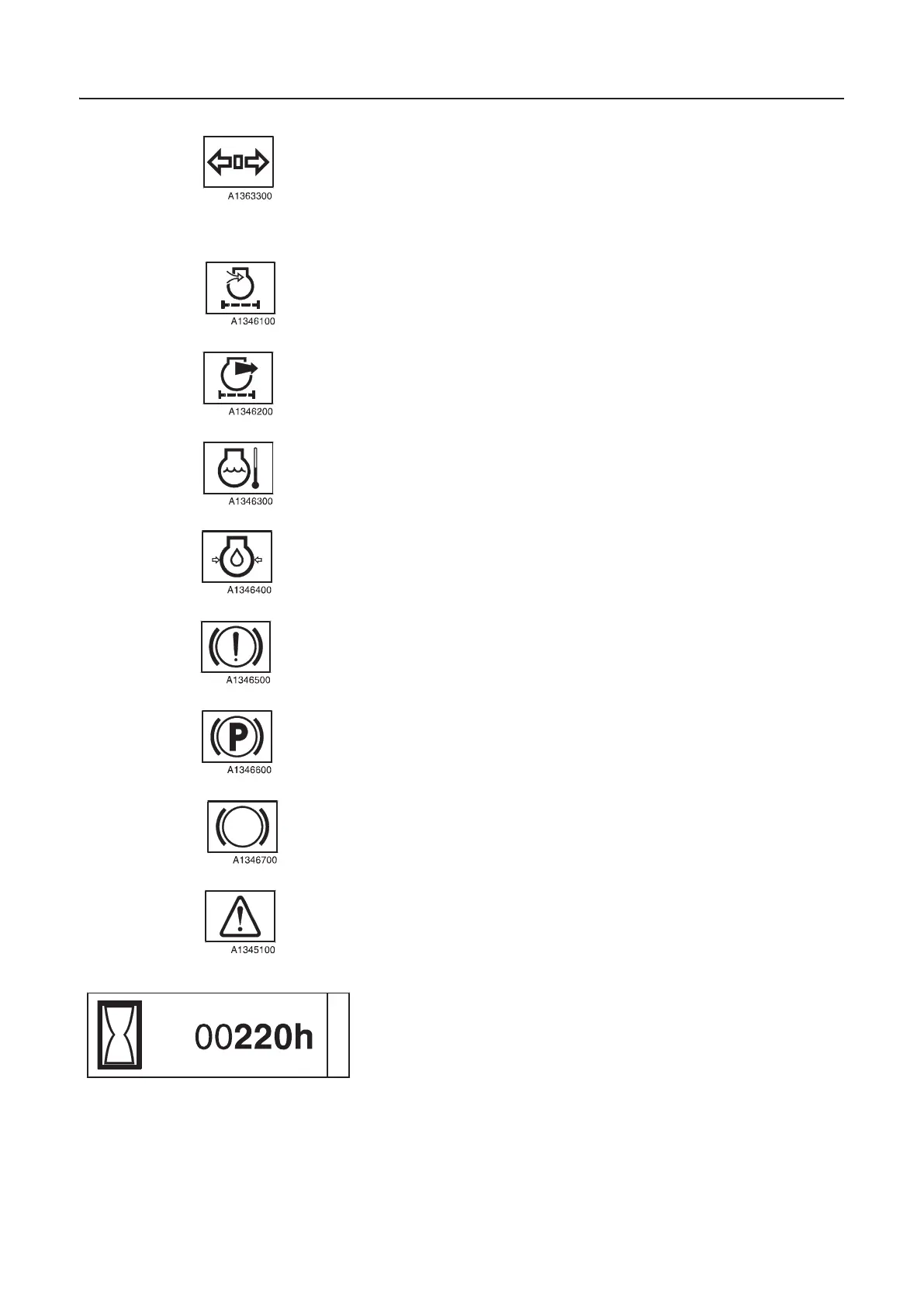

22 Centre instrument panel
11 Direction indicators, trailer unit
Flashes when the direction indicators have been activated.
Indicates that the trailer unit direction indicators are working.
12 Engine air filter clogged
Lights if the engine air filter is clogged – replace or clean the filter.
13 Exhaust emission control
Is not used.
14 Coolant temperature high
Lights if engine coolant temperature is too high.
15 Engine oil pressure low
Lights if engine oil pressure is too low.
16 Brake system oil pressure low
Lights if the hydraulic oil pressure in the brake system is too low.
17 Parking brake applied
Lights when the parking brake is applied.
18 Service brakes applied
Lights when the service brakes are applied.
19 Central warning, amber
Lights/flashes in case of the existence of abnormal condition.
Measures may have to be taken depending on the function
concerned – investigate the cause at the next stop. See page 37.
20 Display unit
An LCD screen shows many different screens (menus) regarding
the condition and state of the machine. Through the display unit
you can yourself, with the aid of the keyboard on the left instrument
panel, select which menu you want to see, see page 28.
