Instrument panels
Right instrument panel 25

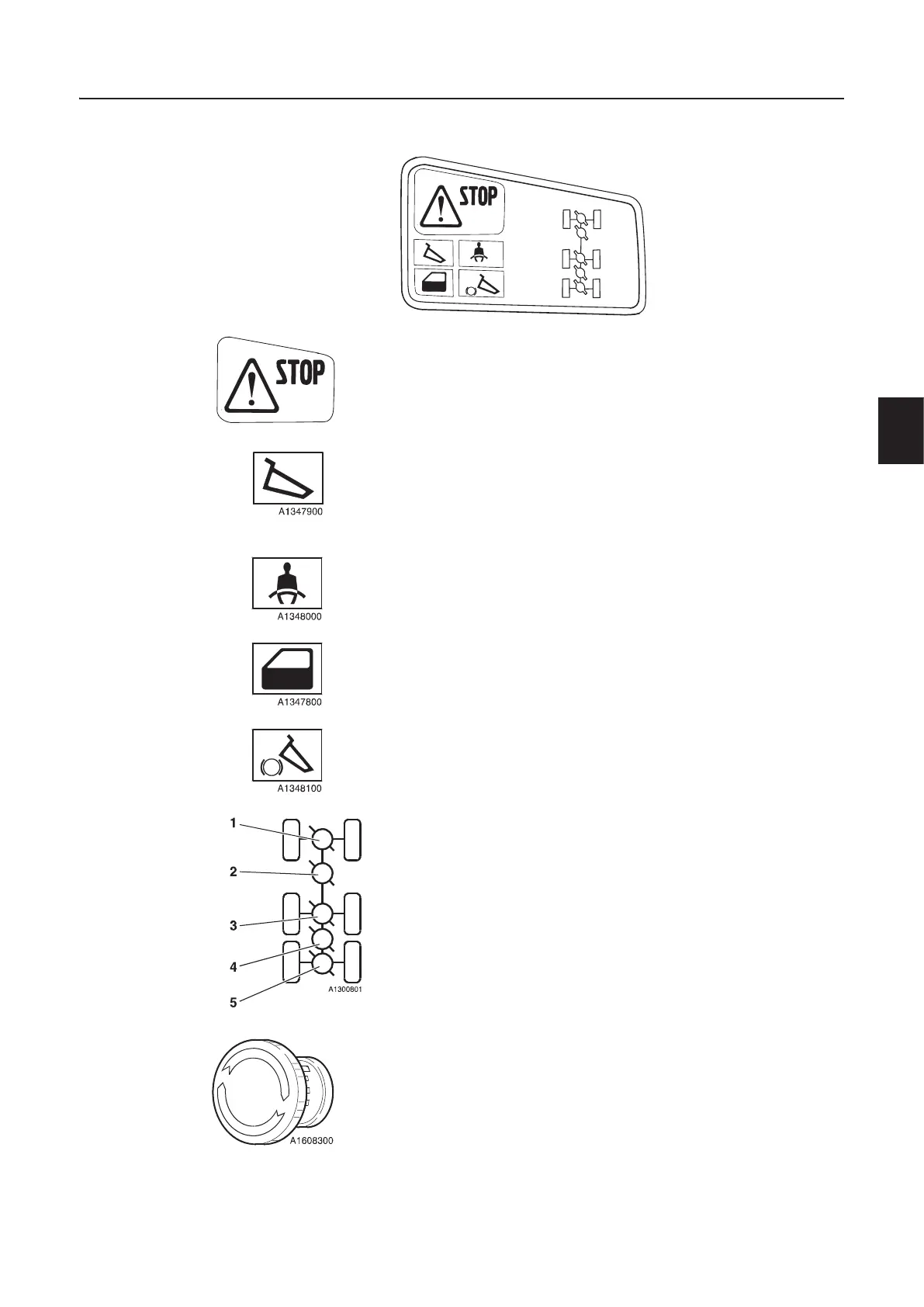

1 Control lamps
Red central warning (STOP)
NOTE! If the lamp flashes while operating – stop the machine
immediately and investigate the cause.
See page 37.
Raised dump body
Lights when the dump body is raised. Does not light when the
dump body is in operating position (i.e. when the dump body is
resting against the trailer unit frame).
Seat belt reminder
Flashes if the operator is sitting in the seat and forgotten to fasten
the seat belt with the engine running.
Door open
Lights when the door is open. When the door is open, the
maximum speed of the machine is limited.
Load and dump brake
Lights when the load and dump brake function is engaged. See
page 69.
Indicator for differential locks / 6-wheel drive
The lamps in the indicator light when the respective function is
engaged.
1 Transverse differential lock, front axle
2 Longitudinal differential lock
3 Transverse differential lock, front bogie axle
4 6-wheel drive
5 Transverse differential lock, rear bogie axle
Machines equipped with ATC, see page 49.
2 Safety stop, engine
The safety stop stops the engine under all circumstances.
A
2
A
1
