Other controls
44 Controls

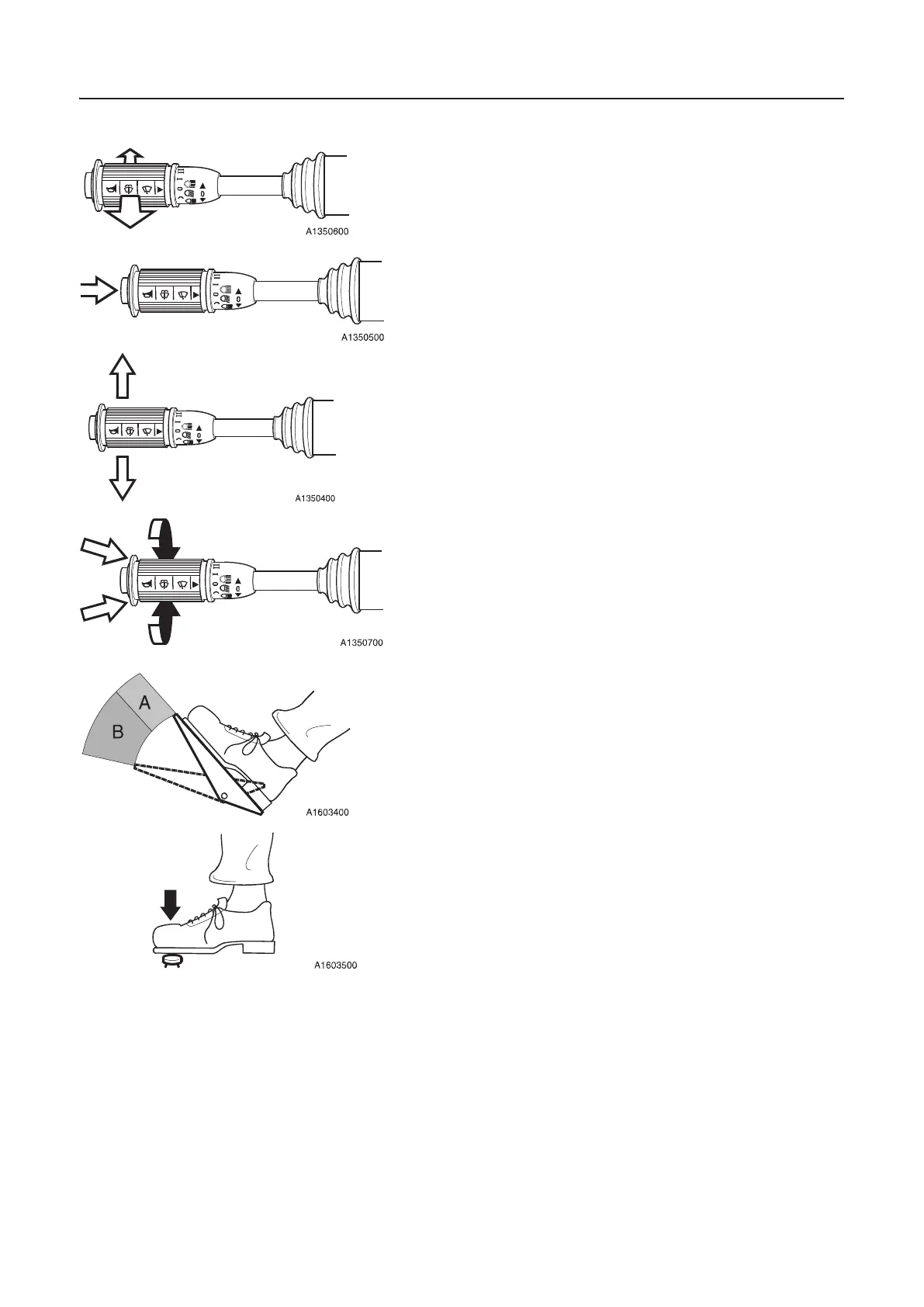

1 Controls, steering column
Headlight dipper
Horn
The horn sounds when the button is pressed in.
Control, direction indicators
Windscreen wiper
2 Retarder / exhaust brake
3 All differential locks and 6-wheel drive
The differential locks and the 6-wheel drive can be engaged by
pressing down the foot control (the lamps in the indicator on the
right instrument panel are alight). The differential locks remain
engaged for as long as the foot switch is pressed down. See also
page 66.
4 Service socket
Service sockets for MATRIS and VCADS Pro are positioned in the
cab, to the right under the steering wheel, to allow readings by
service personnel.
Control upward Headlight flasher
Centre position Low beams
Control downward High beams
Control forward Right direction indicators
Control rearward Left direction indicators
Position J Intermittent wiper
Position 0 Neutral position, wiper turned off
Positions I and II Windscreen wiper (two speeds)
Ring pressed in Washer with automatic wiping 3–4 strokes
Range A Stepless retarder with exhaust brake
Range B Full exhaust brake together with retarder.
