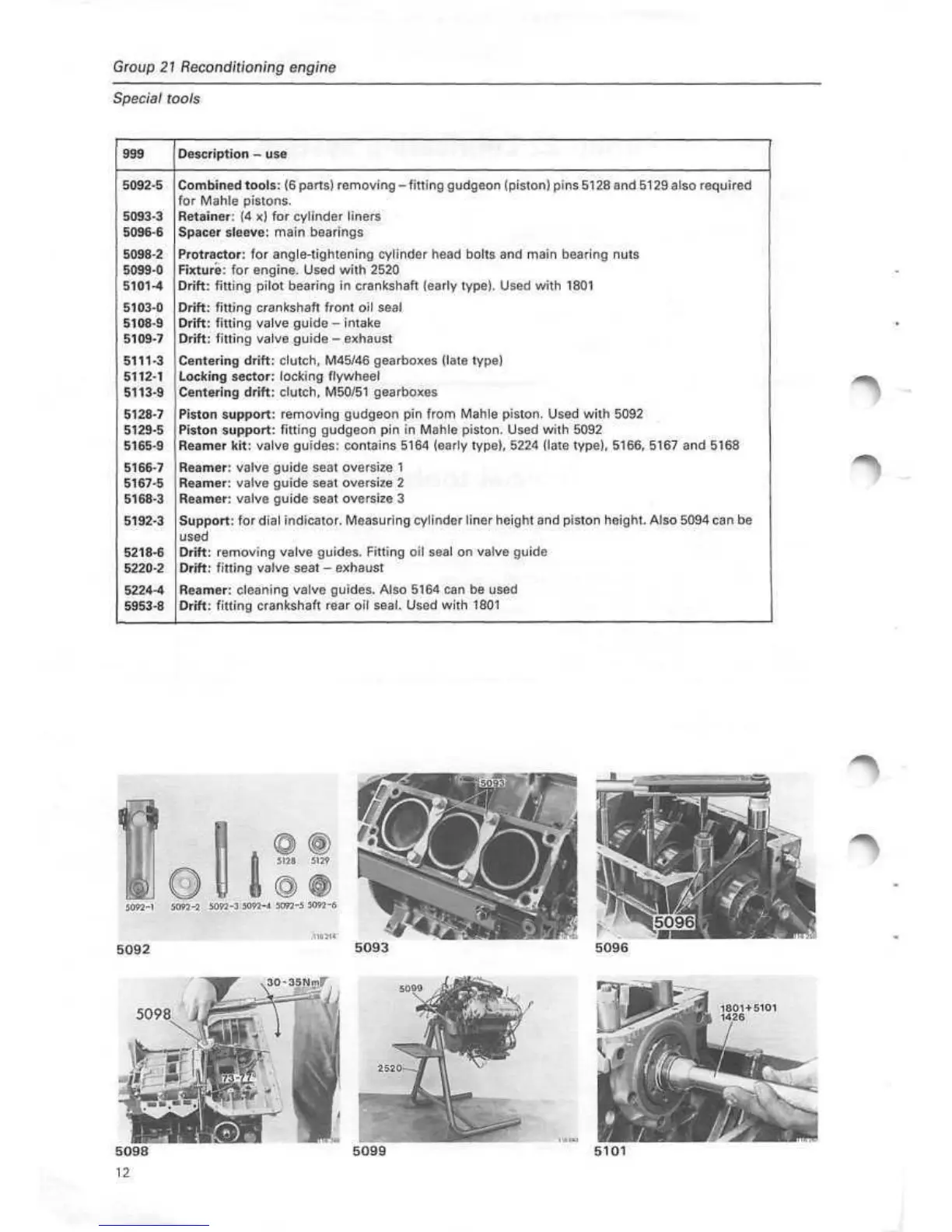

Group 21 Reconditioning engine
Special tools
999
Description - use
5092-5
5093-3
5096-6
5098-2
5099-0
5101-4
5103-0
5108-9
5109-7
5111-3
5112-1
5113-9
5128-7
5129-5
5165-9
5166-7
5167-5
5168-3
5192-3
5218-6
5220-2
5224-4
5953-8
Combined tools: (6 parts)
removing-fitting
gudgeon (piston) pins
5128
and
5129
also required
for
Mahle
pistons.
Retainer: (4 x) for cylinder liners
Spacer sleeve: main bearings
Protractor: for angle-tightening cylinder head bolts and main bearing nuts
Fixture: for engine. Used with 2520
Drift: fitting pilot bearing in crankshaft (early type). Used with 1801
Drift: fitting crankshaft front oil seal
Drift: fitting valve guide - intake
Drift: fitting valve guide - exhaust
Centering drift: clutch, M45/46 gearboxes (late type)
Locking sector: locking flywheel
Centering drift: clutch, M50/51 gearboxes
Piston support: removing gudgeon pin from Mahle piston. Used with 5092
Piston support: fitting gudgeon pin in Mahle piston. Used with 5092
Reamer kit: valve guides: contains 5164 (early type), 5224 (late type), 5166, 5167 and 5168
Reamer: valve guide seat oversize 1
Reamer: valve guide seat oversize 2
Reamer: valve guide seat oversize 3
Support: for dial indicator. Measuring cylinder liner height and piston height. Also 5094 can be
used
Drift: removing valve guides. Fitting oil seal on valve guide
Drift: fitting valve seat - exhaust
Reamer: cleaning valve guides. Also 5164 can be used
Drift: fitting crankshaft rear oil
seal.
Used with 1801
(y) (§)
5128
5129
