Group
21
Reconditioning engine
Assembly

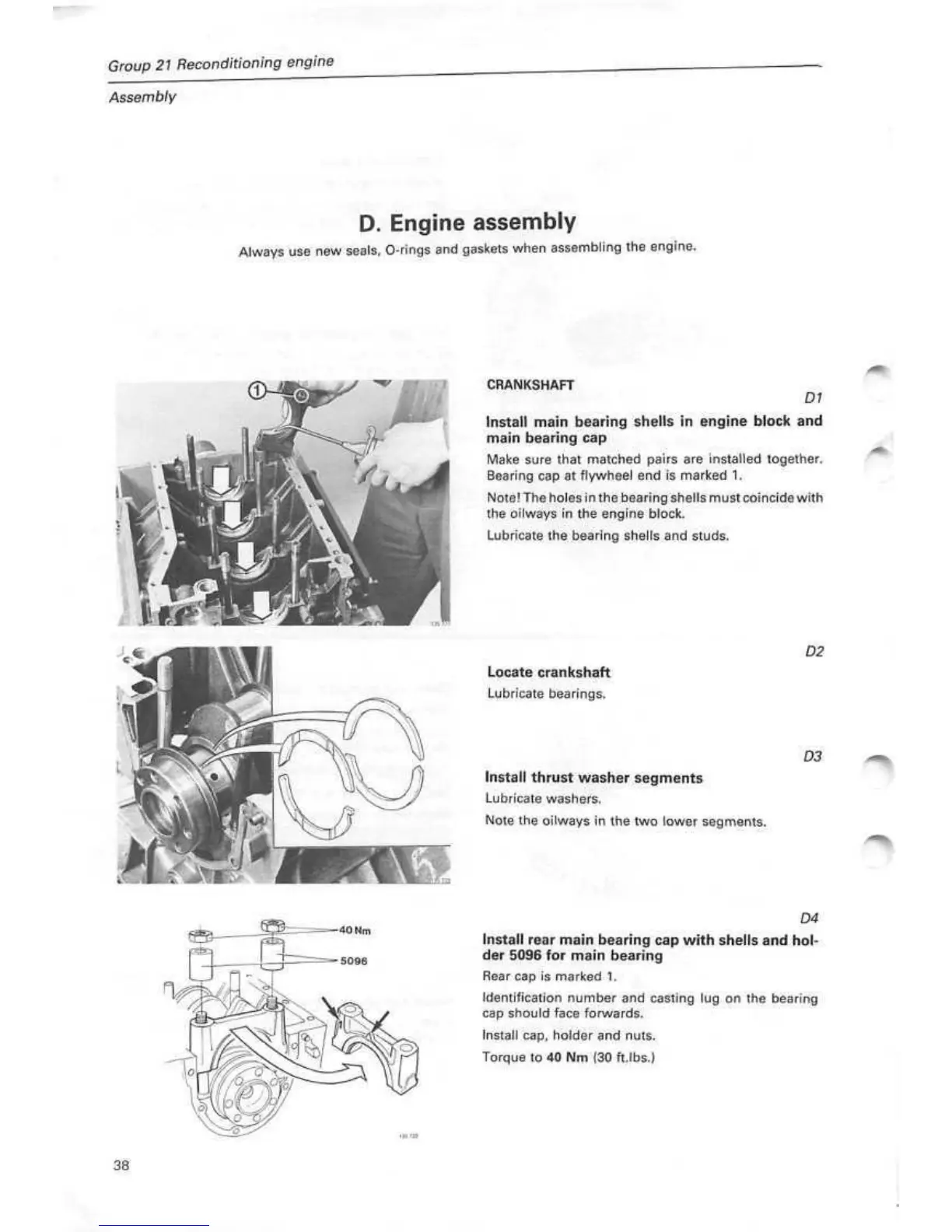

D. Engine assembly
Always use new seals,
O-rings
and gaskets when assembling the engine.
CRANKSHAFT
D1
Install main bearing shells in engine block and
main bearing cap
Make sure that matched pairs are installed together.
Bearing cap at flywheel end is marked 1.
Note!
The holes in the bearing shells must coincide with
the oilways in the engine block.
Lubricate the bearing shells and studs.
D2
Locate crankshaft
Lubricate bearings.
Install thrust washer segments
Lubricate washers.
Note the oilways in the two lower segments.
D3
D4
Install rear main bearing cap with shells and
hol-
der 5096 for main bearing
Rear cap is marked 1.
Identification number and casting lug on the bearing
cap should face forwards.
Install cap, holder and
nuts.
Torque to 40
Nm
(30 ft.lbs.)
38
