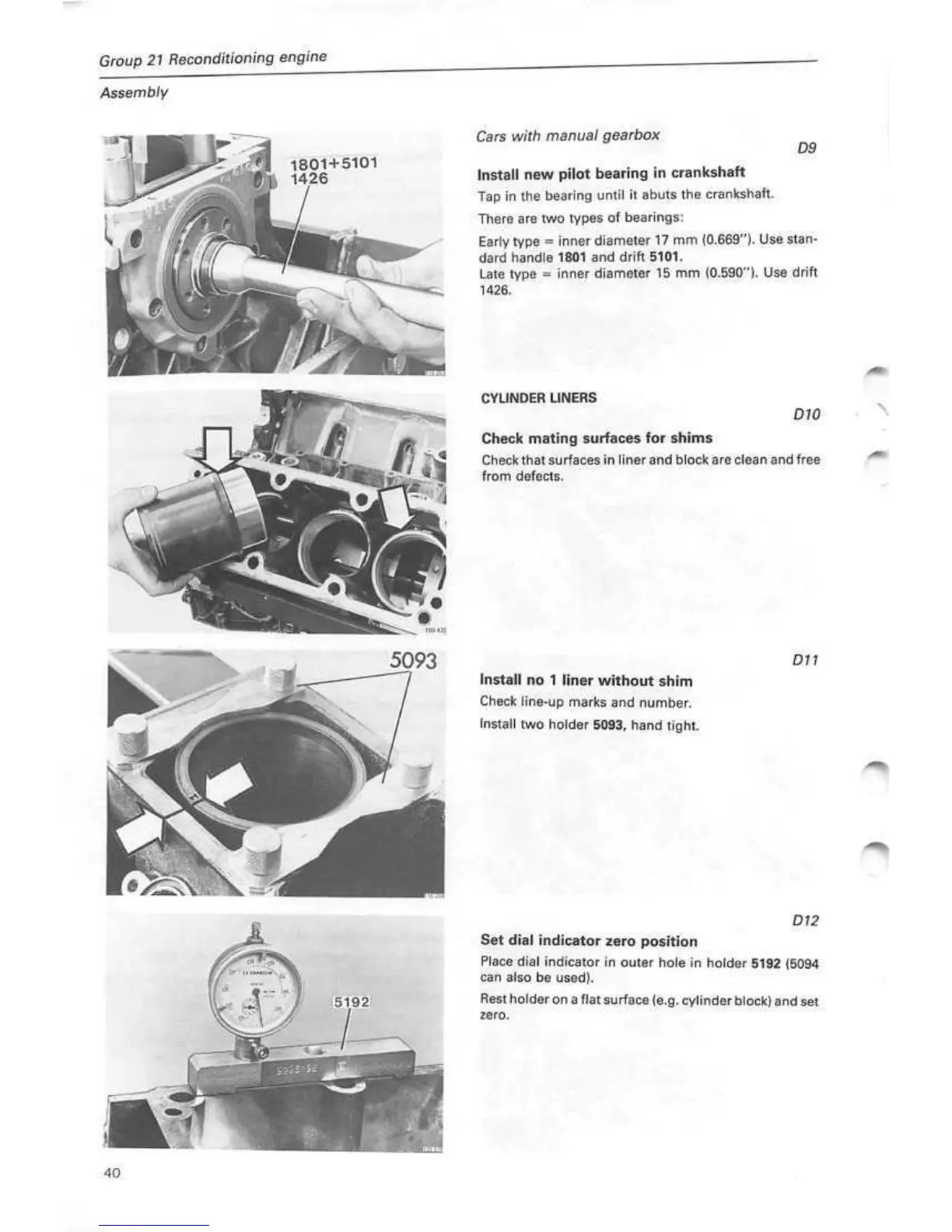

Group
21
Reconditioning engine
Assembly
1801 + 5101
Iti
1426
Cars with manual gearbox
D9
Install new pilot bearing in crankshaft
Tap in the bearing until it abuts the crankshaft.
There are two types of bearings:
Early type = inner diameter 17 mm (0.669"). Use
stan-
dard handle 1801 and drift 5101.
Late type = inner diameter 15 mm (0.590"). Use drift
1426.
CYLINDER LINERS
D10
Check mating surfaces for shims
Check that surfaces in liner and block are clean and free
from defects.
D11
Install no 1 liner without shim
Check line-up marks and number.
Install two holder
5093,
hand tight.
D12
Set dial indicator zero position
Place dial indicator in outer hole in holder 5192 (5094
can also be used).
Rest holder on a flat surface (e.g. cylinder block) and set
zero.
