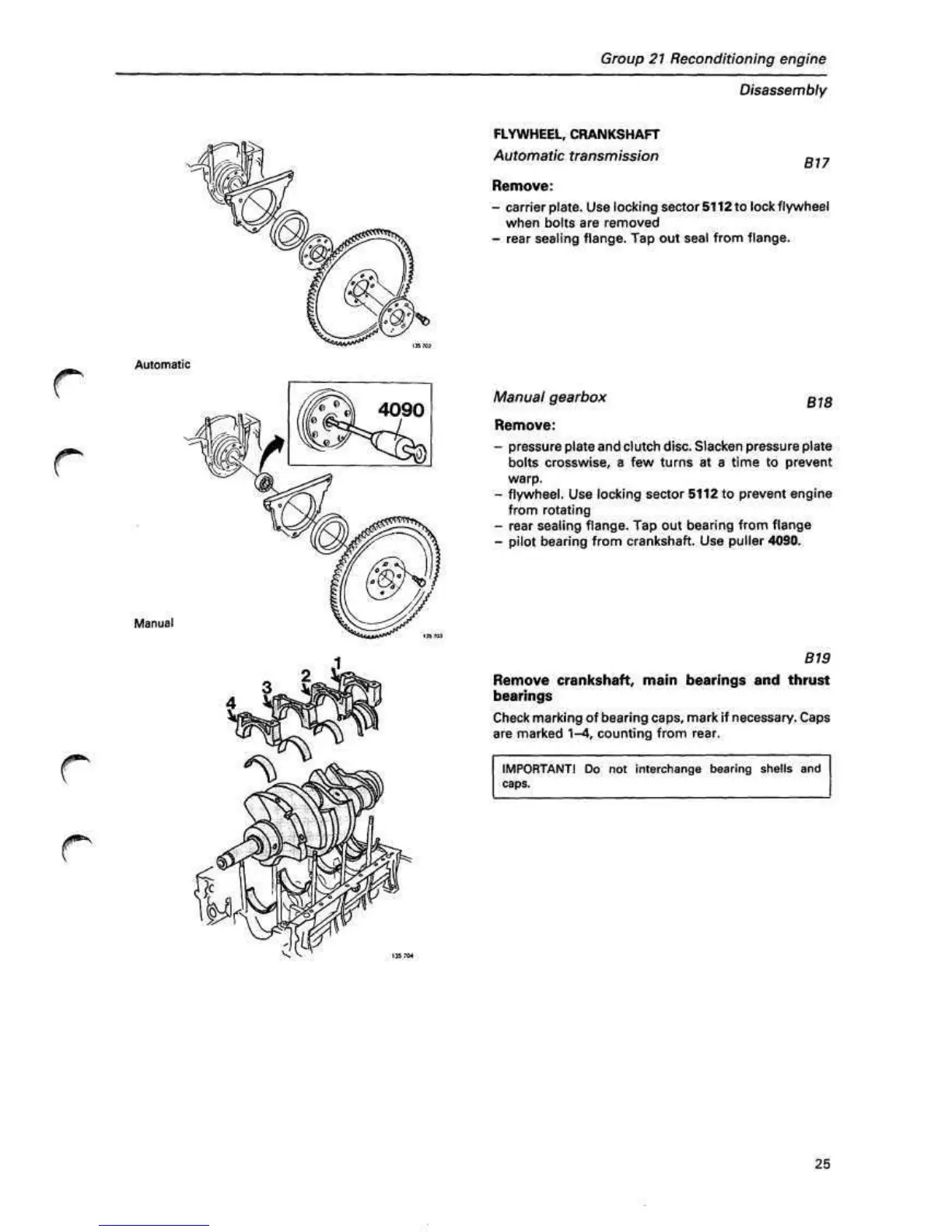

Group
21
Reconditioning engine
Disassembly
FLYWHEEL, CRANKSHAFT
Automatic transmission
Automatic
Manual
877
Remove:
- carrier plate. Use locking sector
5112
to lock flywheel
when bolts are removed
- rear sealing flange. Tap out seal from flange.
Manual gearbox
g-jg
Remove:
- pressure plate and clutch disc. Slacken pressure plate
bolts crosswise, a few turns at a time to prevent
warp.
- flywheel. Use locking sector 5112 to prevent engine
from rotating
- rear sealing flange. Tap out bearing from flange
- pilot bearing from crankshaft. Use puller 4090.
B19
Remove crankshaft, main bearings and thrust
bearings
Check marking of bearing caps, mark if necessary. Caps
are marked 1-4, counting from rear.
IMPORTANT! Do not interchange bearing shells and
caps.
25
