Group
21
Reconditioning engine
Cleaning, checking
5129
5092-6
5092-3
Kolvtapp
5092-4
C26

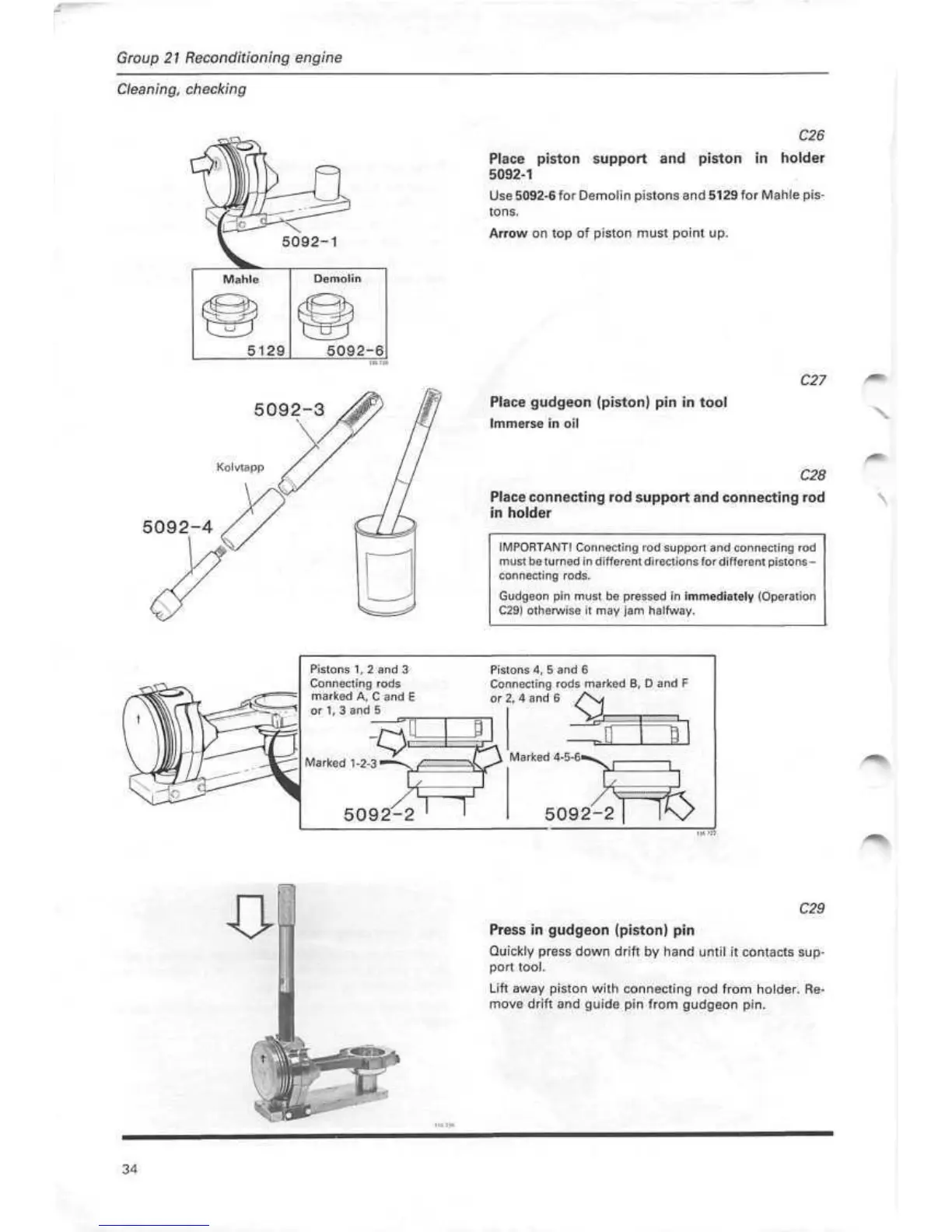

Place piston support and piston in holder
5092-1
Use 5092-6 for Demolin pistons and 5129 for Mahle pis-
tons.
Arrow on top of piston must point up.
C27
Place gudgeon (piston) pin in tool
Immerse in oil
C28
Place connecting rod support and connecting rod
in holder
IMPORTANT! Connecting rod support and connecting rod
must be turned in different directions for different pistons-
connecting rods.
Gudgeon pin must be pressed in immediately (Operation
C29) otherwise it may jam halfway.
Pistons 1, 2 and 3
Connecting rods
marked A, C and E
or
1,
3 and 5
^
Marked
1-2-3—-v^
Pistons 4, 5 and 6
Connecting rods marked B, D and F
or 2, 4 and 6
t>
<X
Marked 4-5-6
5092-2 '
!
5092-2
%
C29
Press in gudgeon (piston) pin
Quickly press down drift by hand until it contacts sup-
port
tool.
Lift away piston with connecting rod from holder. Re-
move drift and guide pin from gudgeon pin.
