Group
21
Reconditioning engine
Assembly
F. Engine, assembly

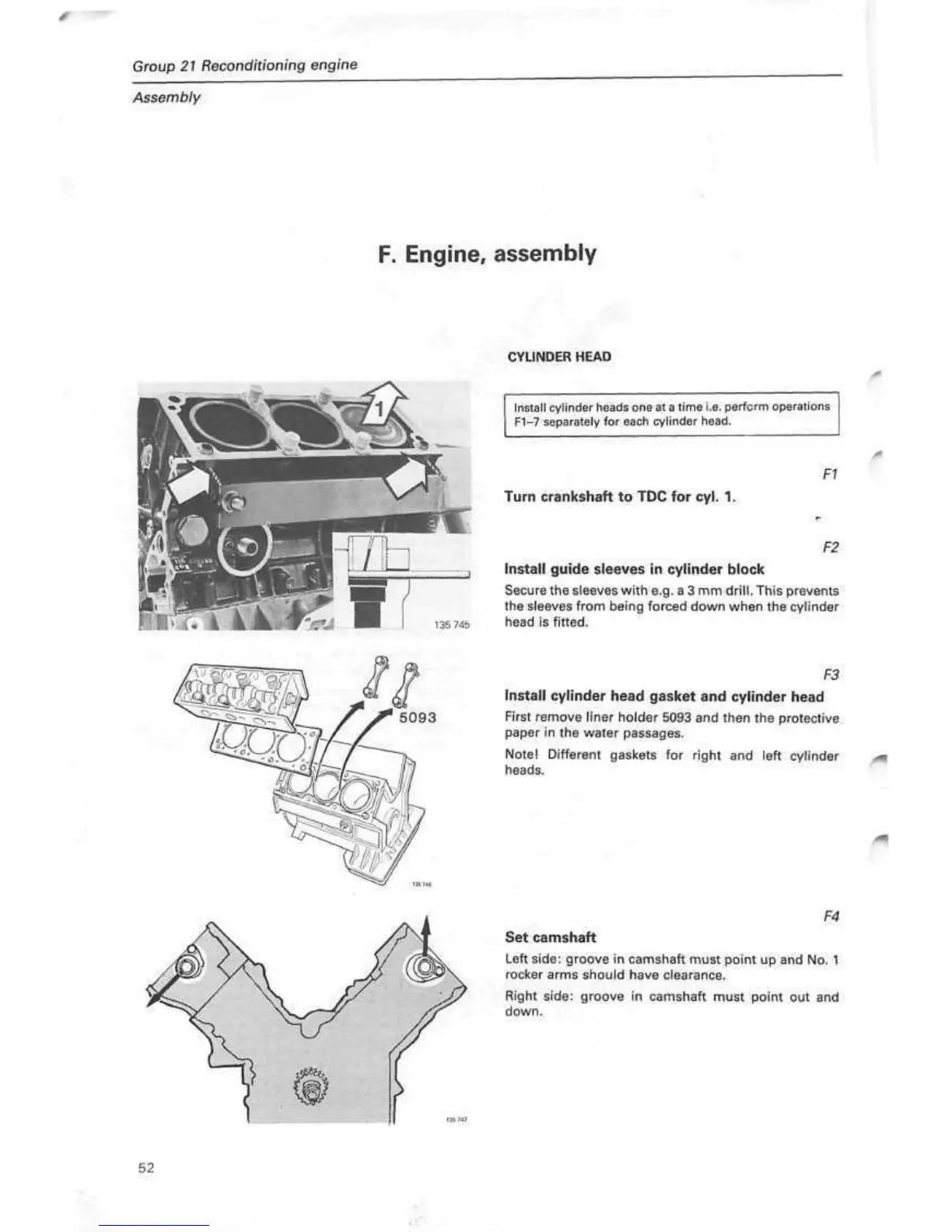

CYLINDER HEAD
Install cylinder heads one at
a
time i.e. perform operations
F1-7 separately for each cylinder head.
Turn crankshaft to TDC for
cyl.
1.
F1
F2
Install guide sleeves in cylinder block
Secure the sleeves with e.g. a 3 mm
drill.
This prevents
the sleeves from being forced down when the cylinder
head is fitted.
F3
Install cylinder head gasket and cylinder head
First remove liner holder 5093 and then the protective
paper in the water passages.
Note!
Different gaskets for right and left cylinder
heads.
F4
Set camshaft
Left side: groove in camshaft must point up and No. 1
rocker arms should have clearance.
Right side: groove in camshaft must point out and
down.
