Front underbody skid plate
Rear underbody skid plate, left
Rear underbody skid plate, right
Front cross member
Rear cross member
4. Remove the front and rear cross member. Weight: approx. 20 kg (44 lbs).
5. Loosen the oil drain bracket and move it aside. Secure it.
NOTE!
Take care of harmful waste oils and fluids in an environment-friendly way.

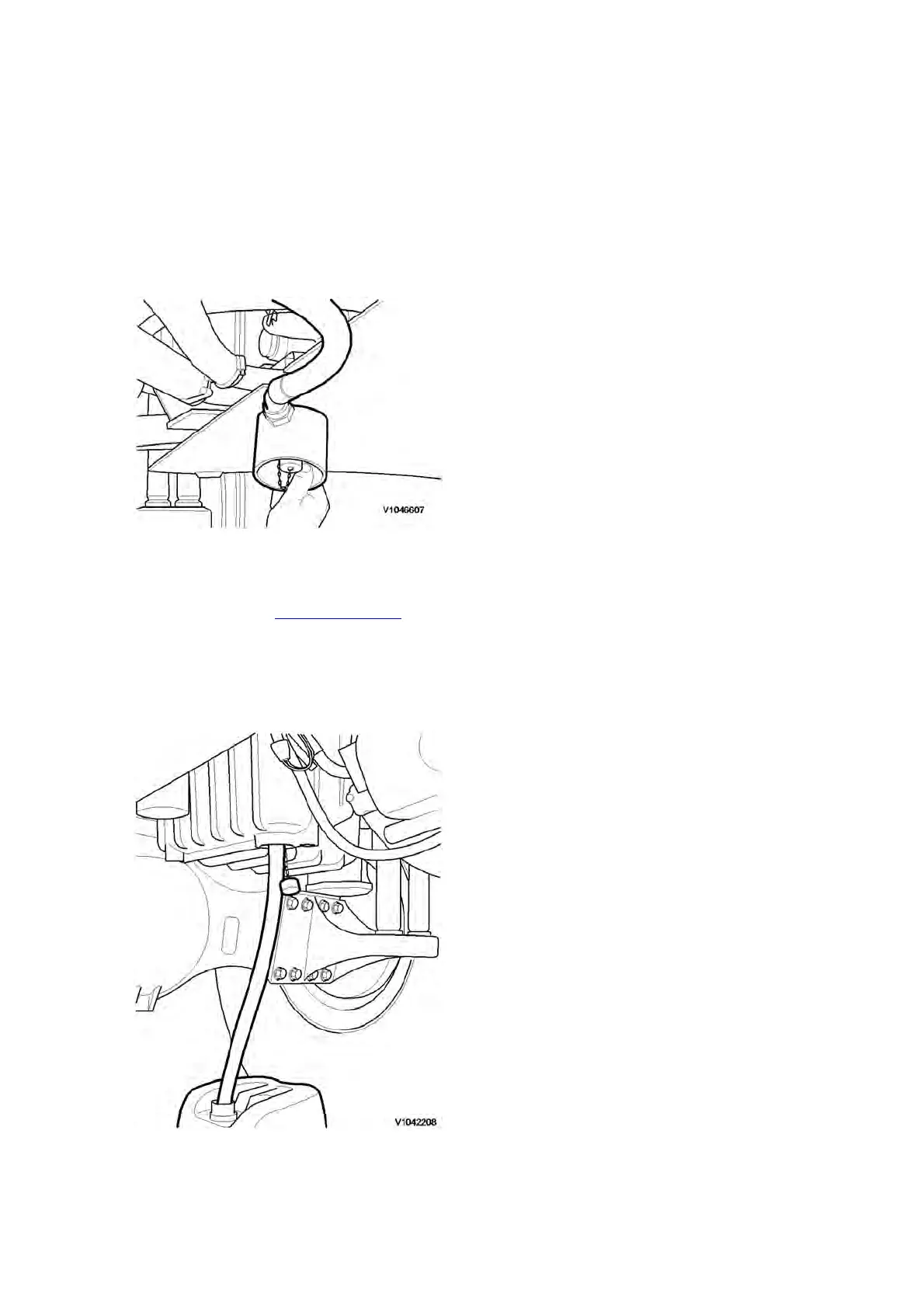

Figure 2
6. Drain the coolant, see:
173 Coolant, change
7. Put the drain hose in a suitable container. Connect the drain hose to the connection for draining the transmission.
Volume: approx. 36 litres (7.9 US gal)
NOTE!
The oil drain hose is inserted in the pipe for the ladder on the inside of the front grill.
Figure 3
8. Loosen the bolt and swing out the radiator.
