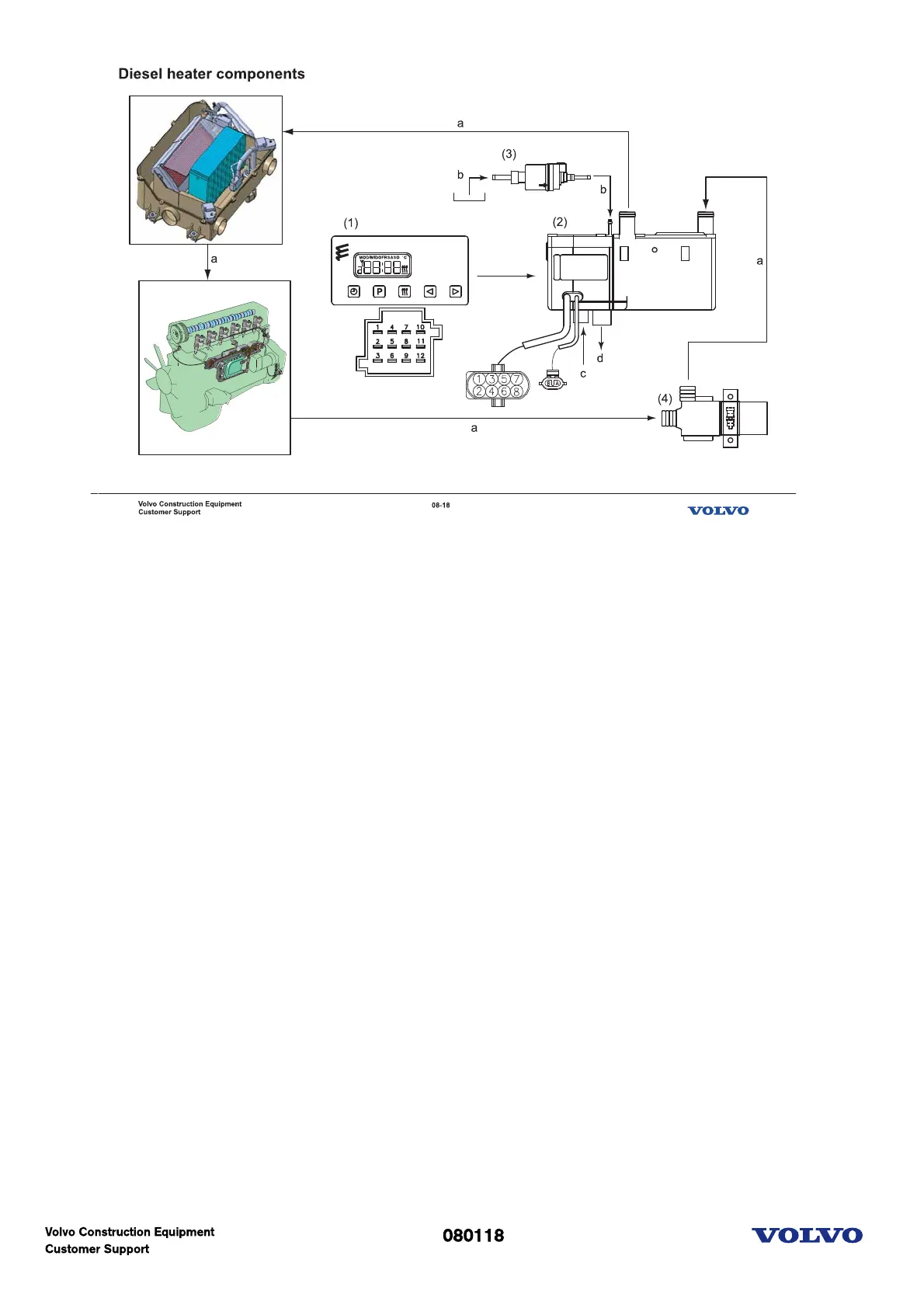

Diesel heater components
1. Timer
The timer controls the diesel heater, and displays the operating status. The display shows current date,
current time and operating time.
2. Controller & Heating unit
The heating unit raises the temperature of the coolant using the fuel combustion unit, consists of the glow
plug, the thermostats, the flame sensor, the controller, the electric motor and the fuse. The case of the
unit has the fuel supplying port, the coolant inlet/outlet port, the air inlet port and the exhaust port.
3. Fuel pump
The fuel pump supplies the diesel heater with the fuel from the tank.
4. Water pump
The water pump is located between the diesel heater and the engine block, and supplies the diesel heater
with the coolant from the engine block.
a: Water flow
b: Fuel
c: Fresh air
d: Exhaust gas
