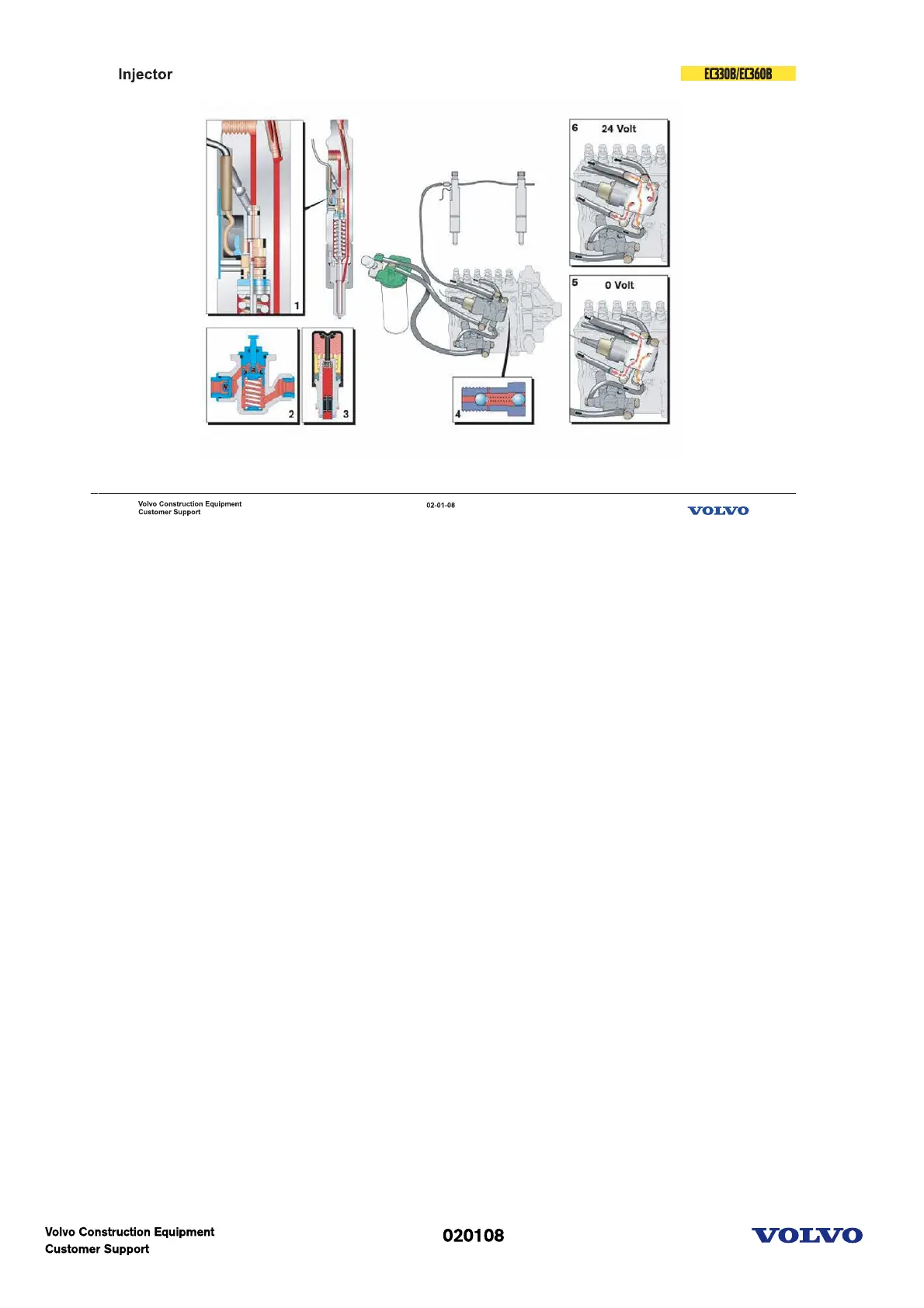

Fuel system-Injector
1 Needle movement sensor
2 Feed pump
3 Manual feed pump
4 Overflow valve
5 Fuel cut-off valve(Off condition)
6 Fuel cut-off valve(On condition)
