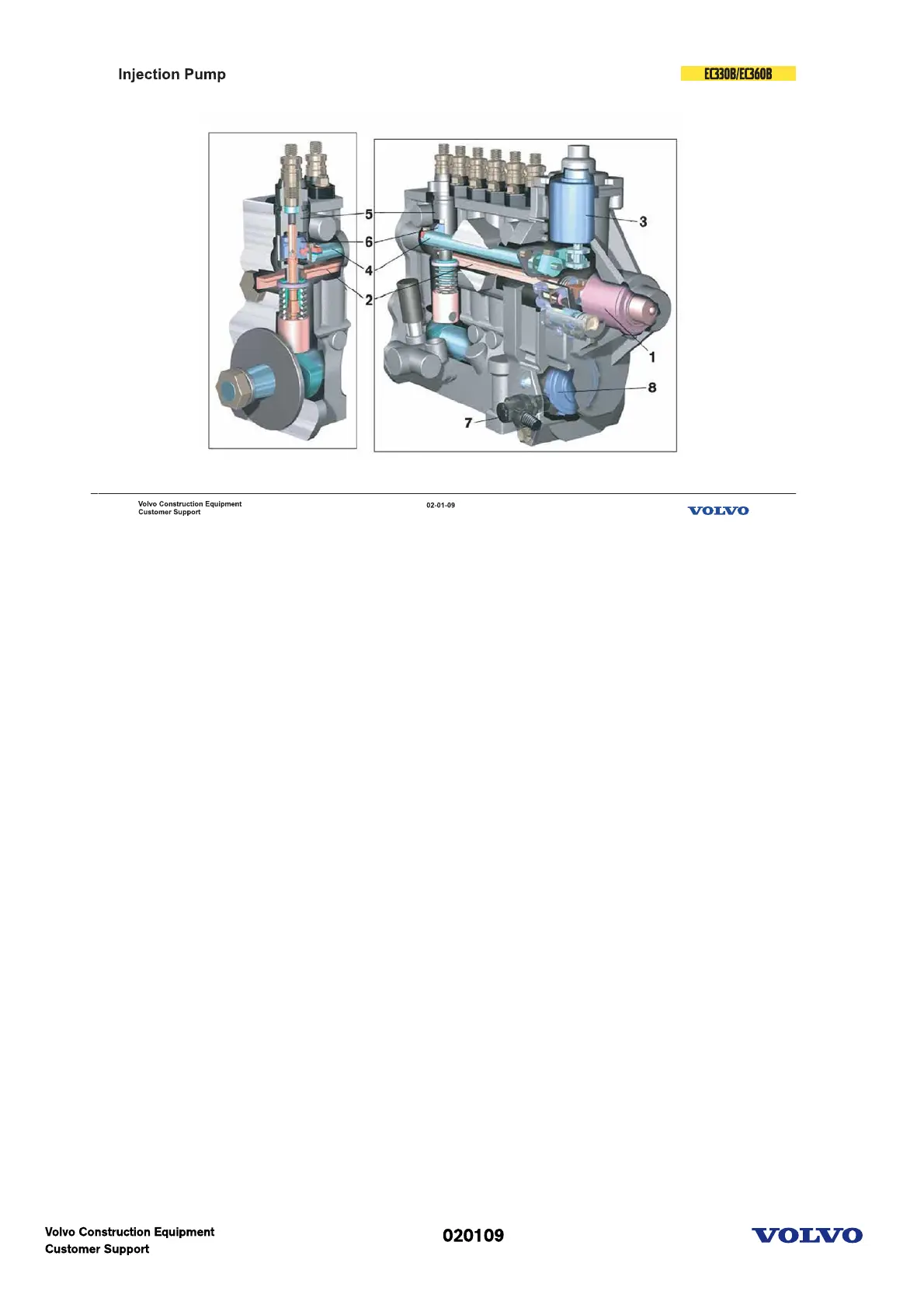

Fuel system-Injection pump
1 Fuel rack control solenoid
2 Fuel rack(injection quantity control)
3 Injection timing control solenoid
4 Lever
5 Delivery valve
6 Timing sleeve
7 Speed sensor
8 Toothed wheel
