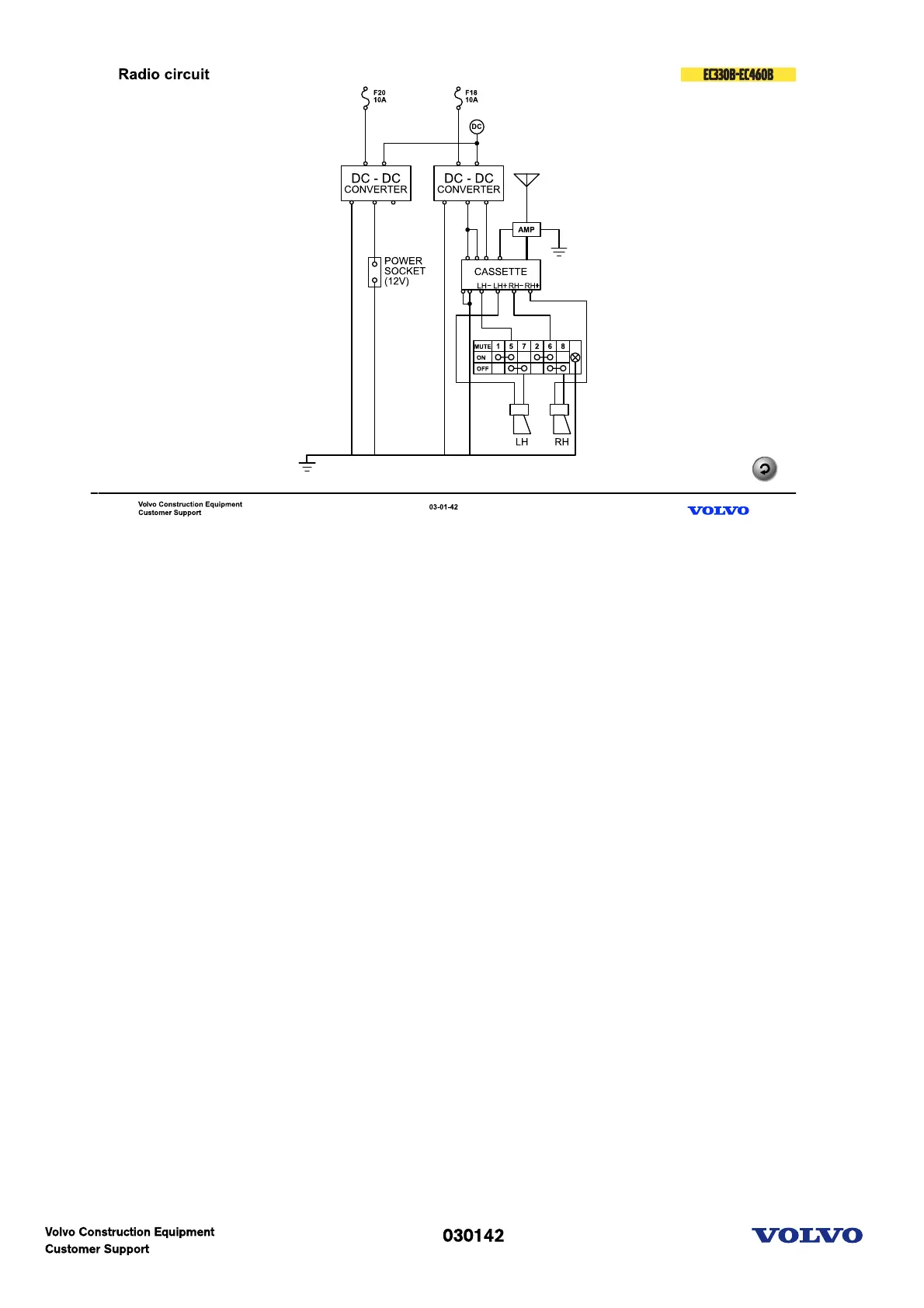

Radio circuit
Radio system uses 12V power. So we need DC-DC converter.
From DC-DC converter, 2 lines are used for operating power and 1 line is used for frequency memory
function.
If the cassette mute switch is installed and turned to ON, the speaker is cut off even when the cassette
power is ON.
