Tiltrotator control system, description
(optional equipment)
Controls
LR
16
V1182188
5
3
4
1
6
7
8
10
15
2
17
13
14
9
11
12

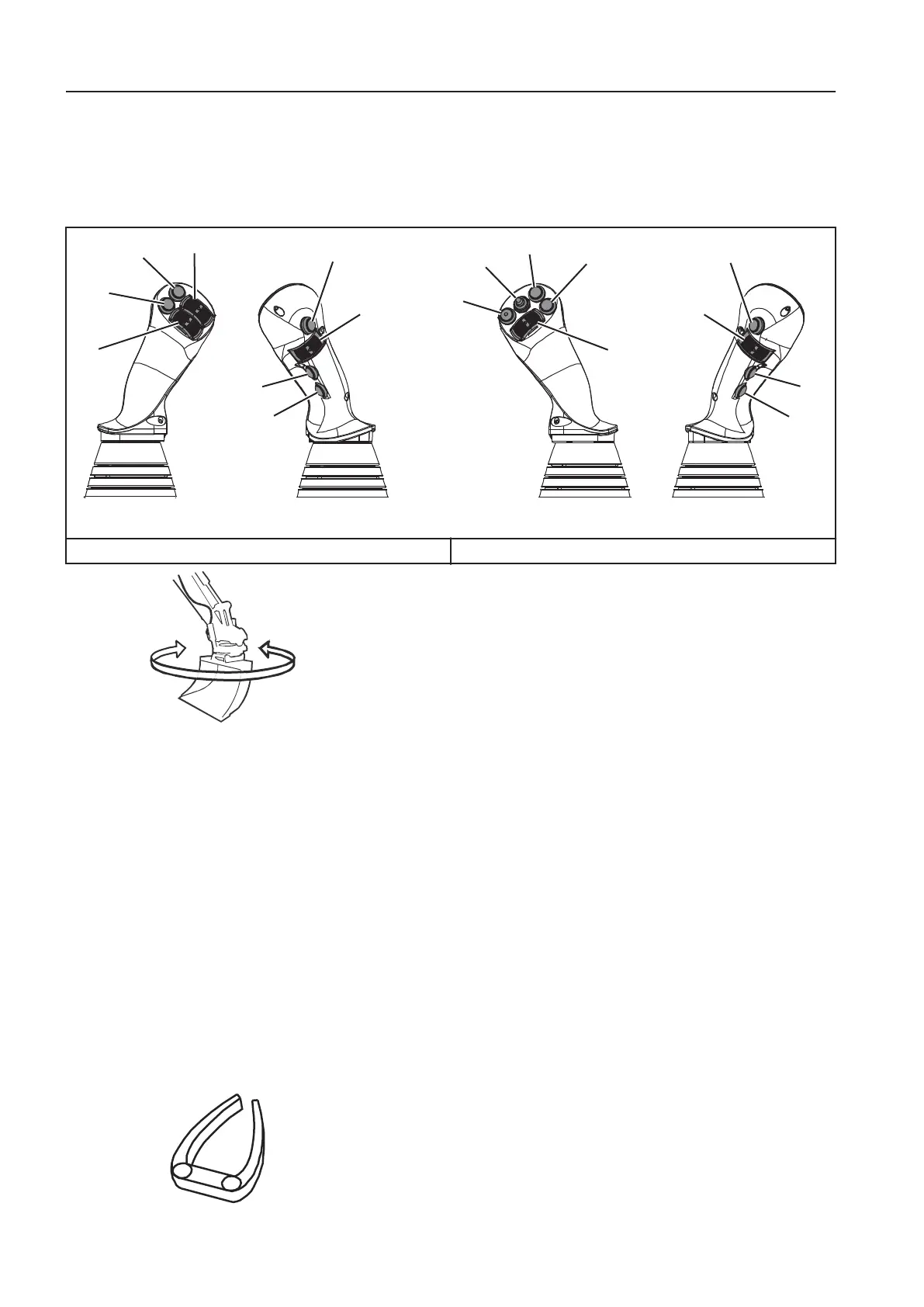

Left control lever (L8–5) Right control lever (L8–5)
1X
X3 left / right / rotate
Drag the slider to the right to turn the tiltrotator clockwise.
The more you drag the slider, the faster the attachment will
rotate.
The maximum rotation speed for the tiltrotator can be adjusted
in the Setup menu, see page
58 .
Depending on the setting in the setup menu you can have a
Toggle or Push function activated on the button, see page
79 .
2H
Horn
Press the button to sound the horn.
3P
Pivot axle locking
For details see page
150 .
4A
Additional hydraulics (Volvo X-Function / Steelwrist AU
X
X)
For details about Volvo X-Function see page
58 .
The Steelwrist AUX speed to the left and to the right can be
adjusted in the Setup menu, see page 58 . For details about
Steelwrist AUX see Steelwrist manual.
5J
Joystick controlled support (optional equipment)
For details see page
34 .
6C
CDC (optional equipment)
For details see page
161 .
7U
Unassigned
8U
Unassigned
9U
Unassigned
