Volvo EW180E - Page 97

2

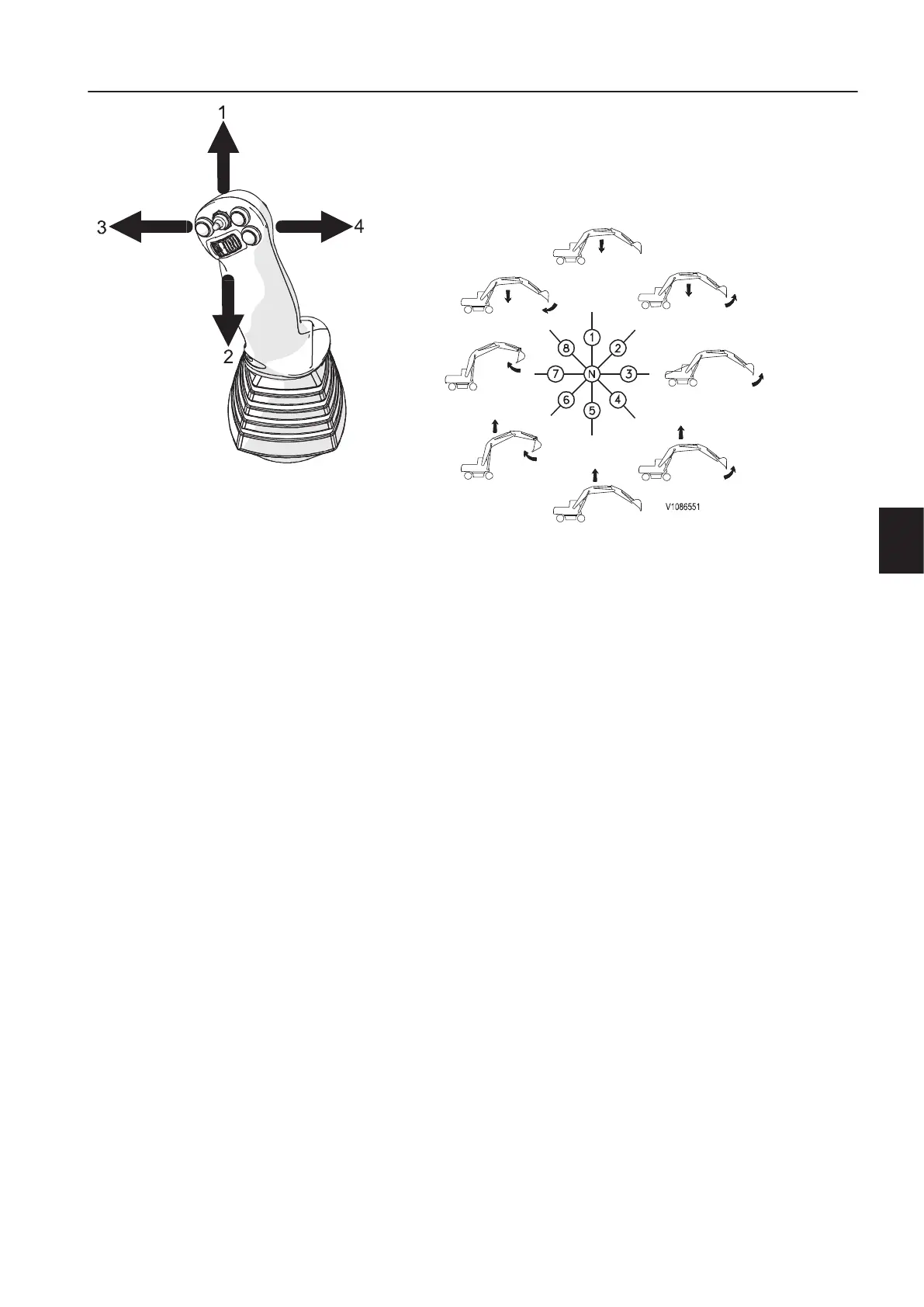

2. R ight control lever with SAE (ISO)
This lever is used for operating the boom and bucket. Combined
movements are obtained if the control lever is moved to positions
between the ordinary positions. For example, moving the lever to
position 6, see below, results in raised boom and bucket in.
N Neutral (superstructure and dipper arm in neutral position)
1. Lower boom
2. Lower boom and bucket out
3. Bucket out
4. Raise boom and bucket out
5. Raise boom
6. Raise boom and bucket in
7. Bucket in
8. Lower boom and bucket in
V1193101
Right control lever
1 Lower boom
2 Raise boom
3 Bucket in
4 Bucket out
