Group 28 Design and Function
ABS Brake System ECU
W5000669
The ABS ECU continuously monitors wheel speed and
helps to control braking in exterme situations. It also
helps prevent wheel spin in vehicles equipped with trac-
tion control systems (ATC or TCS).
The ABS ECU is connected to the J1939 control data
link and the J1587/1708 information data link.
Note: Early production model ABS ECUs may be con-
nected to the J1587/1708 and J1922 data link or have
no data link connection at all.
For detailed information about ABS systems see the ap-
propriate service literature for the type of ABS system
used on the vehicle.

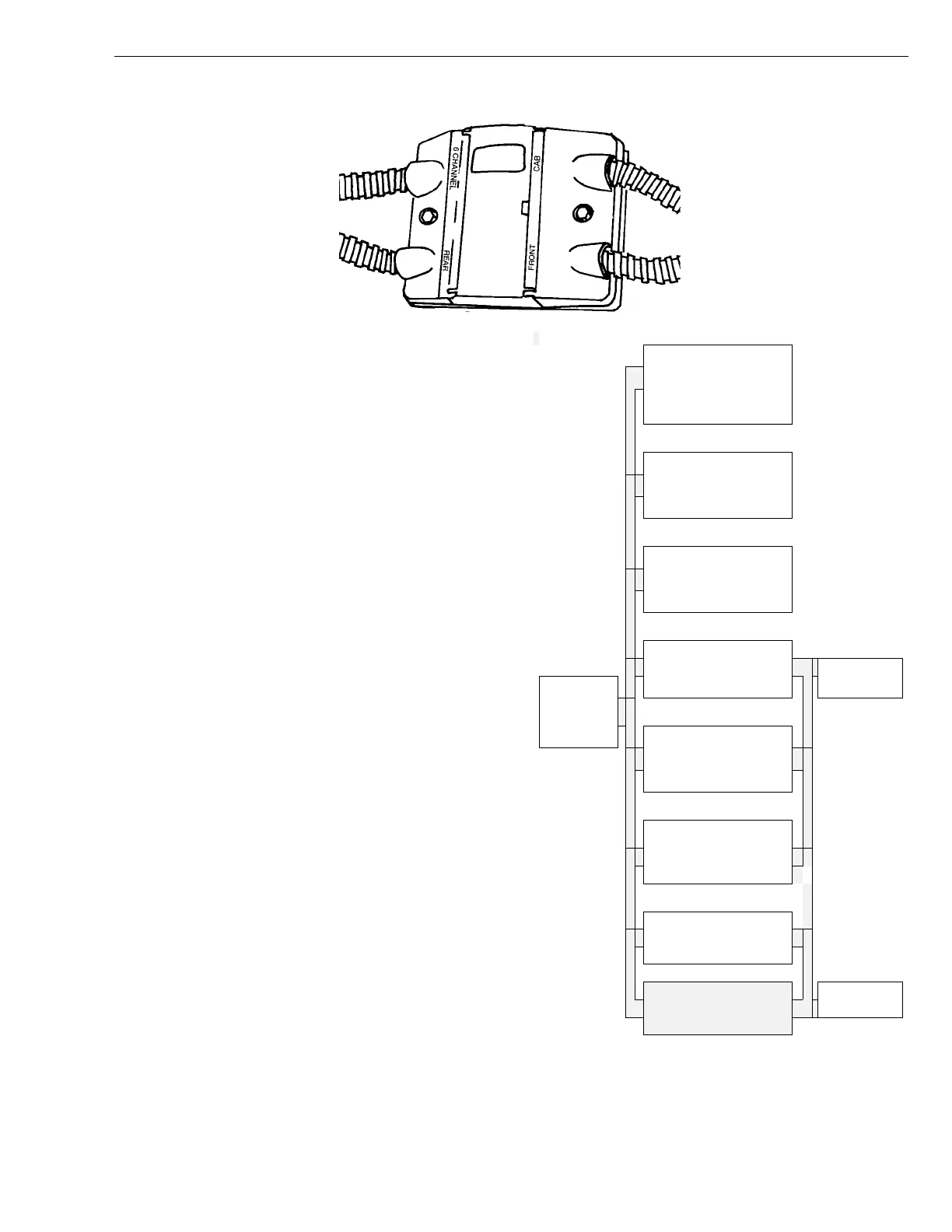

Communication
Equipment
(Expansion
capability)
Instrument Cluster
MIDs 234 & 140
SRS ECU
MID 232
Engine ECU
MID 128
Terminating
Resistor
Diagnostic
connector
Vehicle ECU
MID 144
SAE J1587
/1708
SAE J1939
Transmission ECU
MID 130
Control unit
(Expansion
capability)
Terminating
Resistor
ABS ECU
MID 136
